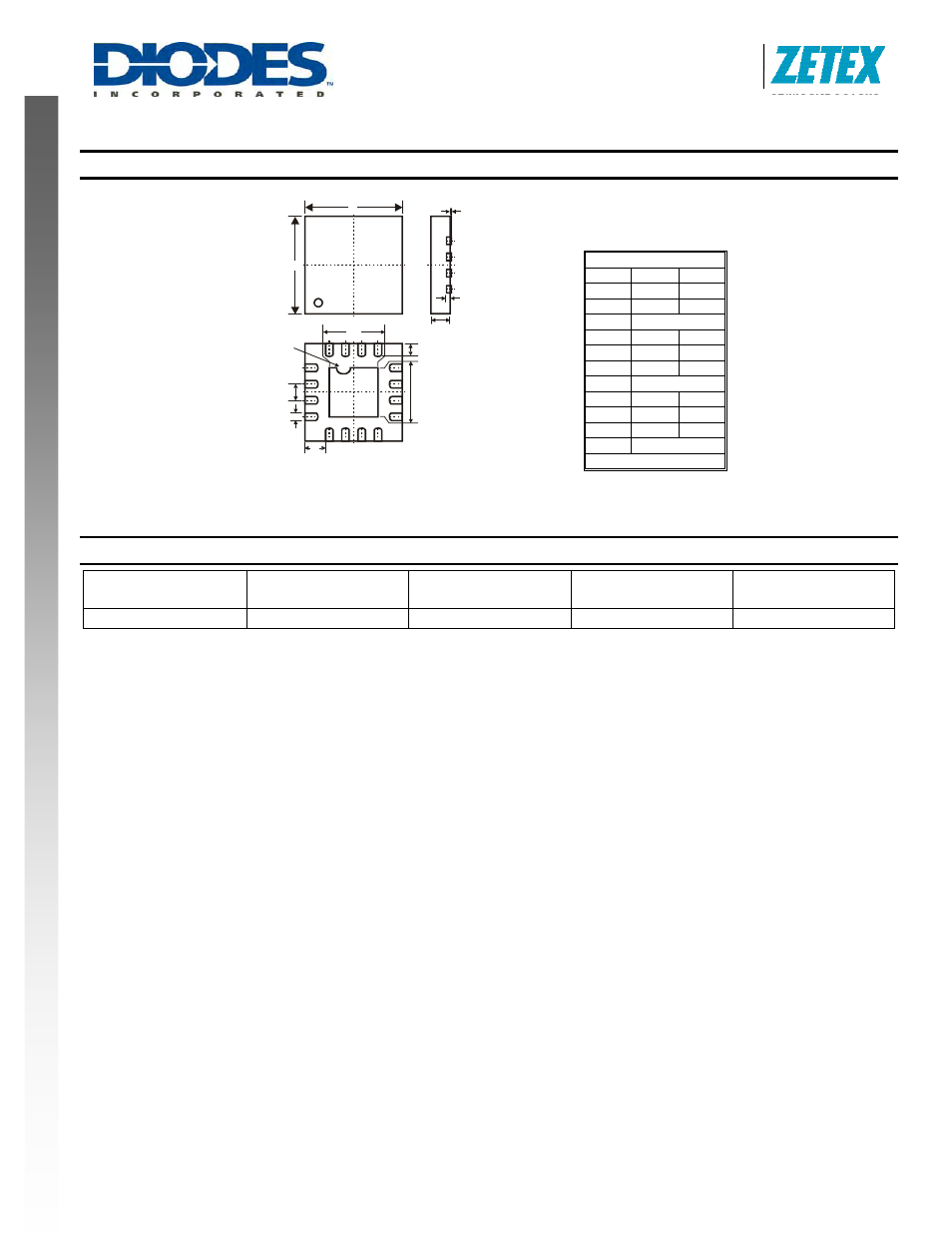

Package Outline Dimensions
Note: Controlling dimensions are in millimeters. Approximate dimensions are provided in inches.
The package appearance may vary as shown, for further details please contact your local Diodes sales office.
Ordering Information
(Note x)
Device Package
Reel Size
(inches)
Tape Width
(mm)
Quantity
(per reel)
ZLNB2016JA16TC QFN1633 13 8 3000
QFN16 3x3
Dim Min Max
A 0.55 0.65
A1 0.00 0.05
A3 0.15 Typ
b 0.18 0.28
D 2.95 3.05
D2 1.40 1.60
e 0.50 BSC
E 2.95 3.05
E2 1.40 1.60
L 0.35 0.45
Z 0.625 Typ
All Dimensions in mm
E
D
E2
e
b
Z
D2
L
A
A3
A1
Pin #1 ID
