STANDARD DBS DUAL CHANNEL VOLTAGE AND TONE DETECTOR
Summary
The ZLNB2016 is a dual channel polarisation (voltage) and band select (tone) detector IC, primarily for satellite applications such
as Low Noise Blocks (LNBs) and satellite distribution systems. An optimised design provides a low supply current and a wide
operating voltage whilst increasing performance and reliability. The ZLNB2016 offers excellent interference rejection with
minimal application cost and packaged in the 3x3mm QFN it provides a very small solution.
Features
• Two polarisation voltage detectors
• Two robust, interference tolerant 22kHz tone detection
(without external signal filtering)
• “No Receiver” detect function for power saving and
isolation control
• Low quiescent supply current, 2mA typical
• Wide operating supply voltage 3V to 8V
• Low external component count minimises application
cost
• True and inverted outputs to support popular multiplexer
ICs

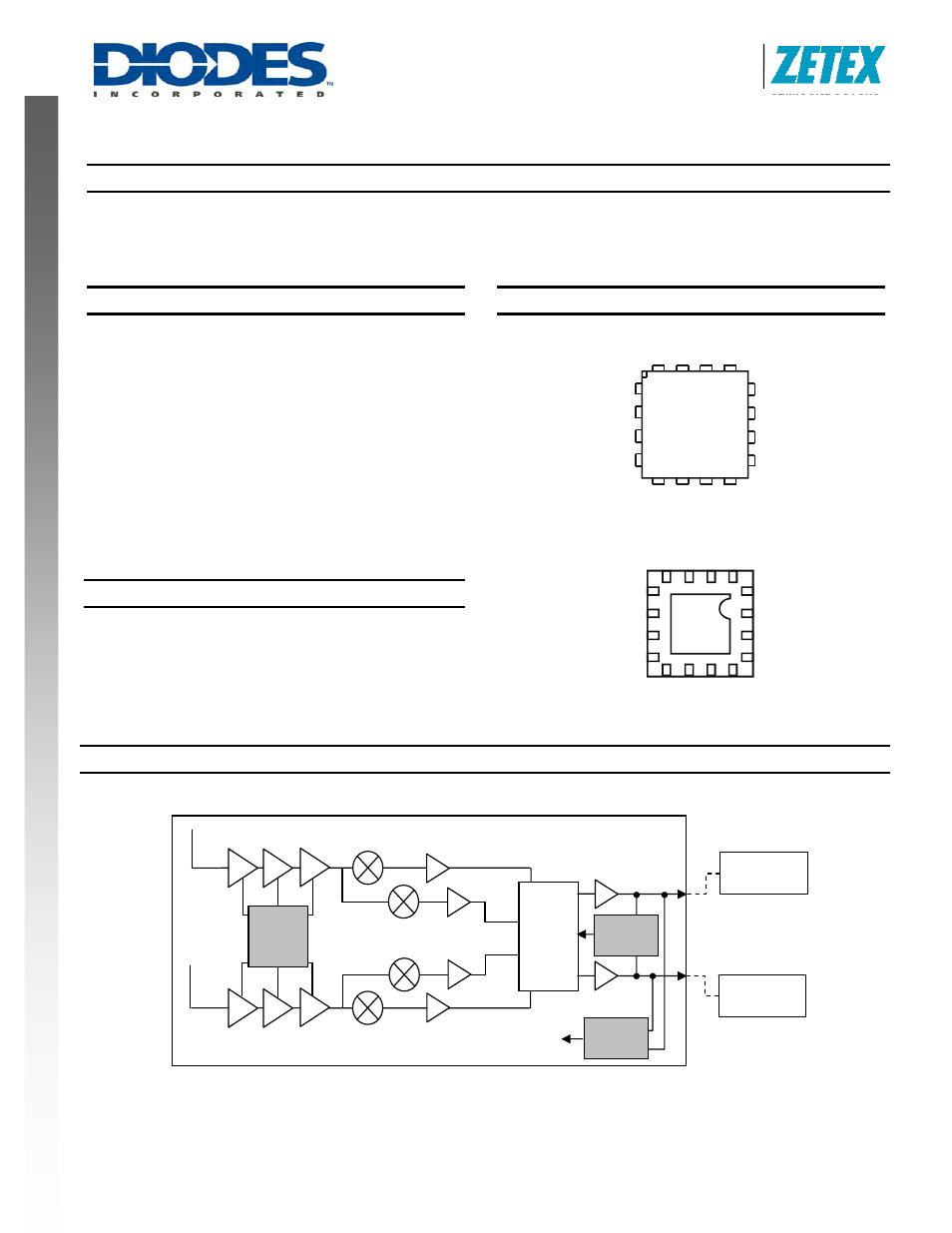

Pin Assignments
Application
•
Twin Universal LNBs
•
Quad Universal LNBs
•
Multi Output LNBs
• Satellite
Multi-Switches
Twin Universal LNB System Diagram
Top View
Bottom View
BTD1
BTD2
TD2
FIN1
TD1
VC
C
VPOL2
FIN2
VPOL1
EN
A
1
HO
R1
BH
O
R
1
EN
A
2
GN
D
HO
R2
B
H
OR
2
GND
4x2
MUX
ZLPM
Series
Vout
IF Gain IF Switching IF Gain,
LNB Control &
Power Mgt.
Down
Conversion
Set-top box
Receiver 1
Set-top box
Receiver 2
ZABG
Series
ZLNB
2016
RF Gain Stages
GaAs FET’s
