TL431/TL432
ADJUSTABLE PRECISION SHUNT REGULATOR
TL431 *SO-8 is a future package
Document number: DS35044 Rev. 6 - 2
12 of 14
www.diodes.com
April 2012
© Diodes Incorporated

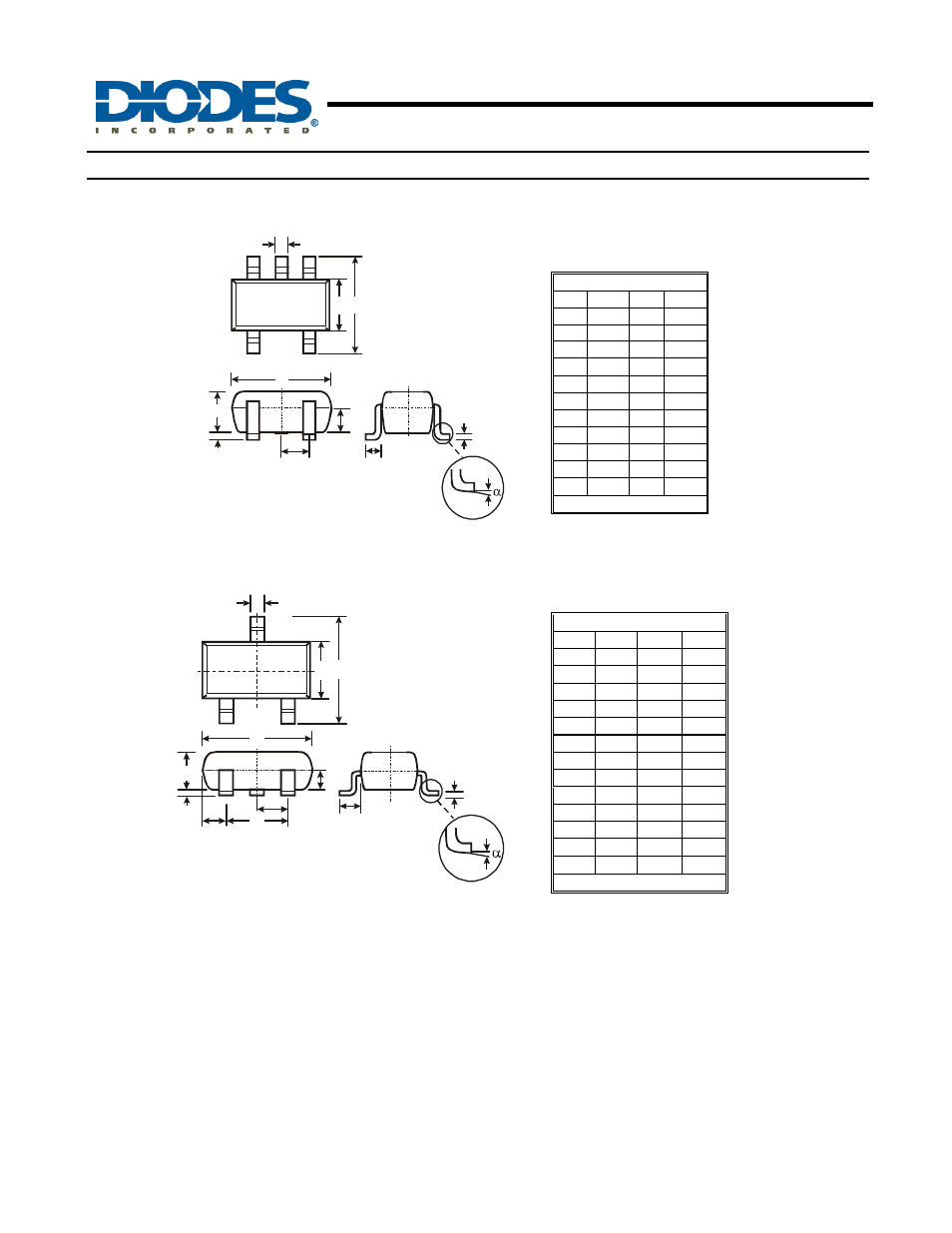

Package Outline Dimensions (All Dimensions in mm)
(1) Package type: SOT25
(2) Package Types: SOT23
SOT25
Dim Min Max Typ
A 0.35 0.50 0.38
B 1.50 1.70 1.60
C 2.70 3.00 2.80
D
⎯ ⎯ 0.95
H 2.90 3.10 3.00
J 0.013 0.10 0.05
K 1.00 1.30 1.10
L 0.35 0.55 0.40
M 0.10 0.20 0.15
N 0.70 0.80 0.75
α 0° 8° ⎯
All Dimensions in mm
SOT23
Dim Min Max Typ
A 0.37 0.51 0.40
B 1.20 1.40 1.30
C 2.30 2.50 2.40
D 0.89 1.03 0.915
F 0.45 0.60 0.535
G 1.78 2.05 1.83
H 2.80 3.00 2.90
J 0.013 0.10 0.05
K 0.903 1.10 1.00
K1 - - 0.400
L 0.45 0.61 0.55
M 0.085 0.18 0.11
α 0° 8° -
All Dimensions in mm
A
M
J
L D
B C
H
K
N
A
M
J L
D
F
B C
H
K
G
K1
