TL431/TL432
ADJUSTABLE PRECISION SHUNT REGULATOR
TL431 *SO-8 is a future package
Document number: DS35044 Rev. 6 - 2
1 of 14
www.diodes.com
April 2012
© Diodes Incorporated
Description
The TL431 and TL432 are three terminal adjustable shunt
regulators offering excellent temperature stability and output
current handling capability up to 100mA. The output voltage
may be set to any chosen voltage between 2.5 and 36 volts
by selection of two external divider resistors.
The devices can be used as a replacement for zener diodes
in many applications requiring an improvement in zener
performance. Diodes’ TL431 has the same electrical
specifications as the industry standard ‘431 and is available
in 2 grades with initial tolerances of 1% and 0.5% for the
A and B grades respectively.
Features
• Temperature range -40 to +125ºC
• Reference Voltage Tolerance at 25°C
• TL431A:
2.495V ± 1.0%
• TL431B:
2.495V ± 0.5%
• Low Output Noise
• 0.2Ω Typical Output Impedance
• Sink Current Capability: 1mA to 100mA
• Adjustable Output Voltage: V
REF
to 36V
• All devices are:
•
Totally Lead-Free & Fully RoHS compliant
(Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device
(Note 3)
Applications
• Opto-Coupler
Linearisers
• Shunt
Regulators
• Improved
Zener
• Variable
Reference

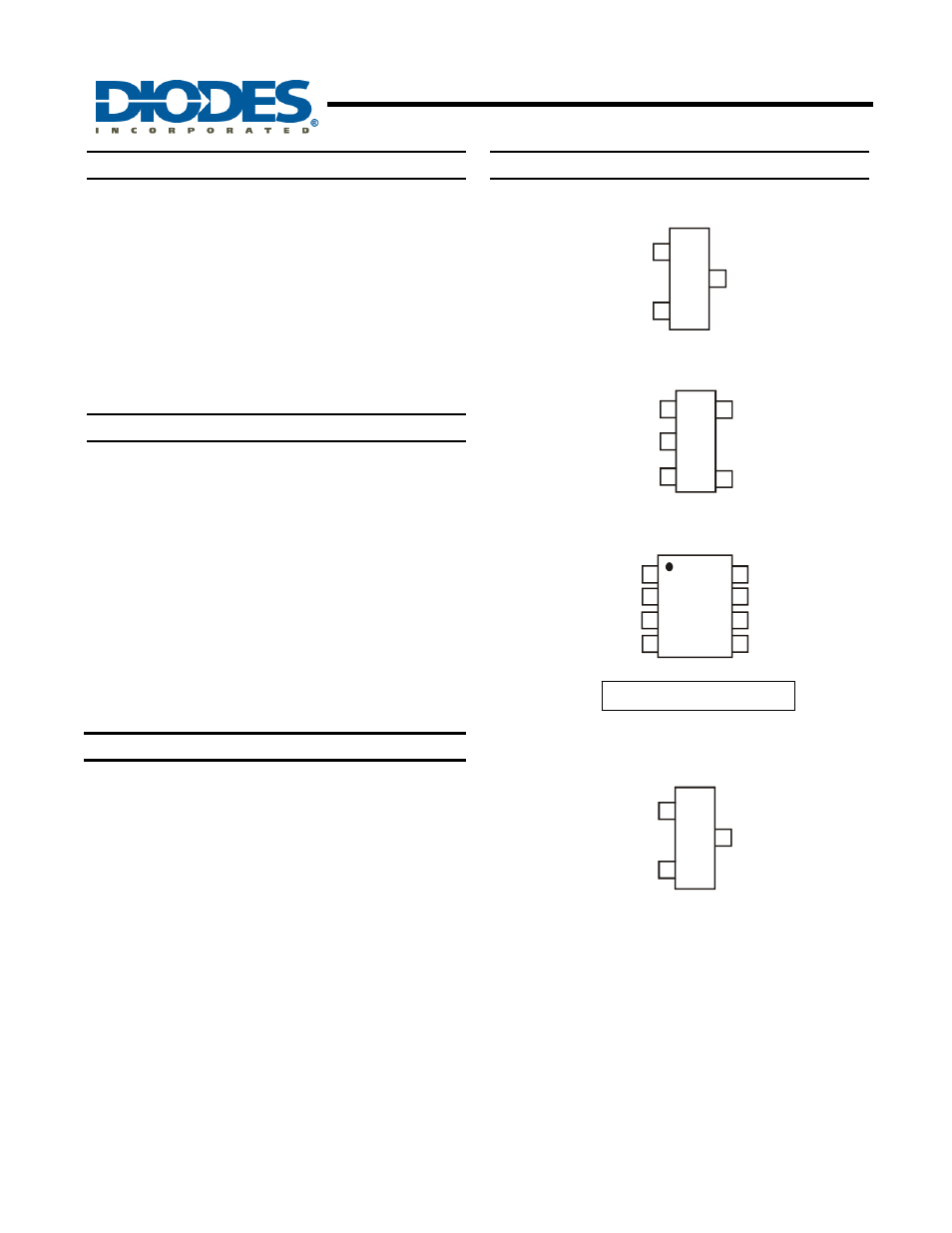

Pin Assignments
TL431
ANODE
REF
CATHODE 1
3
2
(Top View)
SOT23
ANODE
REF CATHODE
NC
Leave floating or
connect to pin 5
2
3 4
5
(Top View)
SOT25
ANODE
ANODE
REF
NC
ANODE
ANODE
NC
CATHODE 1
2
3
4
8
7
6
5
(Top View)
SO-8
TL432
ANODE
REF
CATHODE
1
3
2
(Top View)
SOT23
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen and Antimony free,
"Green" and Lead-Free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
SO-8 is a future product
