ZM33164-3
DEVICE DESCRIPTION
The ZM33164-3 is a three terminal under
v o l t a g e m o n i t or c ir c ui t fo r u s e i n
microprocessor systems. The threshold
voltage of the device has been set to 2.68
volts making it ideal for 3 volt circuits.
Included in the device is a precise voltage
reference and a comparator with built in
hysteresis to prevent erratic operation. The
ZM33164-3 features an open collector output
capable of sinking at least l0mA which only
r equires a single external resistor to
interface to following circuits.
Operation of the device is guaranteed from
one volt upwards, from this level to the
device threshold voltage the output is held
low providing a power on reset function.
Should the supply voltage, once established,
at any time drop below the threshold level
then the output again will pull low.
The device is available in a TO92 package for
through hole applications as well as SOT223
for surface mount requirements.
FEATURES
•
SOT223 and TO92 packages
•
Power on reset generator
•
Automatic reset generation
•
Low standby current
•
Guaranteed operation from 1 volt
•
Wide supply voltage range
•
Internal clamp diode to discharge delay
capacitor
•
2.68 volt threshold for 3 volt logic
•
60mV hysteresis prevents erratic operation
APPLICATIONS
•
Microprocessor systems
•
Computers
•
Computer peripherals
•
Instrumentation
•
Automotive
•
Battery powered equipment

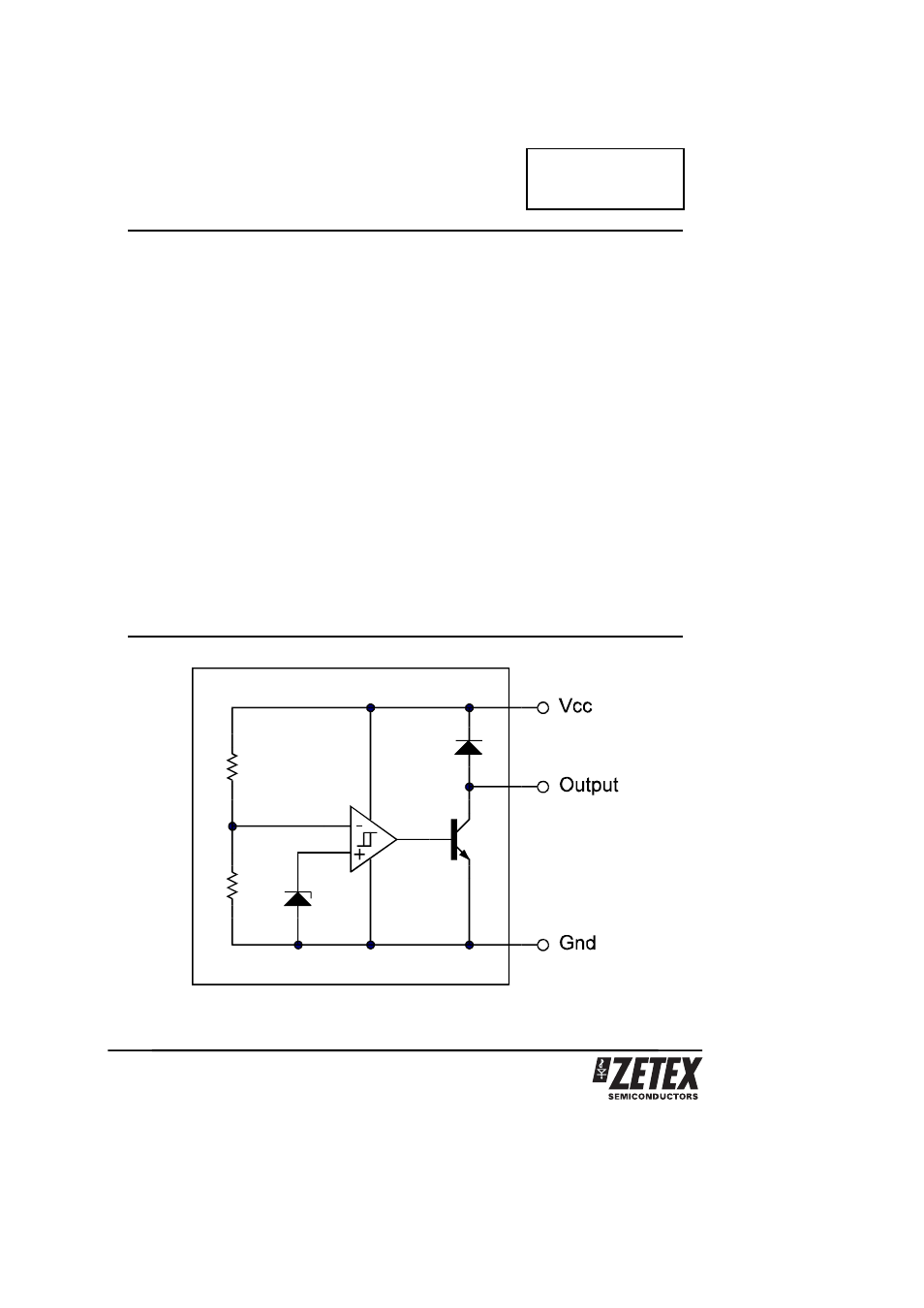

SCHEMATIC DIAGRAM
