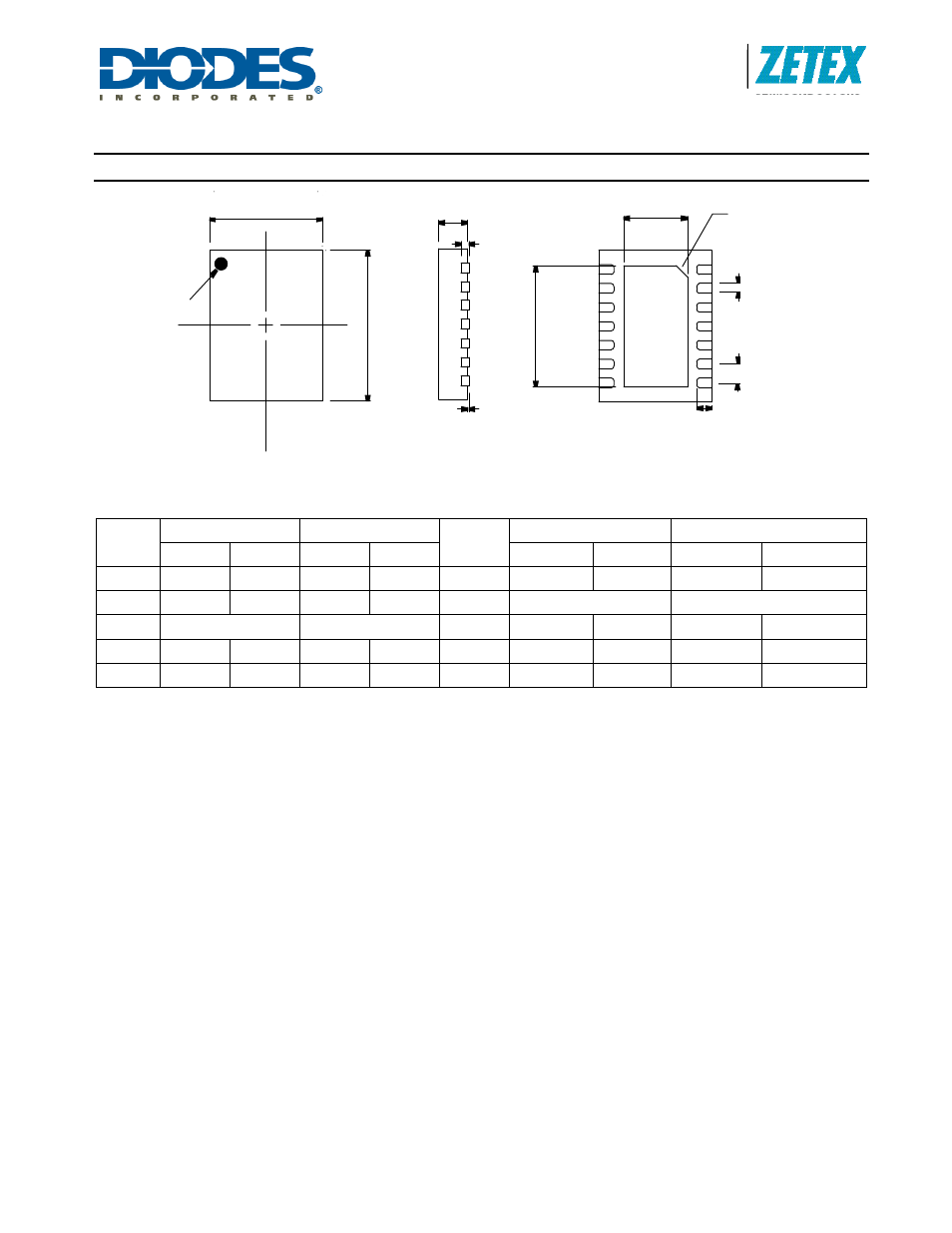

Package Outline – DFN4030-14
DIM Inches Millimeters DIM Inches Millimeters
Min Max Min Max Min Max Min Max
A 0.0315 0.0354 0.80 0.90 D2 0.1240 0.1279 3.15 3.25
A1 0.00 0.002 0.00 0.05 e 0.0197 BSC 0.50 BSC
A3 0.008 REF. 0.203 REF. E 0.1161 0.1201 2.95 3.05
b 0.0079 0.0118 0.20 0.30 E2 0.0650 0.0689 1.65 1.75
D 0.1555 0.1594 3.95 4.05 L 0.0138 0.0177 0.35 0.45
Note: Controlling dimensions are in millimeters. Approximate dimensions are provided in inches
E
D
A
A1
A3
D2
b
e
L
E2
PIN 1 DOT
BY MARKING
CHAMFER 0.300 X 45°
PIN #1 IDENTIFICATION
