Ordering Information
Part Number Package Part Mark
Tape Width
(mm)
Quantity
(per reel)
ZXLD383ET5TA TSOT23-5 383 8 3000

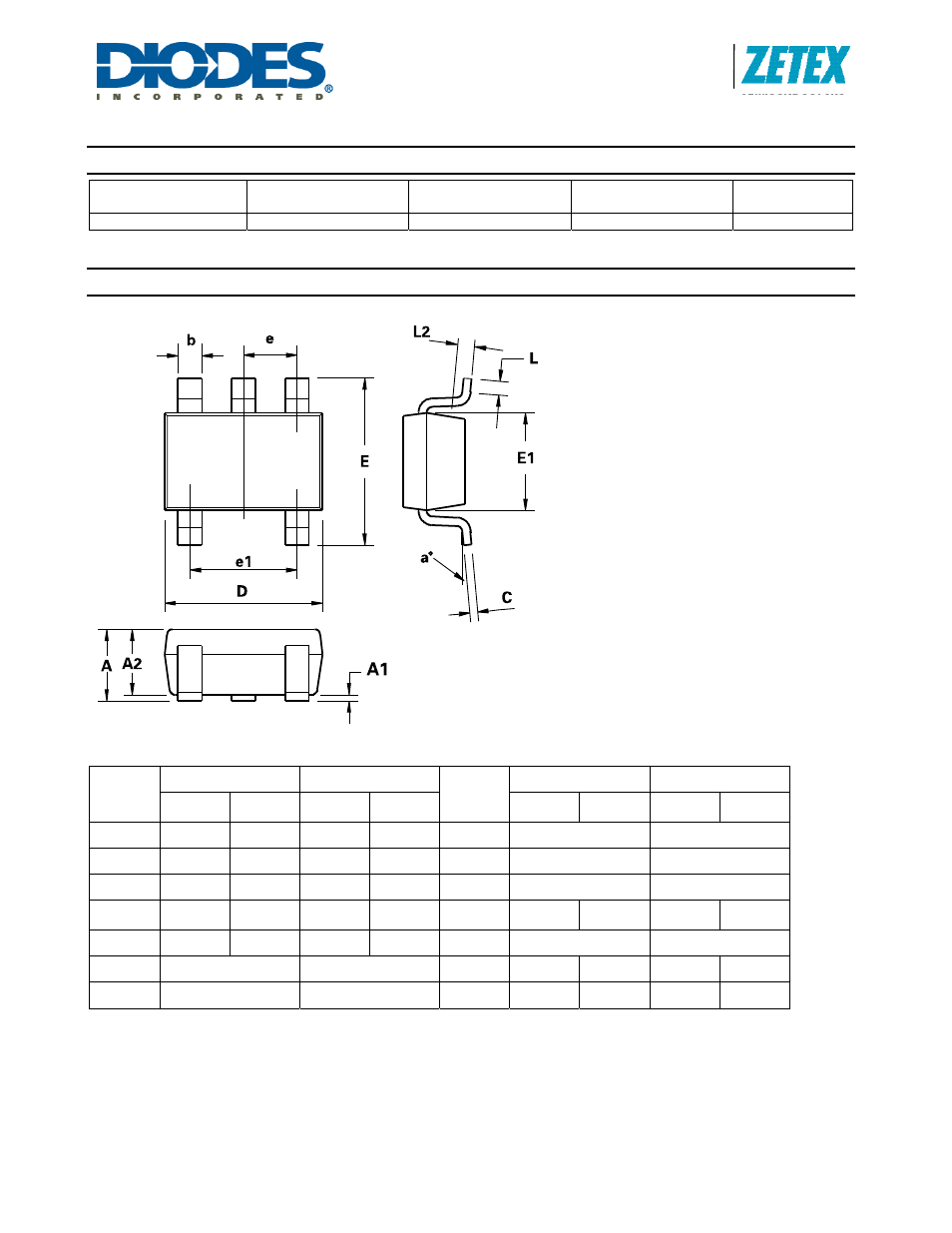

Package Outline Dimensions
Dim.
Millimeters Inches
Dim.
Millimeters Inches
Min. Max. Min. Max. Min. Max. Min. Max.
A - 1.00 - 0.0393 E1 1.60 BSC 0.062 BSC
A1 0.01 0.10 0.0003 0.0039 e 0.95 BSC 0.037 BSC
A2 0.84 0.90 0.0330 0.0354 1.90 BSC 0.074 BSC
b 0.30 0.45 0.0118 0.0177 L 0.10 0.60 0.0039 0.0236
C 0.12 0.20 0.0047 0.0078 L2 0.25 BSC 0.010 BSC
D 2.90 BSC 0.114 BSC Q 4 12 4 12
E 2.80 BSC 0.110 BSC
