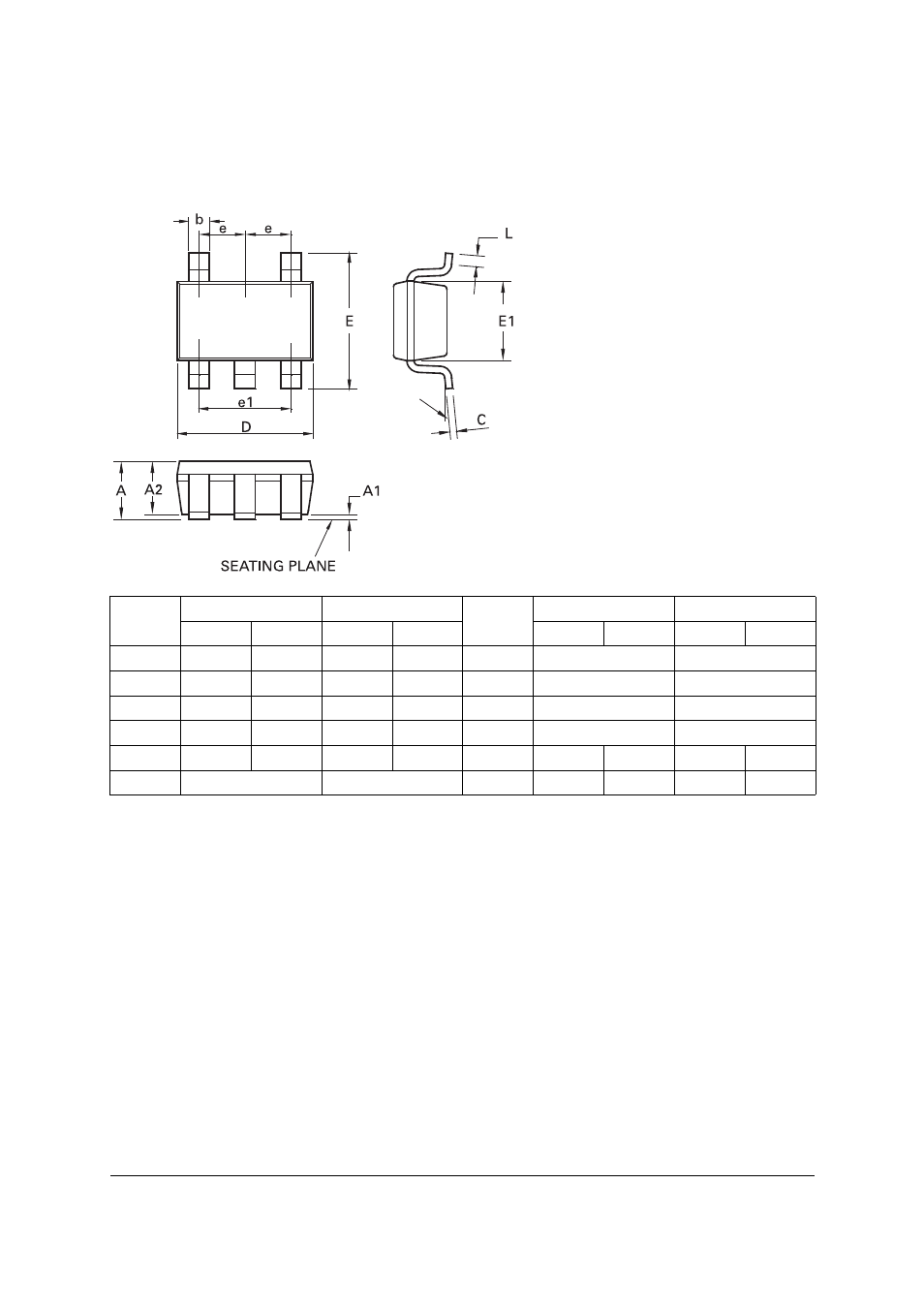

S70-5 Package outline
Note: Controlling dimensions are in millimeters. Approximate dimensions are provided in inches
Dim. Millimeters Inches Dim. Millimeters Inches
Min. Max. Min. Max. Min. Max. Max. Max.
A 0.80 1.10 0.0315 0.0433 E 2.10 BSC 0.0826 BSC
A1 - 0.10 - 0.0039 E1 1.25 BSC 0.0492 BSC
A2 0.80 1.00 0.0315 0.0039 e 0.65 BSC 0.0255 BSC
b 0.15 0.30 0.006 0.0118 e1 1.30 BSC 0.0511 BSC
C 0.08 0.25 0.0031 0.0098 L 0.26 0.46 0.010 0.018
D 2.00 BSC 0.0787 BSC
␣
0° 8° 0° 8°
␣
