TB0640L - TB3500L
Document number: DS30359 Rev. 9 - 2
2 of 5
www.diodes.com
May 2011
© Diodes Incorporated
TB0640L - TB3500L
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic Symbol Value Unit
Non-Repetitive Peak Impulse Current @10/1000us I
pp
30 A
Non-Repetitive Peak On-State Current @8.3ms (one-half cycle) I
TSM
15 A
Typical Positive Temperature Coefficient for Breakdown Voltage ΔVBR/ΔT
J
0.1 %/°C
Thermal Characteristics
Characteristic Symbol Value Unit
Thermal Resistance, Junction to Lead R θJL 30 °C/W
Thermal Resistance, Junction to Ambient R θJA 120 °C/W
Junction Temperature Range T
J
-40 to +150 °C
Storage Temperature Range T
STG
-55 to +150 °C

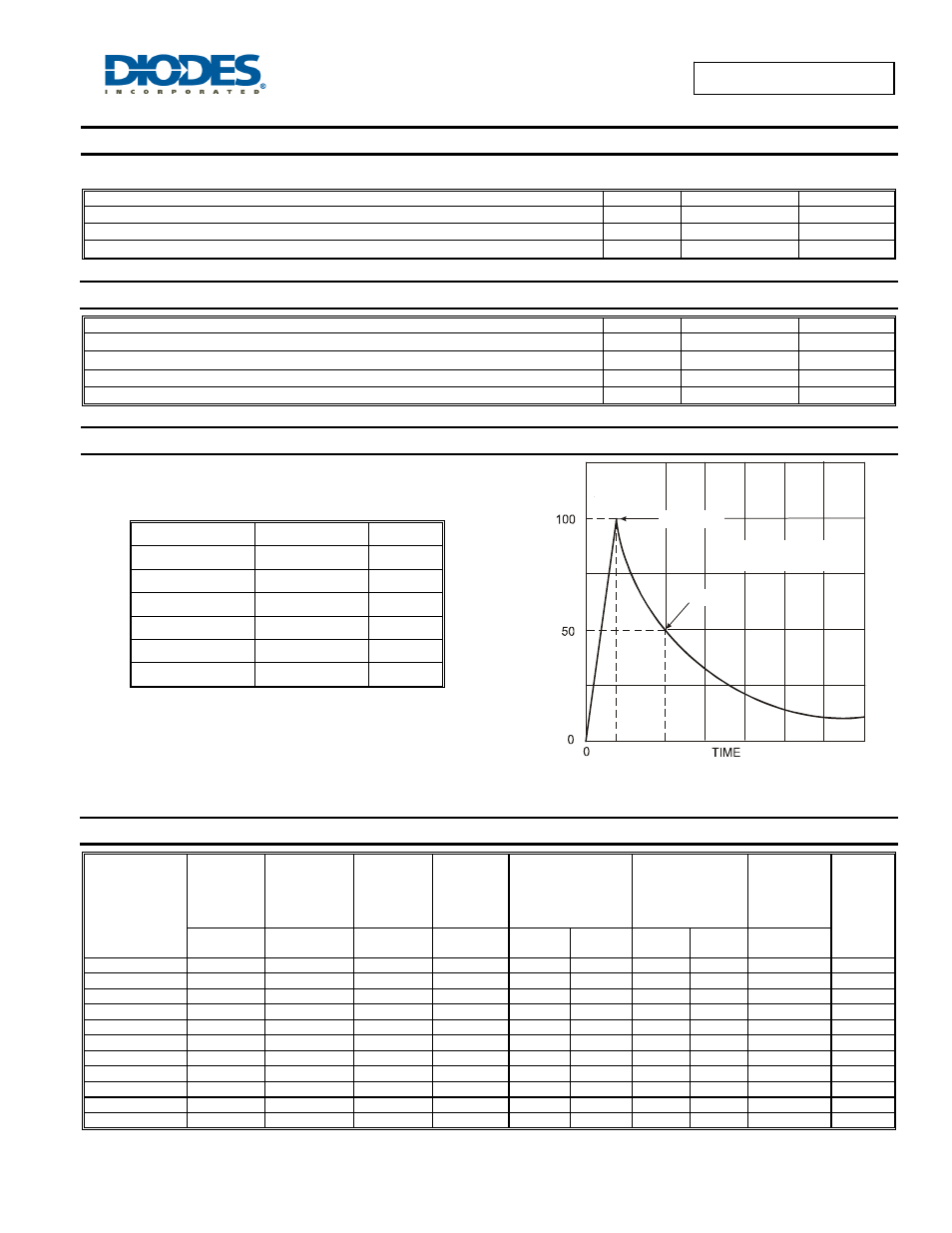

Maximum Rated Surge Waveform
Waveform Standard Ipp (A)
2/10 us GR-1089-CORE 200
8/20 us IEC 61000-4-5 150
10/160 us FCC Part 68 100
10/700 us (Note 4) ITU-T, K.20/K.21 60
10/560 us FCC Part 68 50
10/1000 us GR-1089-CORE 30
Notes: 4. Applied 2kV, 10/700 us waveform
I
,
PEAK
PUL
SE CU
RRENT (
%
)
PP
Peak Value (I )
pp
Half Value
t = rise time to peak value
t = decay time to half value
r
p
t
r
t
p
Electrical Characteristics
@T
A
= 25°C unless otherwise specified
Part Number
Maximum
Rated
Repetitive
Off-State
Voltage
Maximum
Off-State
Leakage
Current @
V
DRM
Maximum
Breakover
Voltage
Maximum
On-State
Voltage
@ I T = 1A
Breakover Current
I
BO
Holding Current
I
H
Typical
Off-State
Capacitance
Marking
Code
V
DRM
(V) I
DRM
(uA) V
BO
(V) V
T
(V)
Min
(mA)
Max
(mA)
Min
(mA)
Max
(mA)
C
O
(pF)
TB0640L 58 5 77 3.5 50 800 150 800 100 T064L
TB0720L 65 5 88 3.5 50 800 150 800 100 T072L
TB0900L 75 5 98 3.5 50 800 150 800 100 T090L
TB1100L 90 5 130 3.5 50 800 150 800 60 T110L
TB1300L 120 5 160 3.5 50 800 150 800 60 T130L
TB1500L 140 5 180 3.5 50 800 150 800 60 T150L
TB1800L 160 5 220 3.5 50 800 150 800 60 T180L
TB2300L 190 5 265 3.5 50 800 150 800 40 T230L
TB2600L 220 5 300 3.5 50 800 150 800 40 T260L
TB3100L 275 5 350 3.5 50 800 150 800 40 T310L
TB3500L 320 5 400 3.5 50 800 150 800 40 T350L
