TB0640H - TB3500H
Document number: DS30360 Rev. 10 - 2
2 of 6
www.diodes.com
May 2011
© Diodes Incorporated
TB0640H - TB3500H
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic Symbol Value Unit
Non-Repetitive Peak Impulse Current @10/1000us I pp
100 A
Non-Repetitive Peak On-State Current @8.3ms (one-half cycle) I
TSM
50 A
Typical Positive Temperature Coefficient for Breakdown Voltage ΔVBR/ΔT
J
0.1 %/°C
Thermal Characteristics
Characteristic Symbol Value Unit
Thermal Resistance, Junction to Lead R θJL 20 °C/W
Thermal Resistance, Junction to Ambient R θJA 100 °C/W
Junction Temperature Range T
J
-40 to +150 °C
Storage Temperature Range T
STG
-55 to +150 °C

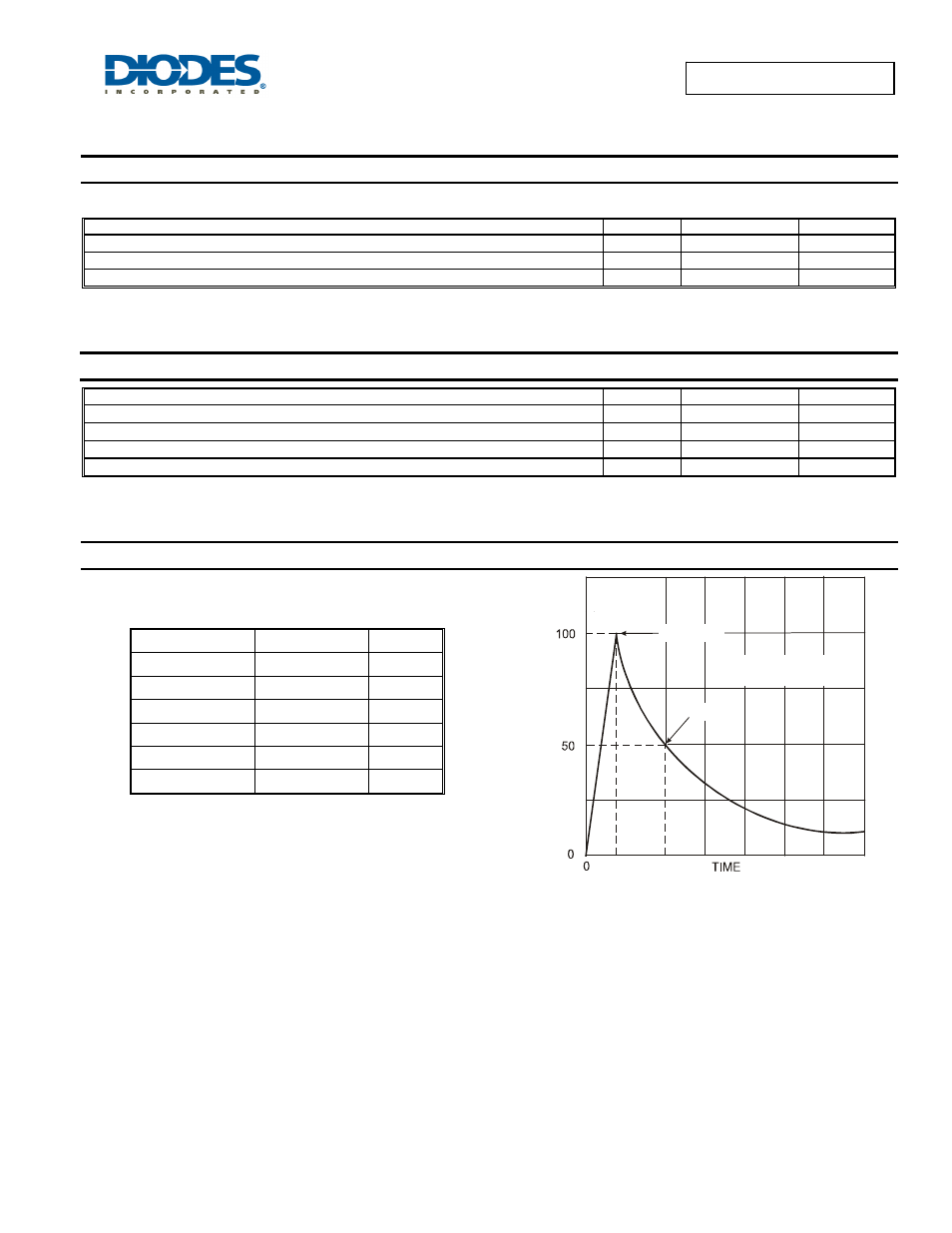

Maximum Rated Surge Waveform
Waveform Standard Ipp (A)
2/10 μs GR-1089-CORE 500
8/20
μs IEC 61000-4-5 400
10/160 μs FCC Part 68 250
10/700
μs (Note 4) ITU-T, K.20/K.21 200
10/560
μs
FCC Part 68 160
10/1000 μs GR-1089-CORE 100
Notes: 4. Applied 6kV, 10/700 μs waveform
I
,
PEAK
PUL
SE CU
RRENT (
%
)
PP
Peak Value (I )
pp
Half Value
t = rise time to peak value
t = decay time to half value
r
p
t
r
t
p
