SD12
ADVANCED INFORMATION

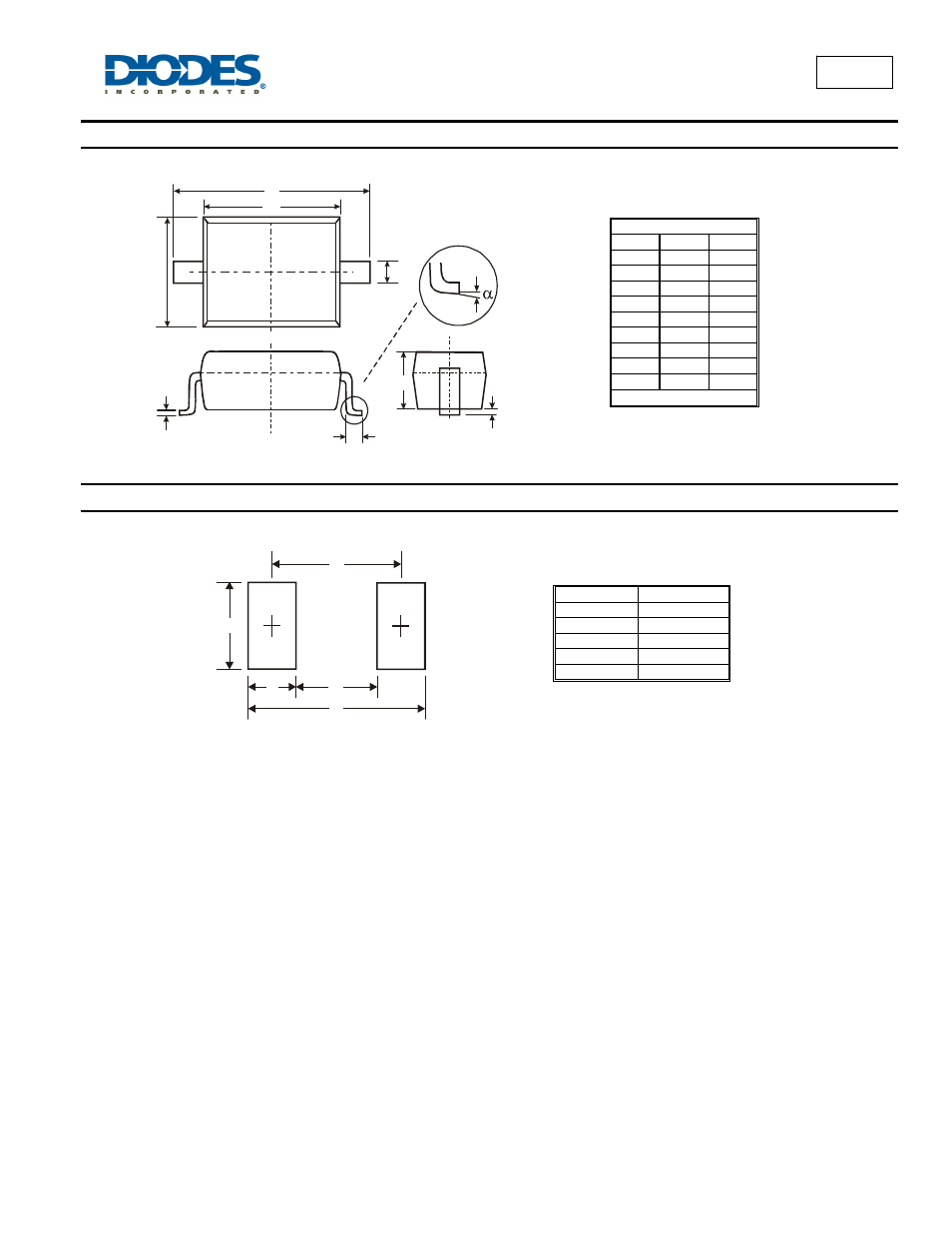

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
SOD323
Dim Min Max
A 0.25 0.35
B 1.20 1.40
C 2.30 2.70
H 1.60 1.80
J 0.00 0.10
K 1.0 1.1
L 0.20 0.40
M 0.10 0.15
α 0° 8°
All Dimensions in mm
Dimensions Value (in mm)
Z 3.75
G 1.05
X 0.65
Y 1.35
C 2.40
K
L
M J
C
H
B A
Z
X
C
G Y
