S E M I C O N D U C T O R S
SUMMARY
V
(BR)DSS
= 60V : R
DS(on)
= 0.3 ; I
D
= 1.6A
DESCRIPTION
This new generation of trench MOSFETs from Zetex
utilizes a unique structure that combines the benefits of
low on-resistance with fast switching speed. This
makes them ideal for high efficiency, low voltage,
power management applications.
FEATURES
·
Compact package
·
Low on state losses
·
Low drive requirements
·
Operates up to 60V
·
1 Amp continuous rating
APPLICATIONS
·
Motor control
DEVICE MARKING
·
ZXMH
N6A07
ZXMHN6A07T8
ISSUE 2 - MAY 2004

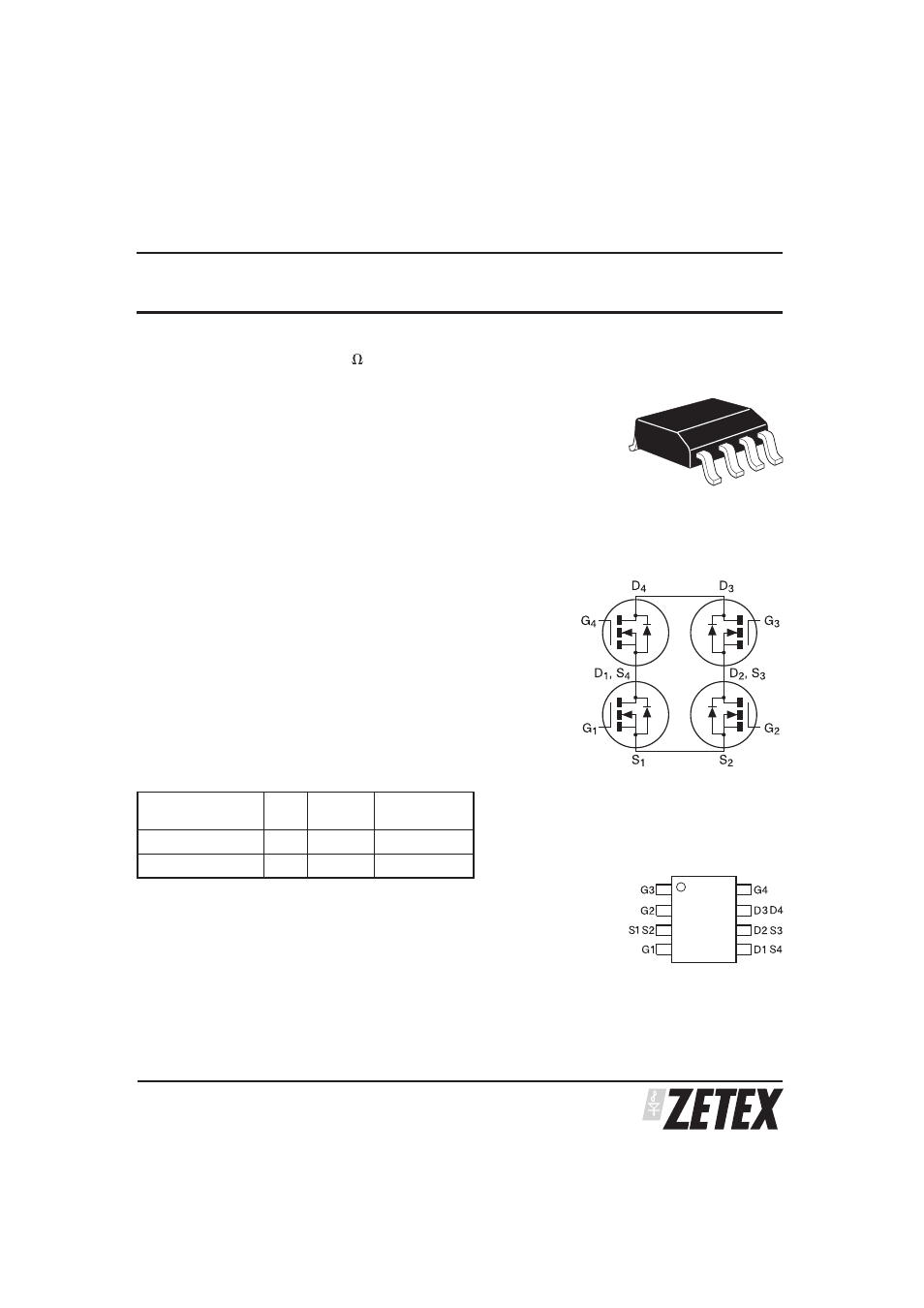

60V N-CHANNEL MOSFET H-BRIDGE
1
SM8
TOP VIEW
PINOUT
DEVICE REEL
SIZE
TAPE
WIDTH
QUANTITY PER
REEL
ZXMHN6 A0 7 T8 TA 7” 12mm 1,000 units
ZXMHN6 A0 7 T8 TC 13” 12mm 4,000 units
ORDERING INFORMATION
