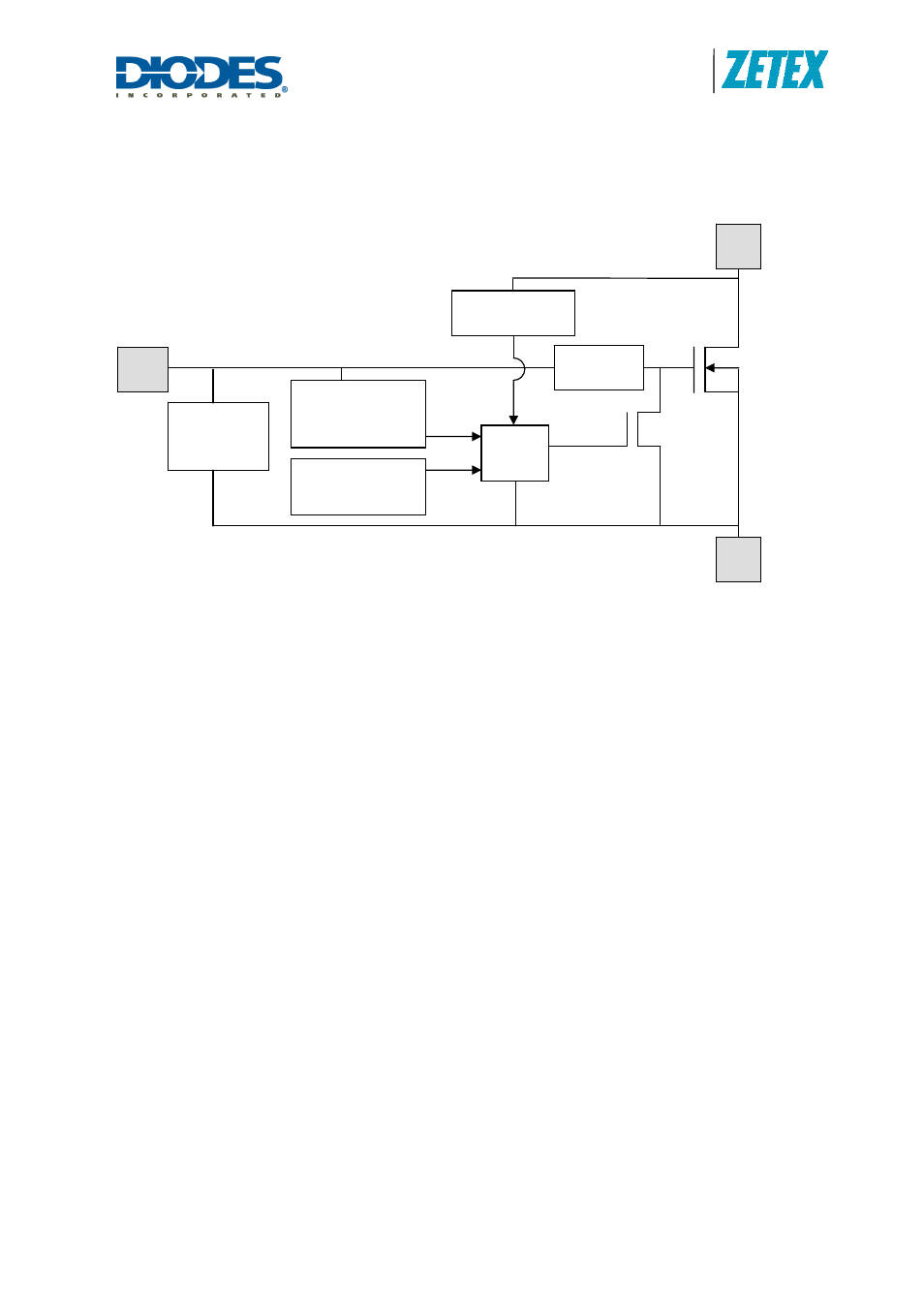

FUNCTIONAL BLOCK DIAGRAM
APPLICATIONS AND INFORMATION
• Especially suited for loads with a high in-rush current such as lamps and motors.
• All types of resistive, inductive and capacitive loads in switching applications.
• μC compatible power switch for 12V DC applications.
• Automotive
rated.
• Replaces electromechanical relays and discrete circuits.
• Linear Mode capability - the current-limiting protection circuitry is designed to de-activate
at low V
DS
to minimise on state power dissipation. The maximum DC operating current is
therefore determined by the thermal capability of the package/board combination, rather
than by the protection circuitry. This does not compromise the product’s ability to self-
protect at low V
DS
.
S
Over Voltage
Protection
Over current
protection
Logic
Human
body ESD
protection
D
IN
dV/dt
limitation
Over temperature
protection
