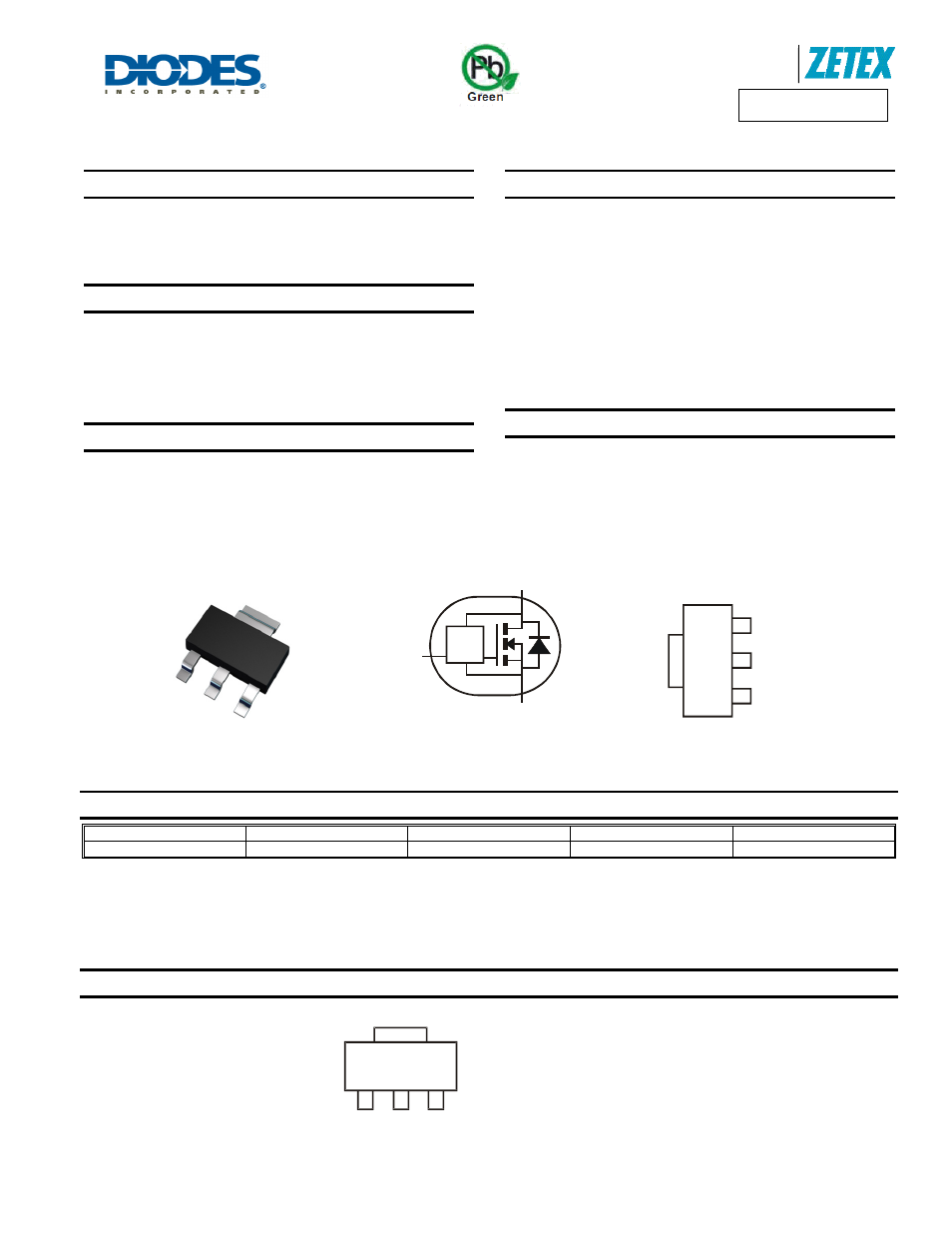

ZXMS6005DG
Document number: DS32247 Rev. 1 - 2
1 of 9
September 2013
© Diodes Incorporated
ZXMS6005DG
ADVAN
CE I
N
F
O
RM
ATI
O
N
A Product Line of
Diodes Incorporated
IntelliFET
®
is a trademark of Diodes Incorporated, registered in the United States and other jurisdictions worldwide.
60V N-CHANNEL SELF PROTECTED ENHANCEMENT MODE
INTELLIFET
®
MOSFET
Product Summary
Continuous drain source voltage 60V
On-state resistance 200mΩ
Nominal load current (V
IN
= 5V) 2.8A
Clamping Energy 490mJ
Description
The ZXMS6005DG is a self protected low side MOSFET with logic
level input. It integrates over-temperature, over-current, over-voltage
(active clamp) and ESD protected logic level functionality. The
ZXMS6005DG is ideal as a general purpose switch driven from 3.3V
or 5V microcontrollers in harsh environments where standard
MOSFETs are not rugged enough.
Applications
Lamp
Driver
Motor
Driver
Relay
Driver
Solenoid
Driver
Features and Benefits
Compact high power dissipation package
Low input current
Logic Level Input (3.3V and 5V)
Short circuit protection with auto restart
Over voltage protection (active clamp)
Thermal shutdown with auto restart
Over-current
protection
Input Protection (ESD)
High continuous current rating
Lead-Free Finish; RoHS compliant (Note 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case:
SOT-223
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish
Weight: 0.112 grams (approximate)
Ordering Information
(Note 4)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXMS6005DGTA
ZXMS6005D
7
12
1,000
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
ZXMS6005D = Product type Marking Code
Top View
SOT-223
Top view
Pin Out
Device symbol
D
S
IN
S
D
IN
D
ZXMS
6005D
