© Zetex Semiconductors plc 2007

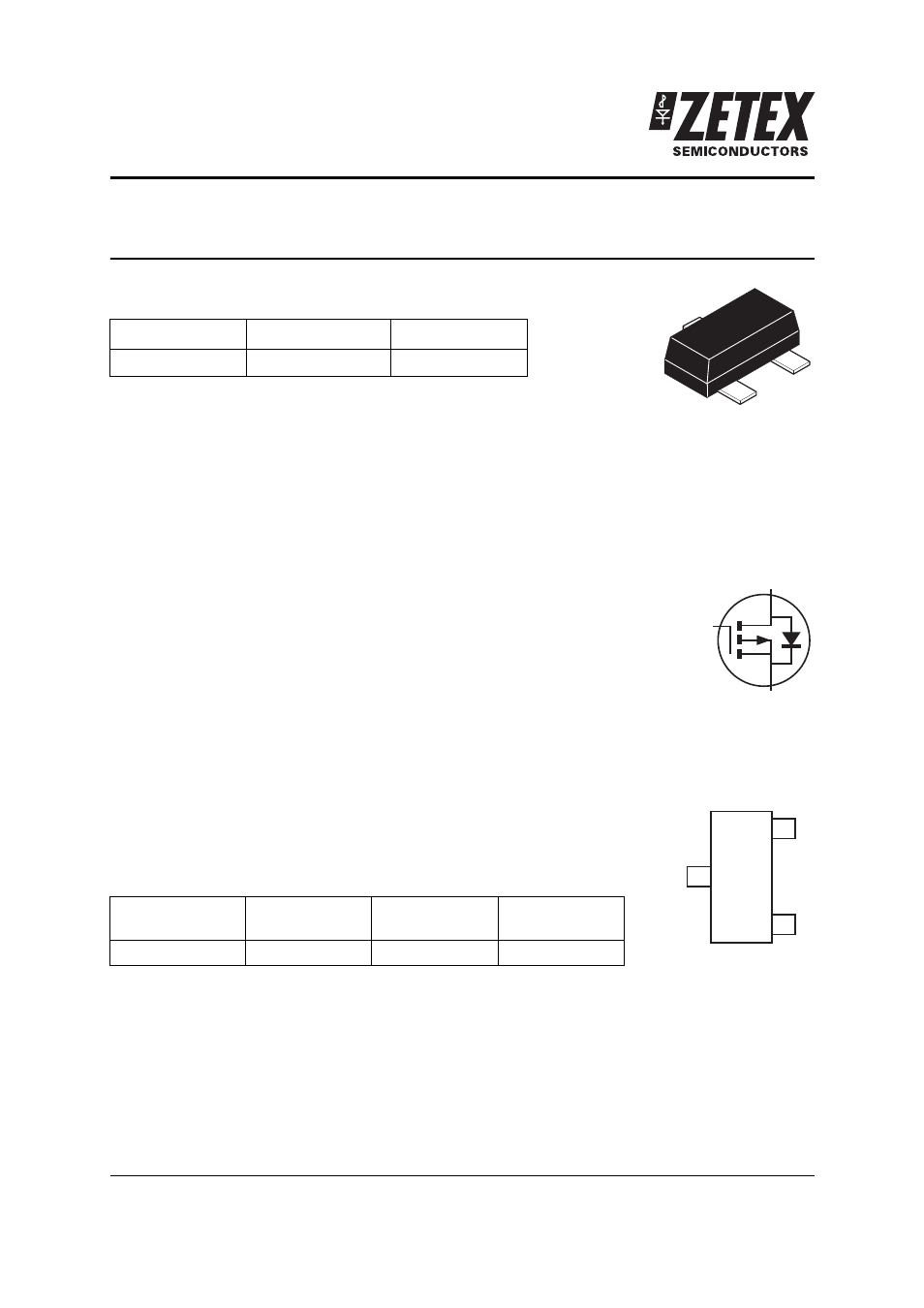

ZXMP2120FF
200V SOT23F P-channel enhancement mode MOSFET
Summary
Description
This 200V enhancement mode P-channel MOSFET provides users with
a competitive specification offering efficient power handling capability,
high impedance and freedom from thermal runaway and thermally
induced secondary breakdown.
Applications benefiting from this device include a variety of telecom
and general high voltage circuits.
Features
•
High voltage
•
Low on-resistance
•
Fast switching speed
•
Low gate drive
•
Low threshold
•
SOT23 FLAT package
Applications
•
Active clamping of primary side MOSFETs in 48 volt DC-DC
converters
Ordering information
Device marking
1C4
V
(BR)DSS
R
DS
(on) (⍀)
I
D
(mA)
-200
28 @ V
GS
= -10V
-137
Device
Reel size
(inches)
Tape width
(mm)
Quantity
per reel
ZXMP2120FFTA
7
8
3,000
D
S
G
D
Top view
S
G
