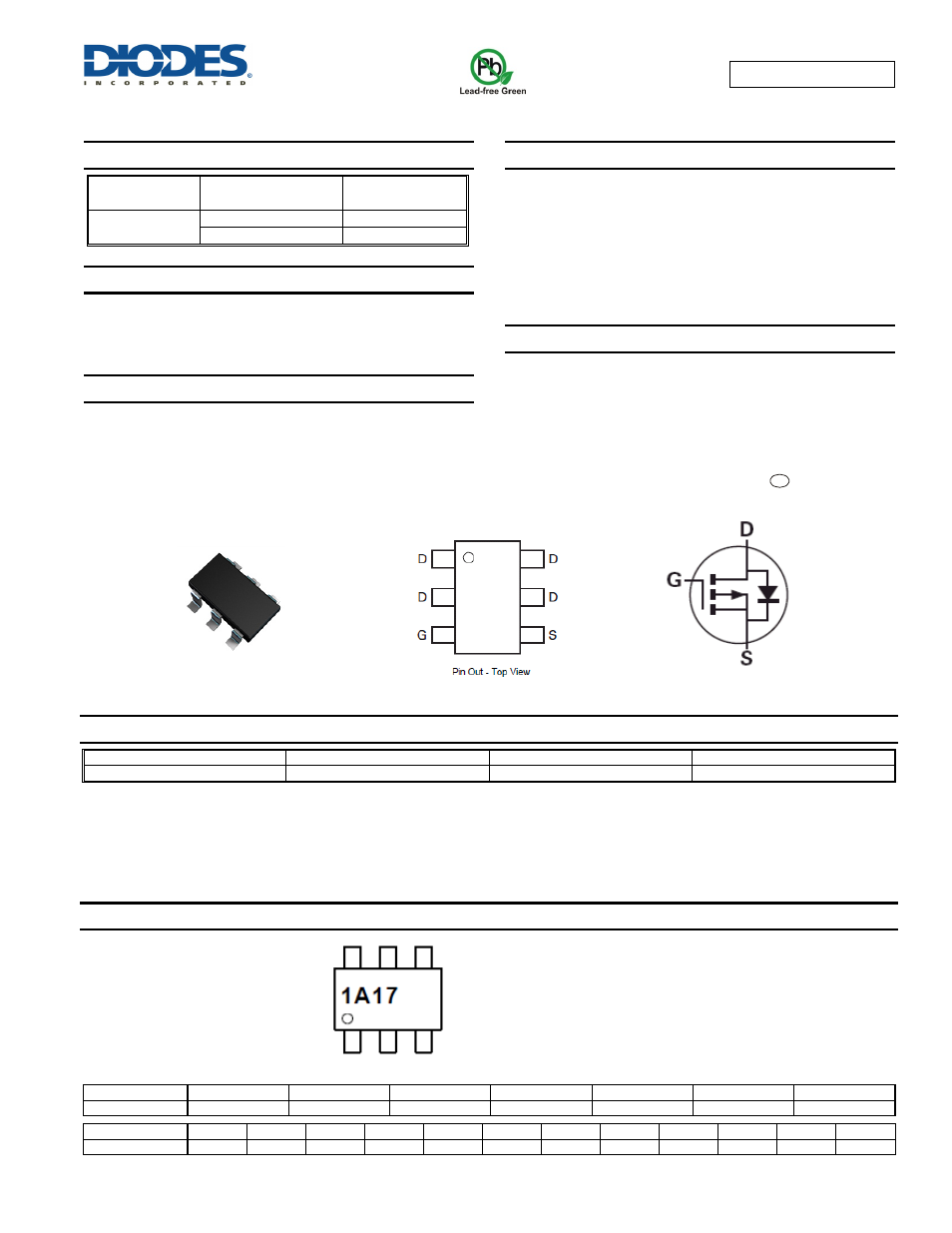

ZXMP10A17E6Q
ADVAN
CE I
N
F
O
RM
ATI
O
N
100V P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on)
I
D
T
A
= +25°C
-100V
350mΩ @ V
GS
= -10V
-1.6A
450mΩ @ V
GS
= -6.0V
-1.4A
Description
This MOSFET has been designed to minimize the on-state resistance
and yet maintain superior switching performance, making it ideal for
high efficiency power management applications.
Applications
Motor
Control
DC-DC
Converters
Power Management Functions
Uninterrupted Power Supply
Features and Benefits
Fast Switching Speed
Low gate drive
Low input capacitance
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Available
Mechanical Data
Case:
SOT26
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals Connections: See diagram below
Terminals: Finish - Matte Tin annealed over Copper lead frame.
Solderable per MIL-STD-202, Method 208
Weight: 0.018 grams (approximate)
Ordering Information
(Note 4 & 5)
Part Number
Qualification Case
Packaging
ZXMP10A17E6QTA
Automotive
SOT26
3,000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer
5. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2013
2014
2015
2016
2017
2018
2019
Code
A B C D E F G
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
e3
Equivalent Circuit
Top View
SOT26
YM
1A17 = Product Type Marking Code
YM = Date Code Marking
Y = Year ex: A = 2013
M = Month ex: 9 = September
