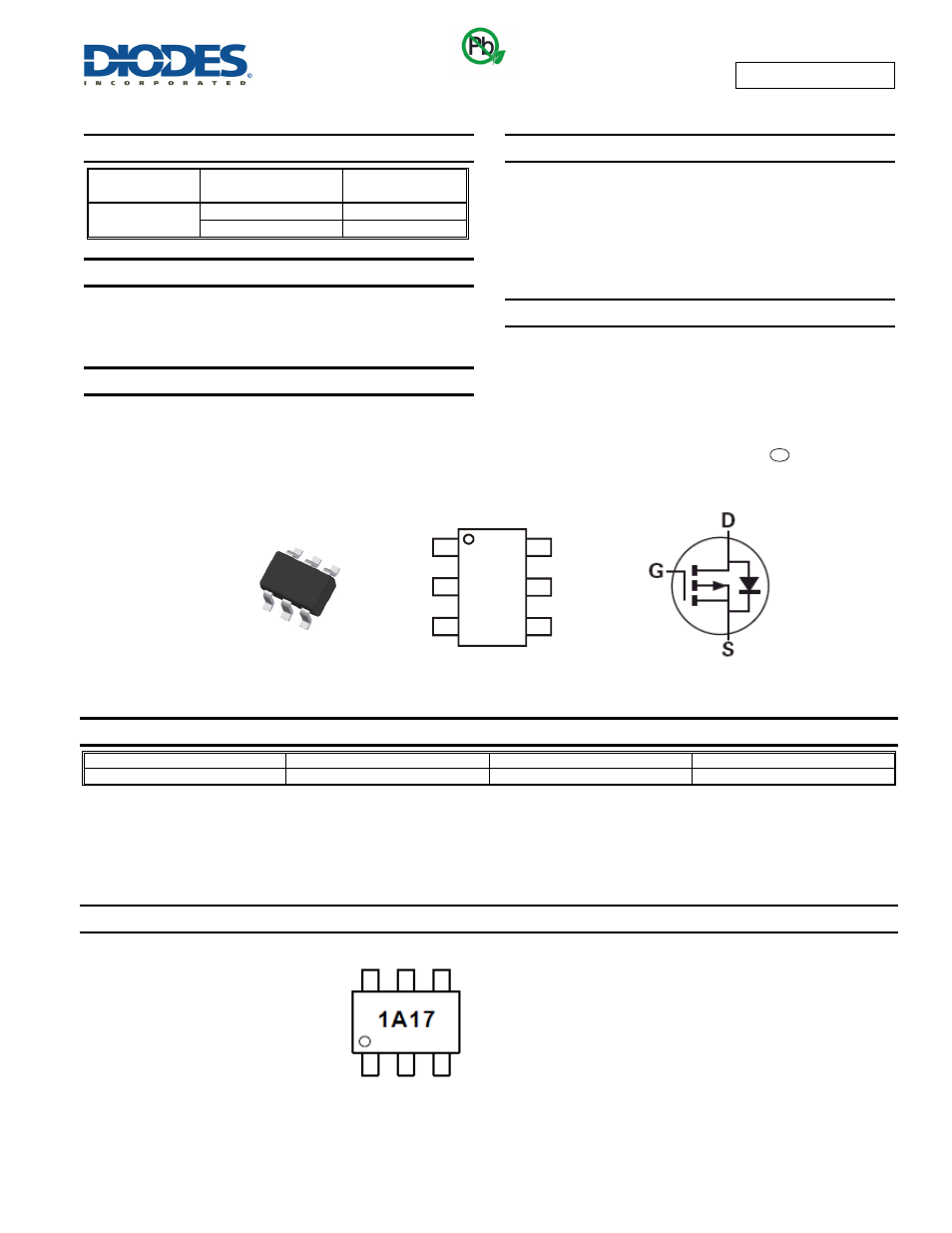

ZXMP10A17E6
Document Number DS32027 Rev. 6 - 2
1 of 7
January 2014
© Diodes Incorporated
ZXMP10A17E6
ADVAN
CE I
N
F
O
RM
ATI
O
N
100V P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on)
I
D
T
A
= +25°C
-100V
350mΩ @ V
GS
= -10V
-1.6A
450mΩ @ V
GS
= -6V
-1.4A
Description
This MOSFET has been designed to minimize the on-state resistance
and yet maintain superior switching performance, making it ideal for
high efficiency power management applications.
Applications
• Motor
Control
• DC-DC
Converters
•
Power Management Functions
•
Uninterrupted Power Supply
Features and Benefits
•
Fast Switching Speed
•
Low gate drive
•
Low input capacitance
•
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT26
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals Connections: See diagram below
•
Terminals: Finish - Matte Tin annealed over Copper lead frame.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.018 grams (approximate)
Ordering Information
(Note 4)
Part Number
Compliance Case
Packaging
ZXMP10A17E6TA
Standard
SOT26
3,000/Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
1A17 = Product Type Marking Code
e3
Equivalent Circuit
Green
Top View
SOT26
D
D
D
D
S
G
Pin Out
Top View
