ZVP1320F
Document number: DS33391 Rev. 4 - 2
1 of 8
January 2012
© Diodes Incorporated
ZVP1320F
A Product Line of
Diodes Incorporated
200V P-CHANNEL ENHANCEMENT MODE VERTICAL DMOS FET IN SOT23
Features and Benefits
•
V
(BR)DSS
> -200V
•
R
DS(on)
≤
80
Ω @ V
GS
= -10V
•
Maximum continuous drain current I
D
= -35mA
•
“Lead Free”, RoHS Compliant (Note 1)
•
Halogen and Antimony Free. "Green" Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT23
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish – NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208
•
Weight: 0.001 grams (approximate)
Ordering Information
(Note 3)
Part Number
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZVP1320FTA MT
7
8
3000
Notes:
1. No purposefully added lead
2. Diodes Inc's "Green" policy can be found on our w
3. For packaging details, go to our website at

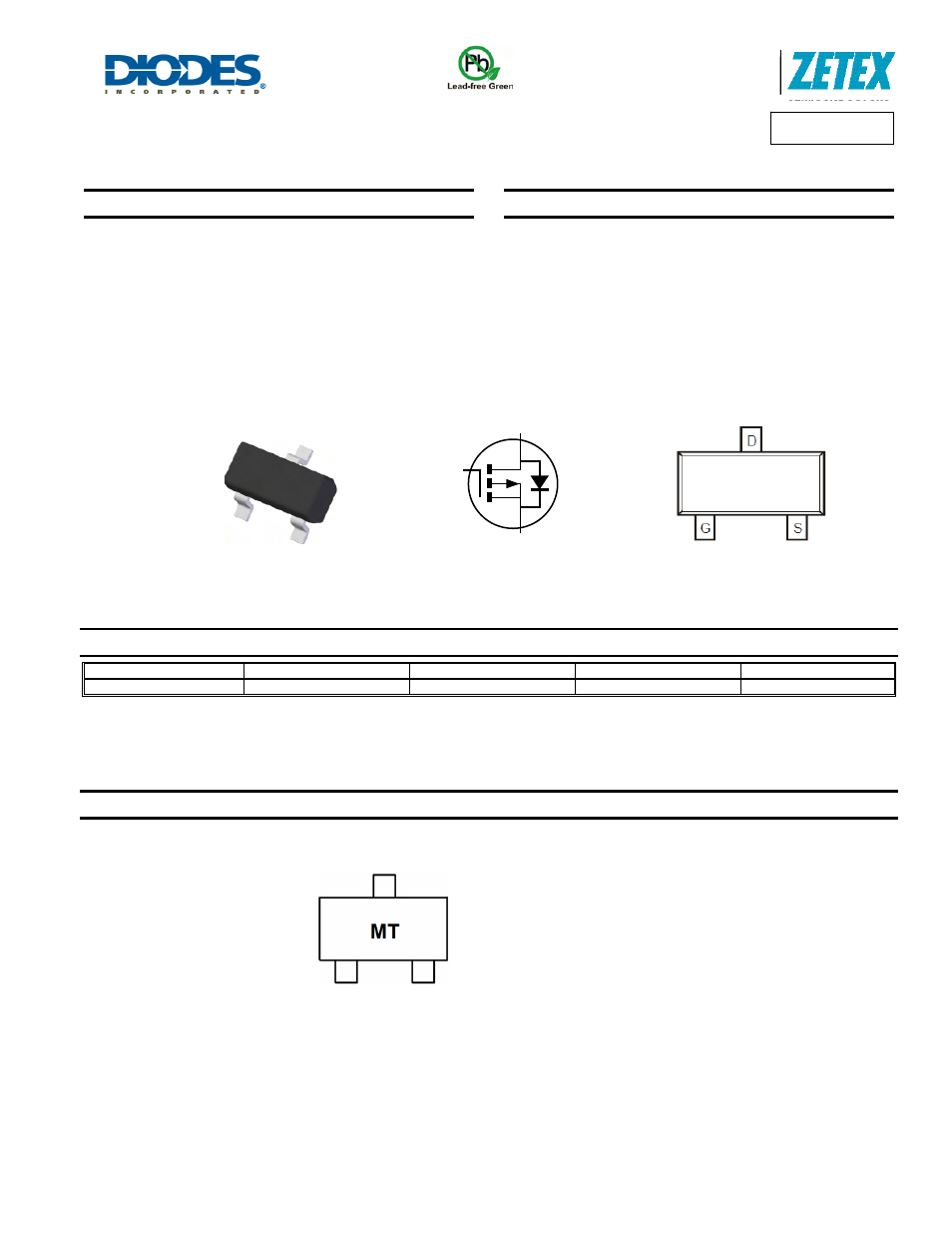

Marking Information
SOT23
Device symbol
Pin-Out
Top View
Top View
MT = Product Type Marking Code
D
S
G
