Diodes ZVP4424G - Manual

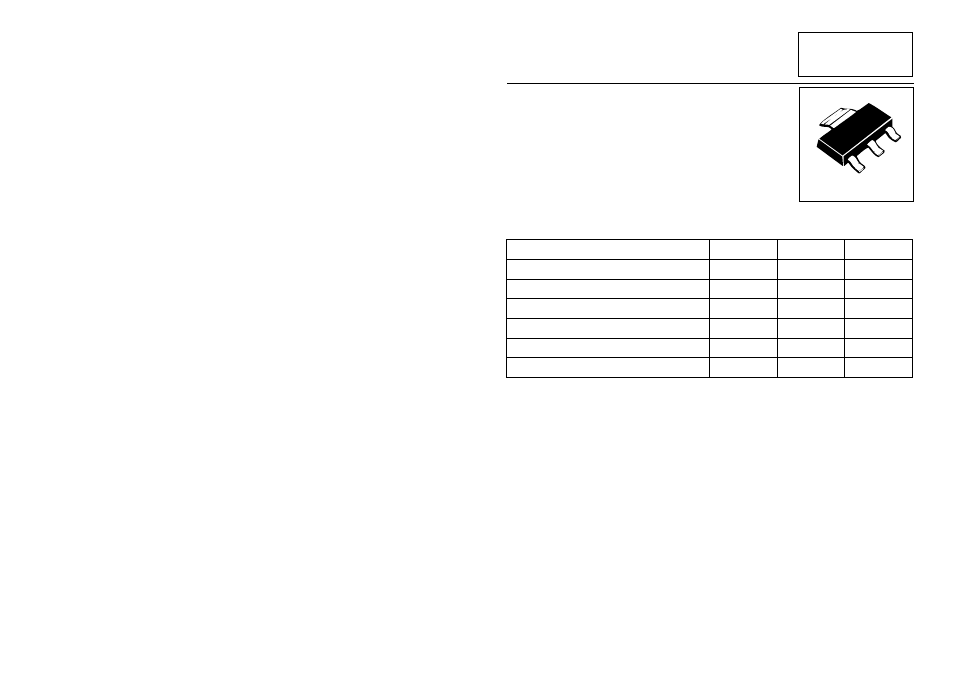

SOT223 P-CHANNEL ENHANCEMENT
MODE VERTICAL DMOS FET
ISSUE 2 - OCTOBER 1995
FEATURES
* 240 Volt V
DS
* R
DS(on)
= 8.8 Ω typical at V
GS
=-3.5V
* Low threshold and Fast switching
APPLICATIONS
* Electronic hook switches
* Telecoms and Battery powered equipment
COMPLEMENTARY TYPE - ZVN4424G
PARTMARKING DETAIL - ZVP4424
ABSOLUTE MAXIMUM RATINGS.
PARAMETER SYMBOL VALUE UNIT
Drain-Source Voltage V
DS
-240 V
Continuous Drain Current at T
amb
=25°C I
D
-480 mA
Pulsed Drain Current I
DM
-1.0 A
Gate Source Voltage V
GS
± 40 V
Power Dissipation at T
amb
=25°C P
tot
2.5 W
Operating and Storage Temperature Range T
j
:T
stg
-55 to +150 °C
ZVP4424G
D
D
S
G
3 - 438
