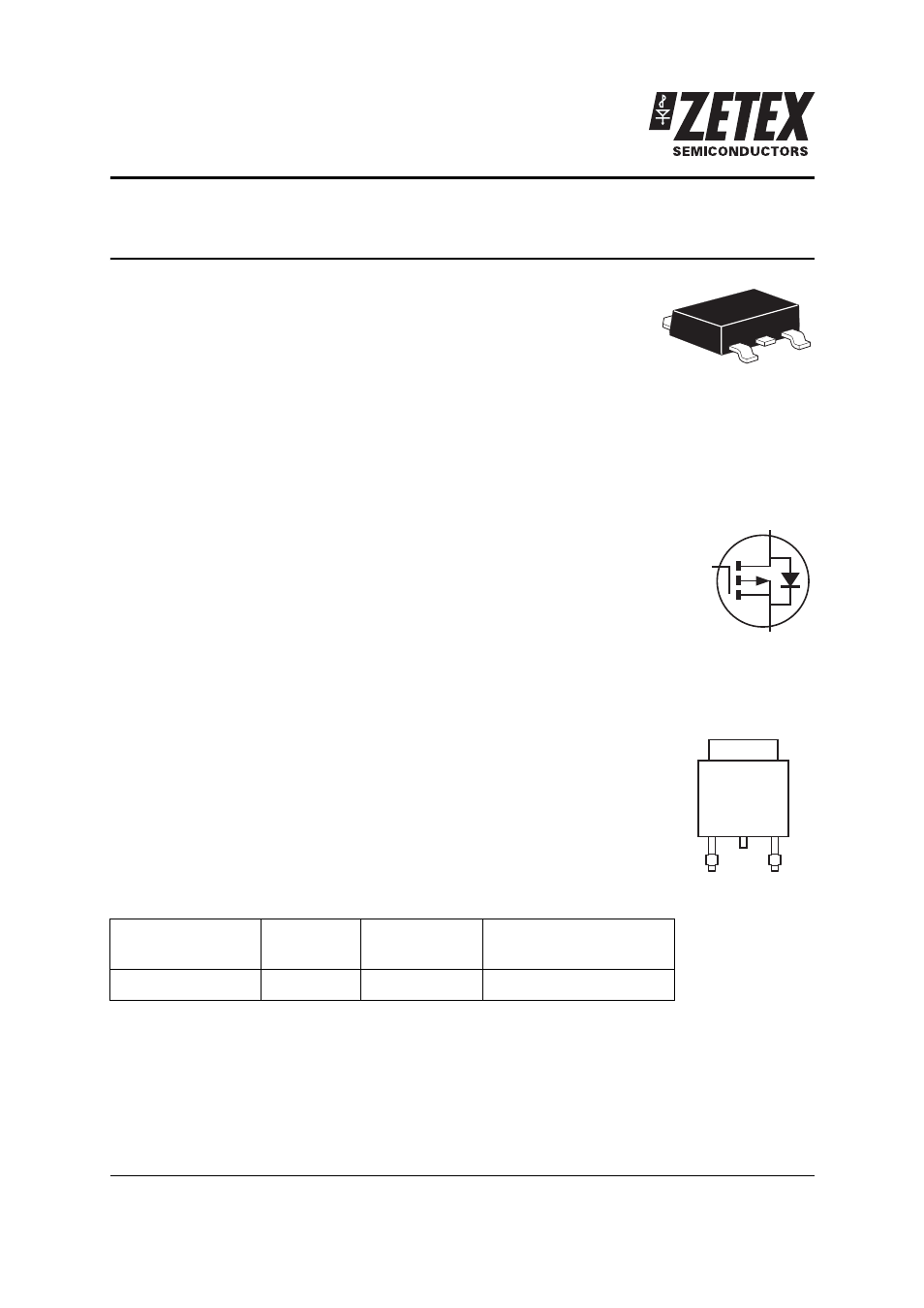

ZXMP7A17K
70V P-channel enhancement mode MOSFET
Summary
V
DSS
=70V : R
DS(on)
=0.16
⍀
I
D
=5.7A
Description
This new generation of trench MOSFETs from Zetex utilizes a unique
structure that combines the benefits of low on-resistance with fast
switching speed. This makes them ideal for high efficiency, low voltage
power management applications.
Features
•
Low on-resistance
•
Fast switching speed
•
Low threshold
•
Low gate drive
•
DPAK package
Applications
•
DC-DC converters
•
Power management functions
•
Disconnect switches
•
Motor control
•
Class D audio output stages
Ordering information
Device marking
ZXMP
7A17
Device
Reel size
(inches)
Tape width
(mm)
Quantity per reel
ZXMP7A17KTC
13
16
2,500
D
S
G
G
S
D
D
Pinout - top view
