ZXMP6A17GQ
Document Number DS36686 Rev. 2 - 2
1 of 8
www.diodes.com
December 2013
© Diodes Incorporated
ADVAN
CE I
N
F
O
RM
ATI
O
N
ZXMP6A17GQ
60V P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on)
I
D
T
A
= +25°C
-60V
125mΩ @ V
GS
= -10V -4.3A
190mΩ @ V
GS
= -4.5V -3.5A
Description
This MOSFET has been designed to minimize the on-state resistance
and yet maintain superior switching performance, making it ideal for
high efficiency power management applications.
Applications
 Motor Control
 DC-DC Converters
 Power Management Functions
 Uninterrupted Power Supply
Features and Benefits
 Fast Switching Speed
 Low Gate Drive
 Low Input Capacitance
 Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
 PPAP Available
Mechanical Data
 Case: SOT223
 Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Finish - Matte Tin annealed over Copper lead frame.
Solderable per MIL-STD-202, Method 208
 Weight: 0.112 grams (approximate)
Ordering Information
(Note 4 & 5)
Part Number Compliance Case Packaging
ZXMP6A17GQTA Automotive SOT223 1,000 / Tape & Reel
Note: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_grade_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information

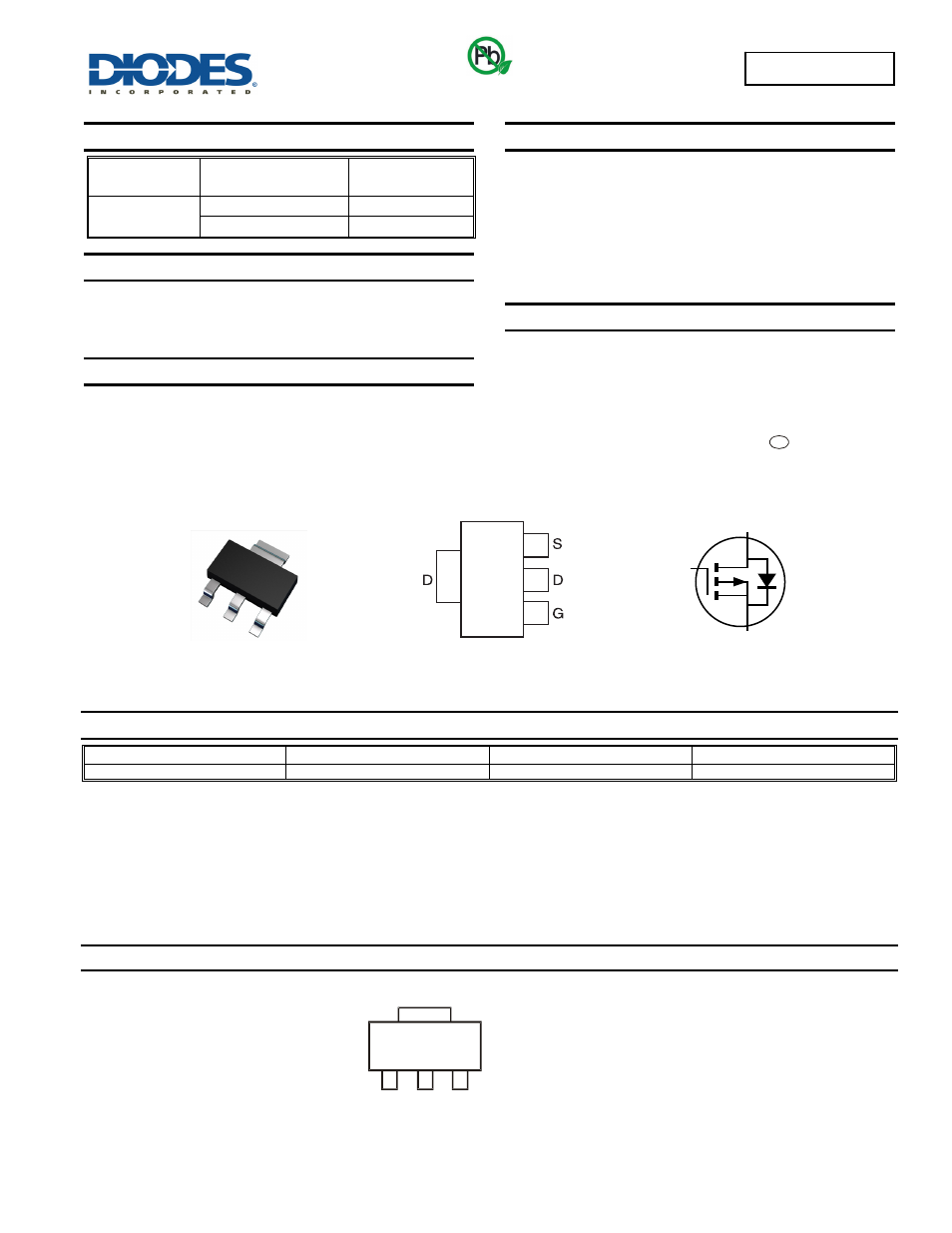

Pin Out - Top View Top View
SOT223
Equivalent Circuit
D
S
G
ZXMP = Product Type Marking Code, Line 1
6A17 = Product Type Marking Code, Line 2
e3
Green
6A17
ZXMP
