Diodes ZXMP6A17E6Q User Manual
Zxmp6a17e6q, Product summary, Description

ZXMP6A17E6Q
Document Number: DS36685 Rev. 1 - 5
1 of 8
www.diodes.com
January 2014
© Diodes Incorporated
ZXMP6A17E6Q
A
D
V
A
N
C
E
I
N
F
O
R
M
A
T
IO
N
60V P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on)
Max
I
D
Max
T
A
= +25°C
(Note 7)
-60V
125m
Ω @ V
GS
= -10V
-3.0 A
190m
Ω @ V
GS
= -4.5V
-2.4 A
Description
This MOSFET has been designed to minimize the on-state resistance
and yet maintain superior switching performance, making it ideal for
high efficiency power management applications.
Applications
DC-DC Converters
Power management functions
Disconnect switches
Motor control
Features and Benefits
Low on-resistance
Fast switching speed
Low threshold
Low gate drive
Low input capacitance
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Available
Mechanical Data
Case: SOT26
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals Connections: See diagram below
Terminals: Finish - Matte Tin annealed over Copper lead frame.
Solderable per MIL-STD-202, Method 208
Weight: 0.018 grams (approximate)
Ordering Information
(Note 4 & 5)
Part Number
Compliance
Case
Quantity per reel
ZXMP6A17E6QTA
Automotive
SOT26
3,000
Note:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html
for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-
free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_grade_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information

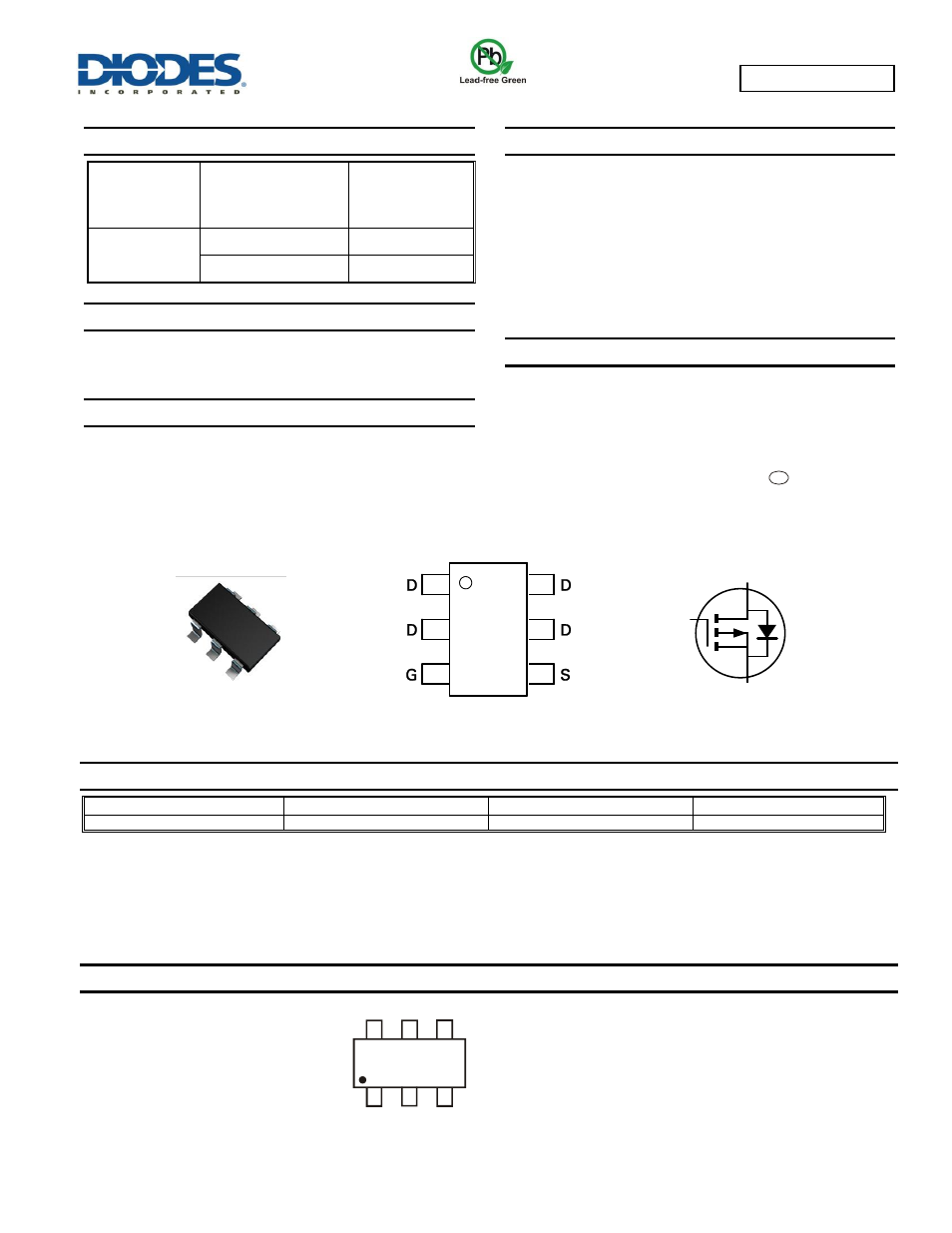

Pin Out - Top View
Equivalent Circuit
D
S
G
Top View
SOT26
6A17 = Product Type Marking Code
6A17
e3
