ZXMP6A13G
ADVAN
CE I
N
F
O
RM
ATI
O
N
60V P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on)
I
D
T
A
= 25
°C
-60V
390m
Ω @ V
GS
= -10V
-2.3A
595m
Ω @ V
GS
= -4.5V
-1.9A
Description and Applications
This MOSFET has been designed to minimize the on-state resistance
and yet maintain superior switching performance, making it ideal for
high efficiency power management applications.
• Motor
control
• DC-DC
Converters
•
Power management functions
•
Uninterrupted power supply
Features and Benefits
•
Fast switching speed
•
Low gate drive
•
Low input capacitance
•
“Lead Free”, RoHS Compliant (Note 1)
•
Halogen and Antimony Free. "Green" Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT223
•
Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish - Matte Tin annealed over Copper lead frame.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.112 grams (approximate)
Ordering Information
(Note 3)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXMP6A13GTA ZXMP6A13
7
12
1,000
Notes:
1. No purposefully added lead
2. Diodes Inc's "Green" policy can be found on our w
3. For packaging details, go to our website at

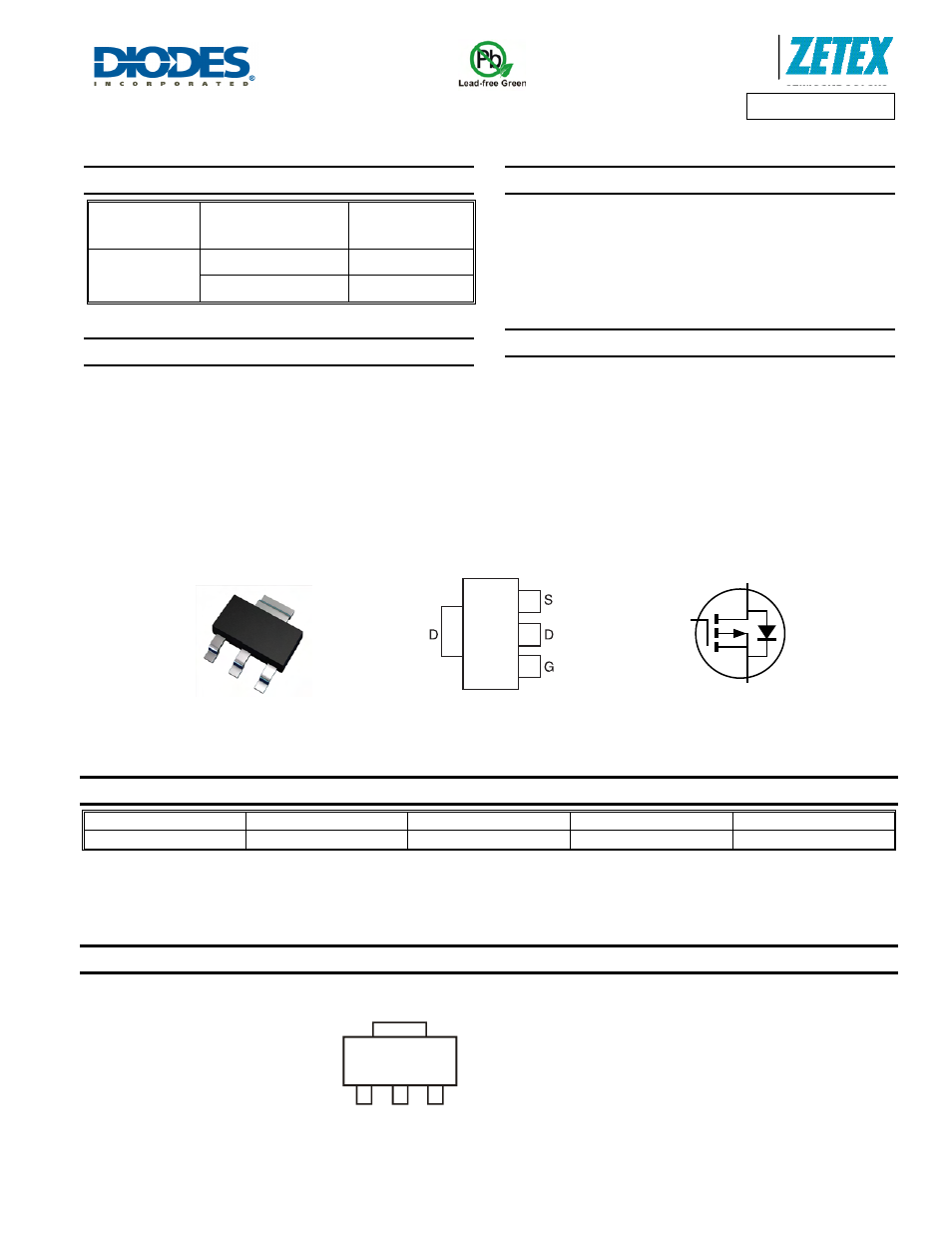

Marking Information
Equivalent Circuit
D
S
G
Top View
SOT223
Pin Out - Top View
ZXMP = Product Type Marking Code, Line 1
6A13 = Product Type Marking Code, Line 2
ZXMP
6A13
