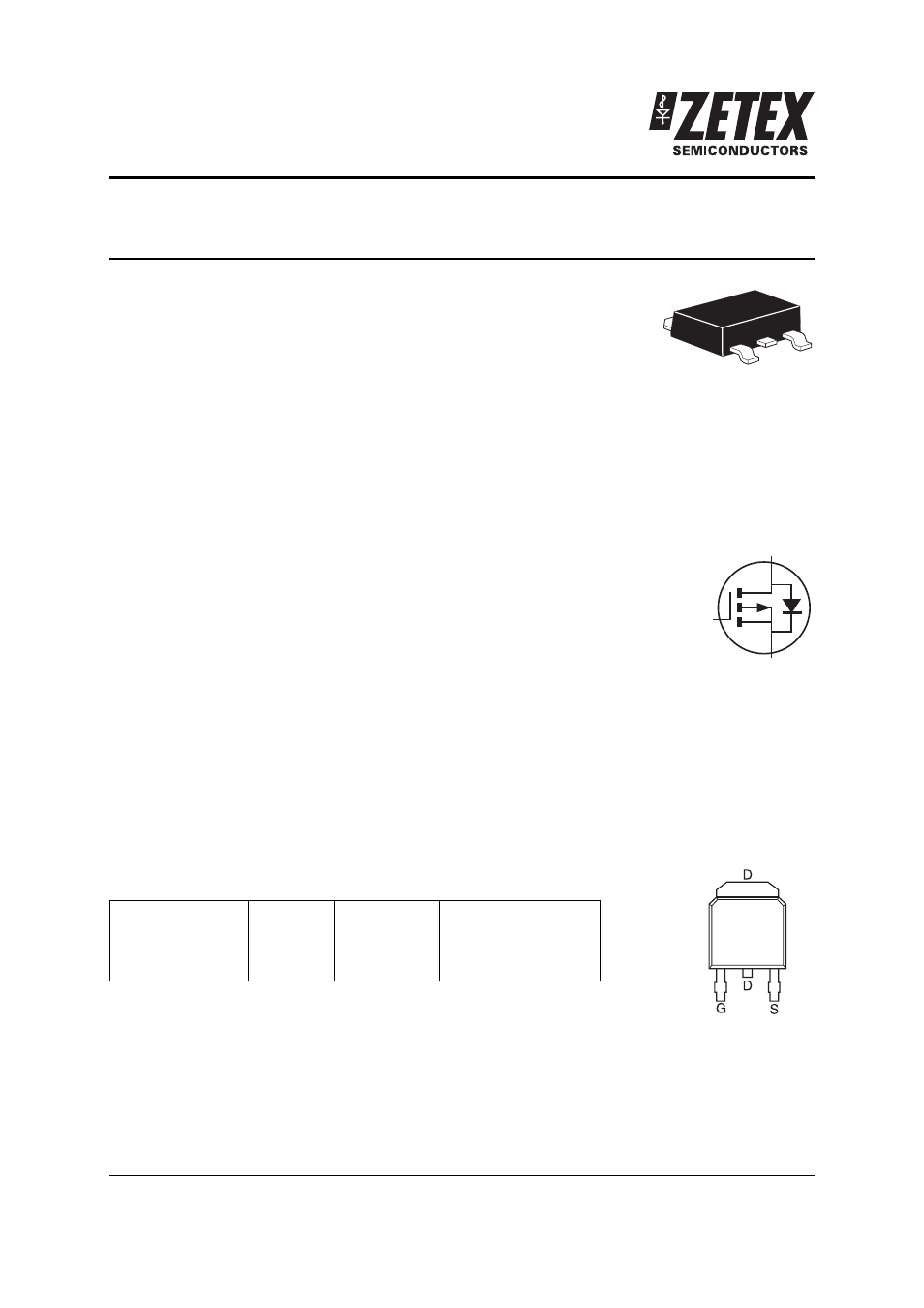

ZXMP4A16K
40V P-channel enhancement mode MOSFET
Summary
V
(BR)DSS
= -40V; R
DS(ON)
= 0.060
⍀ I
D
= -9.9A
Description
This new generation of trench MOSFETs from Zetex utilizes a unique
structure that combines the benefits of low on-resistance with fast
switching speed. This makes them ideal for high efficiency, low voltage,
power management applications.
Features
• Low on-resistance
• Fast switching speed
• Low threshold
• Low gate drive
• DPAK package
Applications
• DC - DC converters
• Audio output stages
• Relay and solenoid driving
• Motor control
Ordering information
Device marking
ZXMP
4A16
Device Reel size
(inches)
Tape width Quantity per reel
ZXMP4A16KTC 13 16mm 2500 units
D
S
G
Pinout - Top view
