ZXMN10A09K
Document Number DS32045 Rev. 7 - 2
1 of 8
January 2010
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXMN10A09K
100V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on)
I
D
T
A
= 25
°C
100V
85m
Ω @ V
GS
= 10V
7.7A
100m
Ω @ V
GS
= 6V
7.1A
Description and Applications
This MOSFET features low on-resistance, fast switching and a high
avalanche withstand capability, making it ideal for high efficiency
power management applications.
•
DC-DC Converters
•
Power management functions
•
Disconnect switches
•
Motor control
•
Uninterrupted power supply
Features and Benefits
•
Low input capacitance
•
Low on-resistance
•
Fast switching speed
•
“Green” Component and RoHS compliant (Note 1)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
TO252-3L
•
Case Material: Molded Plastic “Green” Molding Compound,
UL Flammability Classification Rating 94V-0 (Note 1)
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminal Connections: See Diagram
•
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.33 grams (approximate)
Ordering Information
(Note 1)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXMN10A09KTC ZXMN10A09
13
16
2,500
Notes:
1. Diodes, Inc. defines “Green” products as those which are RoHS compliant and contain no halogens or antimony compounds; further information
about Diodes Inc.’s “Green” Policy can be found on our website. For packaging details, go to our website.
Marking Information

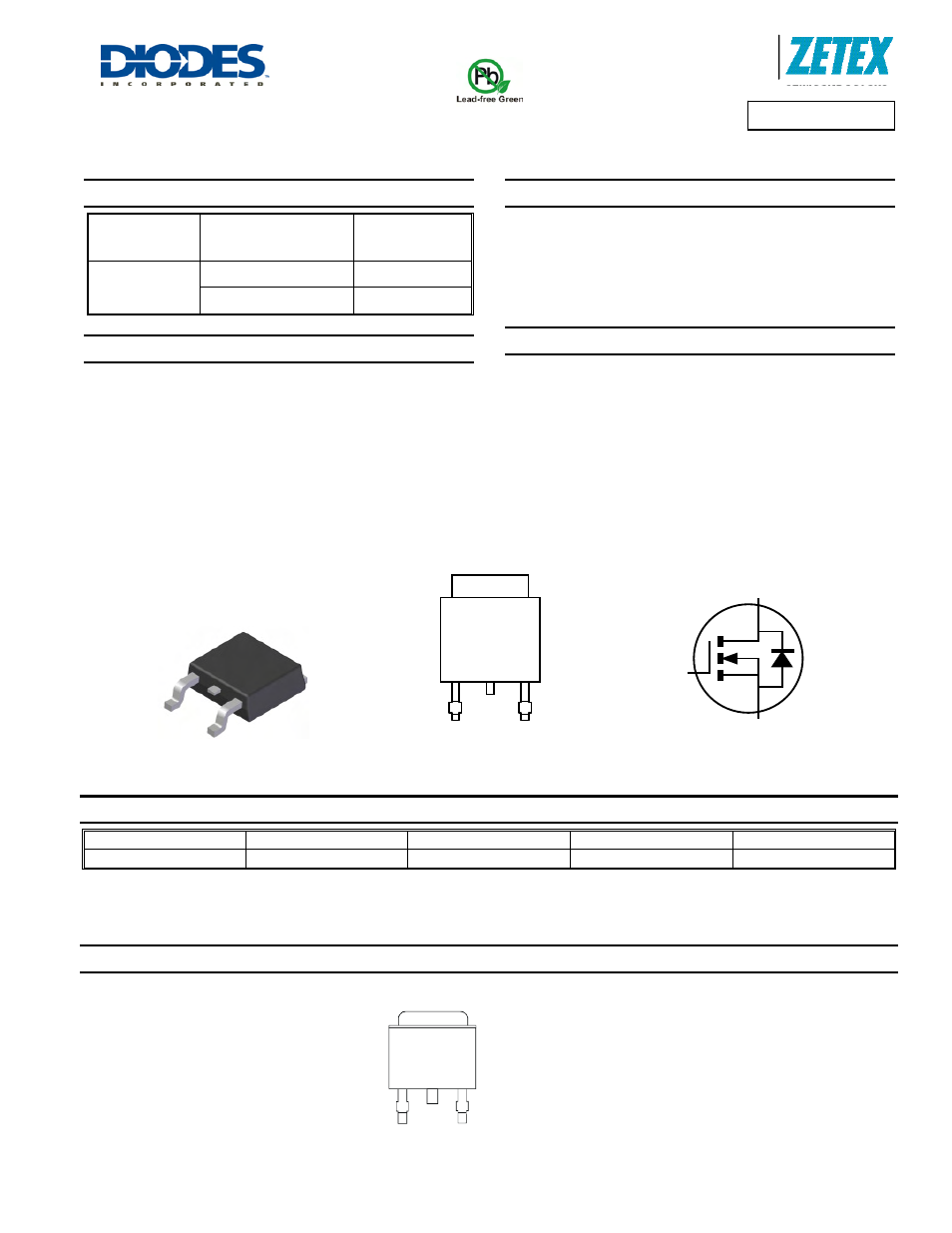

Top View
Pin Out – Top View
Equivalent Circuit
D
S
G
G
S
D
D
TO252-3L
ZXMN
10A09
YYWW
ZXMN = Product Type Marking Code, Line 1
10A09 = Product Type Marking Code, Line 2
YYWW = Date Code Marking
YY = Year (ex: 09 = 2009)
WW = Week (01-52)
