ZXMN10A07Z

Document number DS33565 Rev. 7- 2

1 of 7

www.diodes.com

June 2012

© Diodes Incorporated

ADVAN

CE I

N

F

O

RM

ATI

O

N

A Product Line of

Diodes Incorporated

ZXMN10A07Z



100V N-CHANNEL ENHANCEMENT MODE MOSFET IN SOT89 PACKAGE

Product Summary

V

(BR)DSS

R

DS(on)

Max

I

D

max

T

A

= 25

°C

(Note 6)

100V

700m

Ω @ V

GS

= 10V

1.4A

900m

Ω @ V

GS

= 6V

1.2A

Description and Applications

This MOSFET has been designed to minimize the on-state resistance
(R

DS(on)

) and yet maintain superior switching performance, making it

ideal for high efficiency power management applications.

DC-DC Converters

Power Management functions

Motor control

Disconnect switches

Features and Benefits

• Low

On-Resistance

• Low

Threshold

Fast Switching Speed

Low Gate Drive

Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

• Case:

SOT89

Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish

Weight: 0.052 grams (approximate)














Ordering Information

(Note 4)

Product

Marking

Reel size (inches)

Tape width (mm)

Quantity per reel

ZXMN10A07ZTA 7N10

7

12

1,000

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen and Antimony free,"Green" and Lead-Free.

3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com



Marking Information













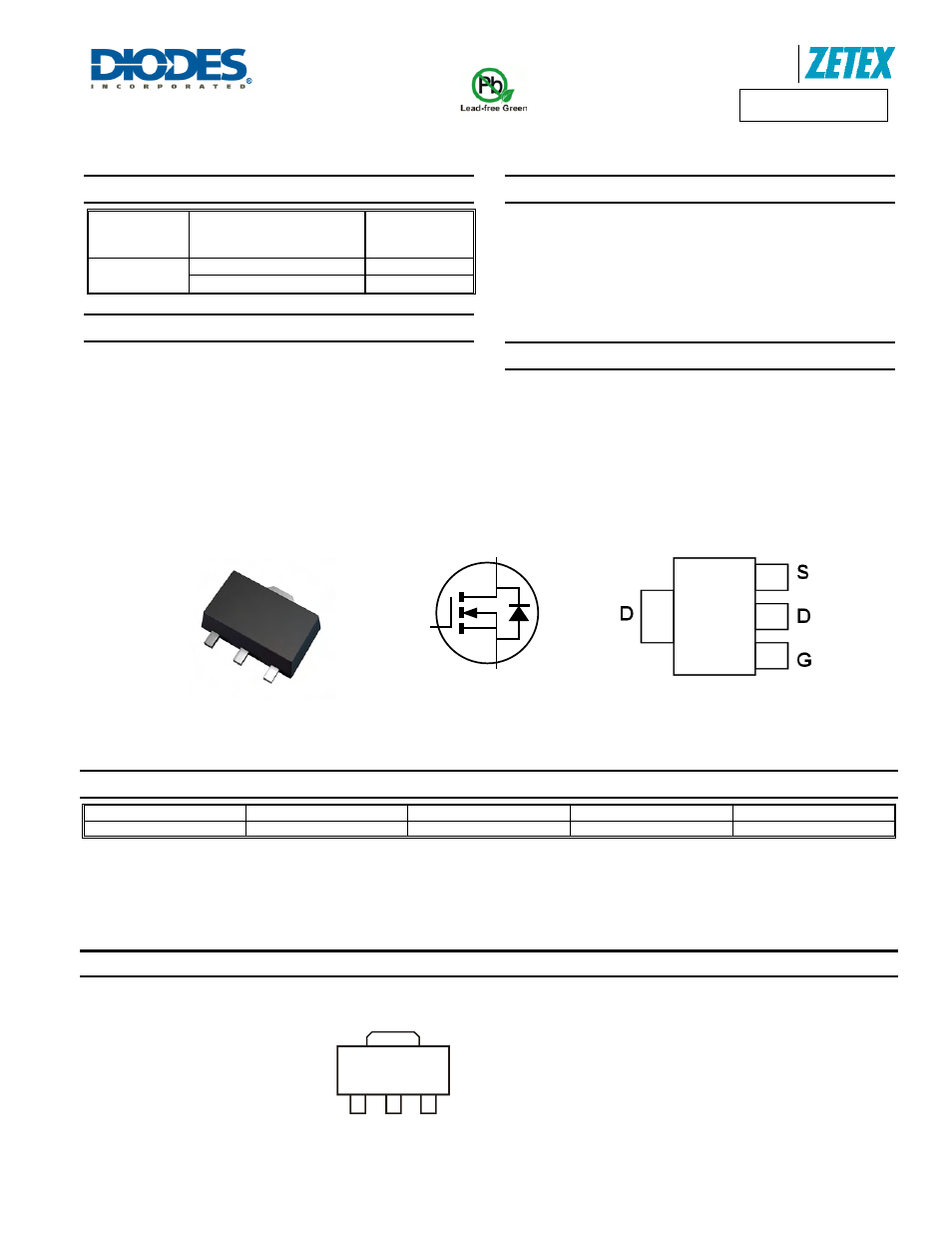

Top View

SOT89

Device symbol

Top View

Pin-Out

7N10 = Product type Marking Code

D

S

G

7N10
