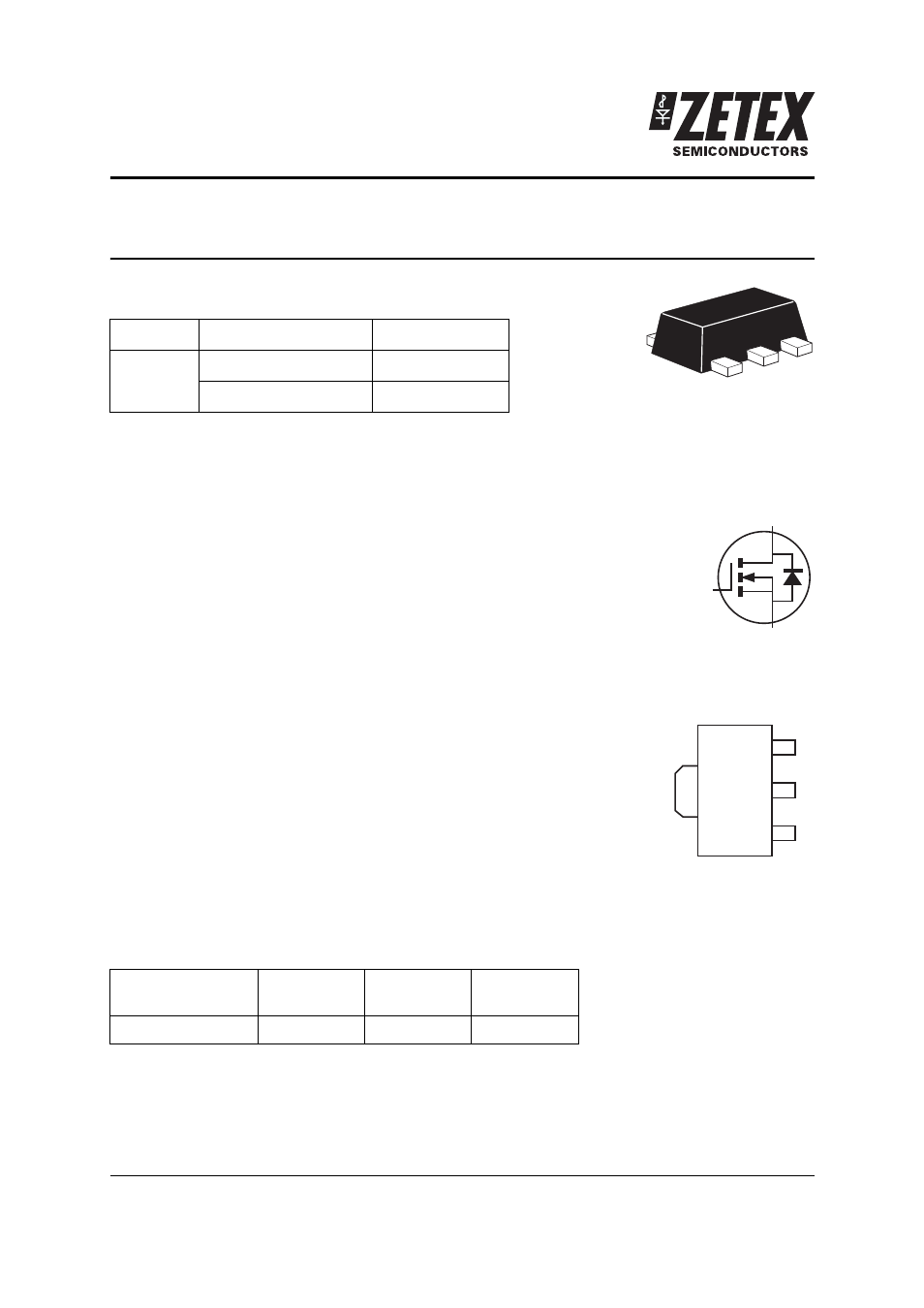

ZXMN6A07Z
60V SOT89 N-channel enhancement mode mosfet
Summary
Description
This new generation trench MOSFET from Zetex utilizes a unique
structure combining the benefits of low on-state resistance with fast
switching speed.
Features
•
Low on-resistance
•
Fast switching speed
•
Low threshold
•
SOT89 package
Applications
•
DC-DC converters
•
Power management functions
•
Relay and solenoid driving
•
Motor control
Ordering information
Device marking
7N6
V
(BR)DSS
R
DS(on)
(
⍀)
I
D
(A)
60
0.250 @ V
GS
= 10V
2.5
0.350 @ V
GS
= 4.5V
2.1
Device
Reel size
(inches)
Tape width
(mm)
Quantity per
reel
ZXMN6A07ZTA
7
12
1,000
D
S
G
D
Top view
S
D
G
