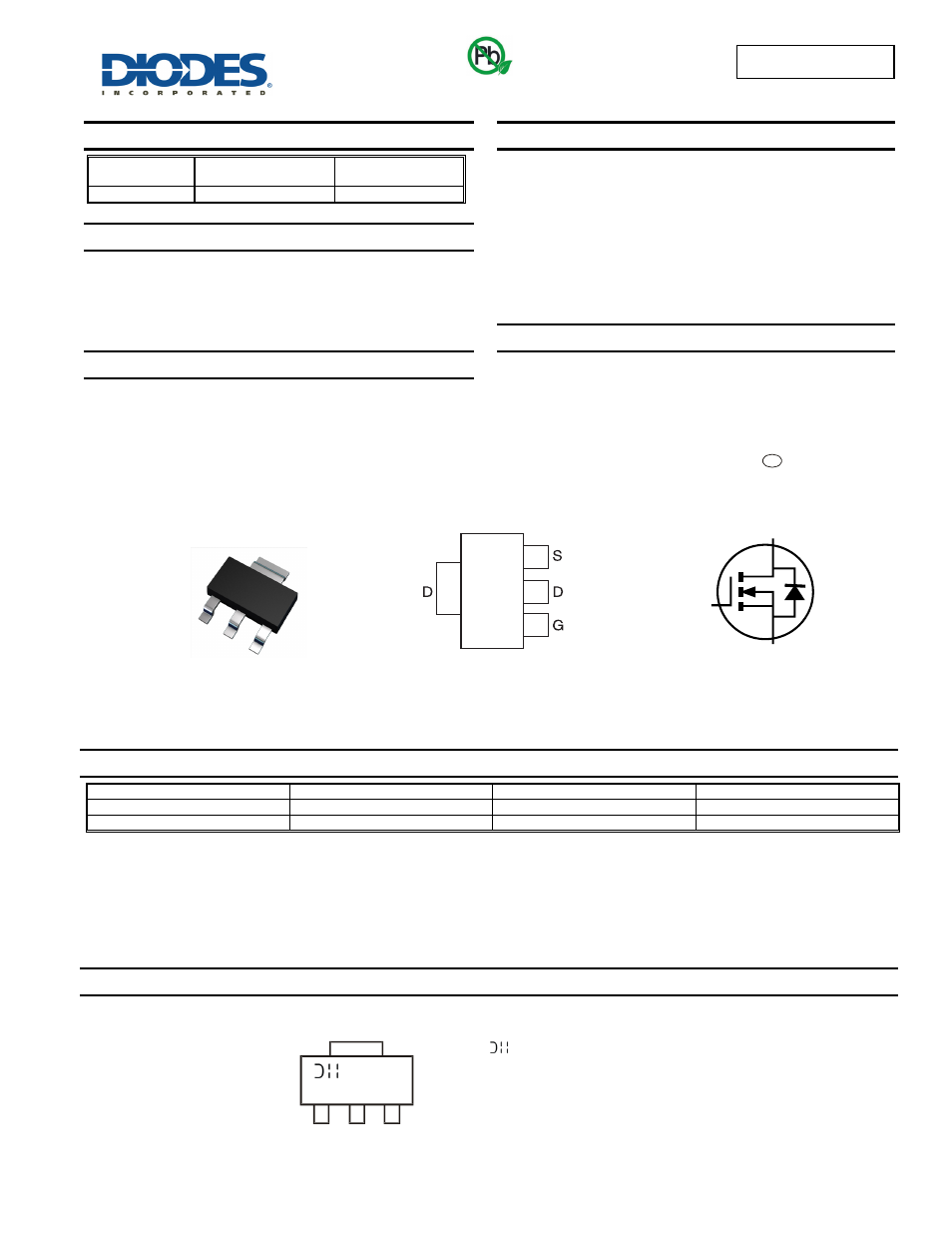

ZXMN4A06GQ
Document number: DS36694 Rev. 2 - 2
1 of 6
www.diodes.com
January 2014
© Diodes Incorporated
ZXMN4A06GQ
ADVANCED INFORMATION
D
S
G
40V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(ON)
I
D
T
A
= +25°C
40V 0.05Ω @ V
GS
= 10V 7A
Description
This new generation MOSFET has been designed to minimize the on-
state resistance (R
DS(ON)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
Applications
• DC-DC Converters
• Audio Output Stages
• Relay and Solenoid driving
• Motor Control
Features
• Low On-Resistance
• Fast Switching Speed
• Low Threshold
• Low Gate Drive
• Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
• PPAP Available
Mechanical Data
• Case: SOT223
• Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish - Matte Tin annealed over Copper lead frame.
Solderable per MIL-STD-202, Method 208
• Weight: 0.112 grams (approximate)
Ordering Information
(Note 4 & 5)
Part Number Compliance Case Packaging
ZXMN4A06GQTA Automotive SOT223 1,000/Tape & Reel
ZXMN4A06GQTC Automotive SOT223 4,000/Tape & Reel
Note: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_grade_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Equivalent Circuit
Top View
SOT223
Pin Out - Top View
e3
Green
N4A06
YWW
= Manufacturer’s Marking
N4A06 = Marking Code
YWW = Date Code Marking
Y = Year (ex: 3 = 2013)
WW = Week (01 - 53)
