ZXMD63N02X
DUAL 20V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(ON)
Package
I
D
T
A
= +25°C
(Notes 5 & 6)
20V
130m
Ω @ V
GS
= 4.5V
MSOP-8
2.5A
150m
Ω @ V
GS
= 2.7V
2.3A
Description
This MOSFET has been designed to minimize the on-state resistance
(R
DS(on)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Applications
• DC-DC
Converters
• Power Management functions
• Motor
Control
• Disconnect
Switches
Features
• Low
On-Resistance
• Low
Threshold
•
Fast Switching Speed
•
Low Gate Drive
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
MSOP-8
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish
•
Weight: 0.008 grams (approximate)
Ordering Information
(Note 4)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXMD63N02XTA ZXM63N02
7
12
1,000
ZXMD63N02XTC ZXM63N02
13
12
4,000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. Se information about Diodes Incorporated’s definitions of Halogen and Antimony free,"Green" and Lead-Free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
e3

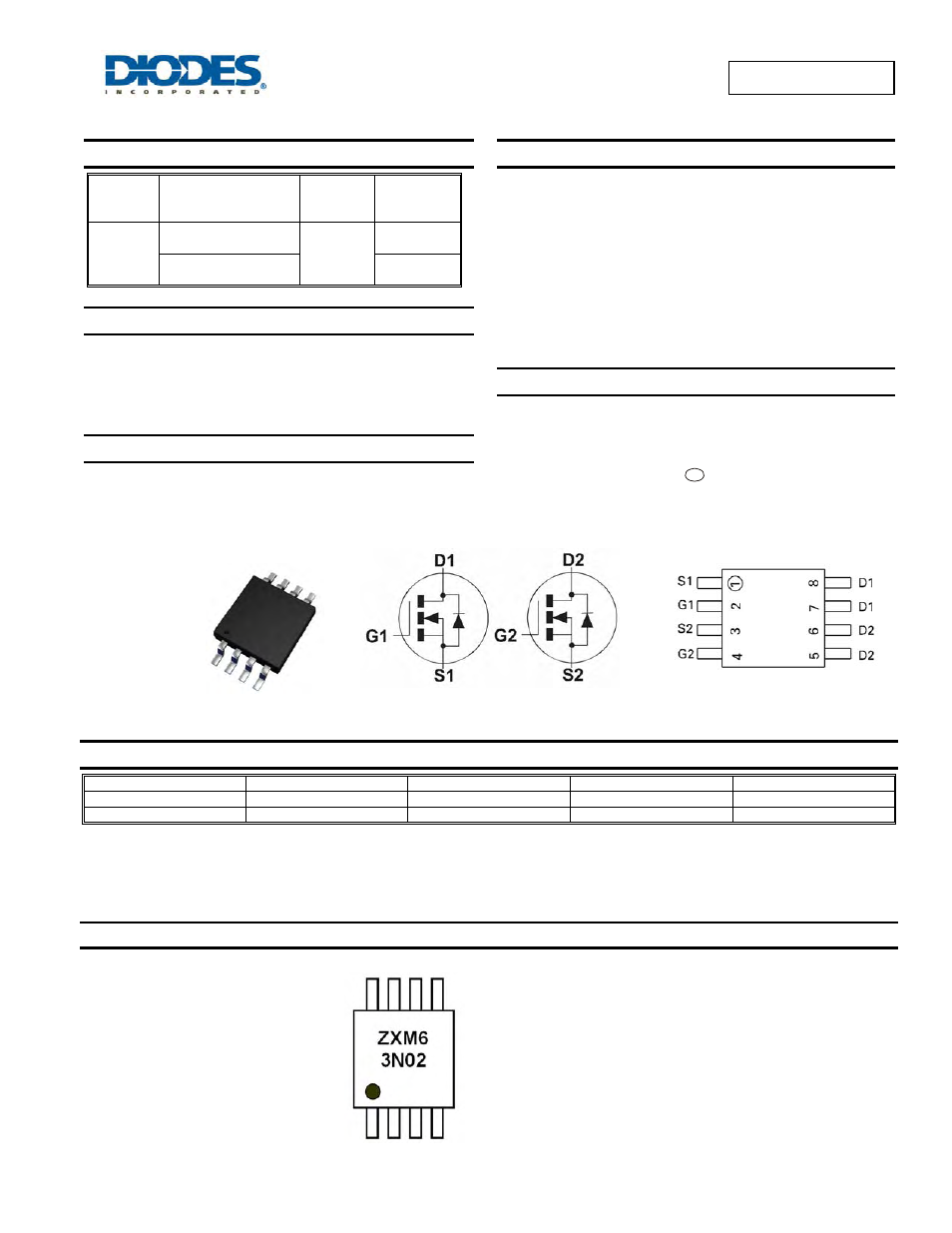

Top View
MSOP8
Device Symbol
Top View
Pin-Out
ZXM63N02 = Product type Marking Code
