SUMMARY
V
(BR)DSS
= 20V; R
DS(ON)
= 0.055 I
D
= 4.6A
DESCRIPTION
This new generation of TRENCH MOSFETs from Zetex utilizes a unique structure
that combines the benefits of low on-resistance with fast switching speed. This
makes them ideal for high efficiency, low voltage, power management
applications.
FEATURES
•
Low on-resistance
•
Fast switching speed
•
Low threshold
•
Low gate drive
•
SOT23-6 package
APPLICATIONS
•
DC - DC Converters
•
Power Management Functions
•
Disconnect switches
•
Motor control
DEVICE MARKING
•
2A3
ZXMN2A03E6
ISSUE 4 - SEPTEMBER 2005
1
20V N-CHANNEL ENHANCEMENT MODE MOSFET
DEVICE REEL
SIZE
TAPE
WIDTH
QUANTITY
PER REEL
ZXMN2A03E6TA 7” 8mm 3000 units
ZXMN2A03E6TC 13” 8mm 10000 units
ORDERING INFORMATION

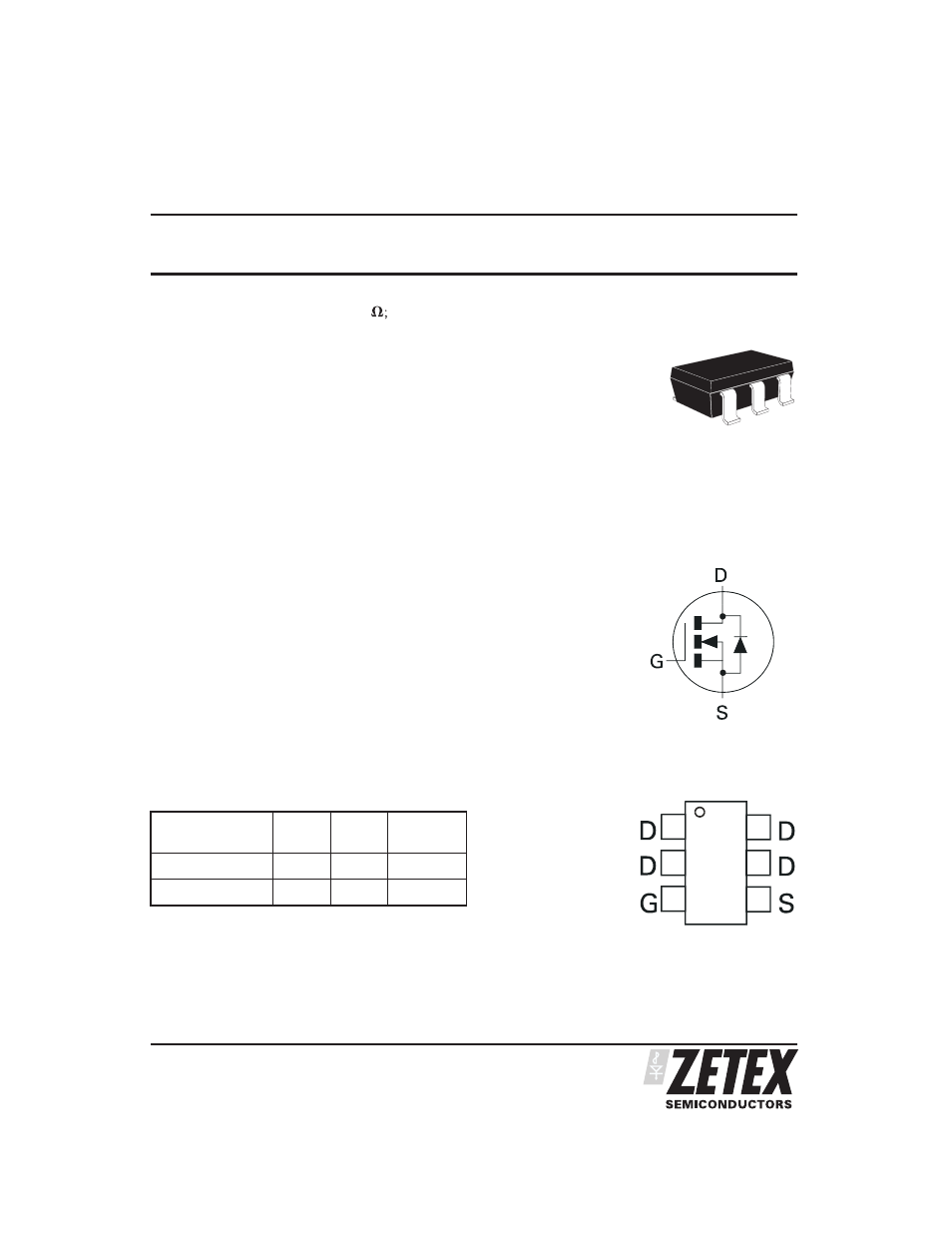

Top View
PINOUT
SOT23-6
