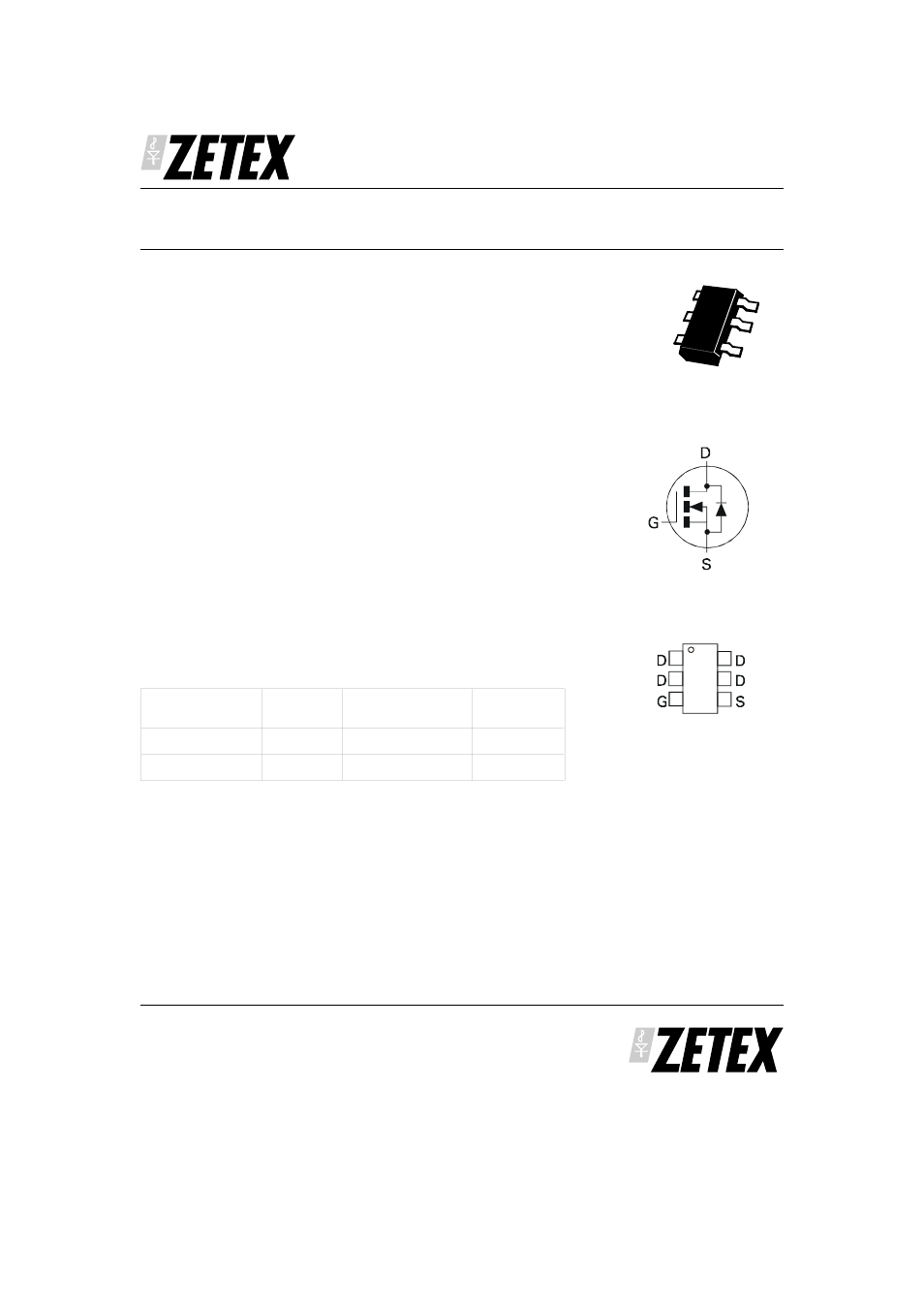

Top View
SUMMARY
V
(BR)DSS
=20V; R
DS(ON)
= 0.1
⍀ ;
I
D
=3.2A
DESCRIPTION
This new generation of high density MOSFETs from Zetex utilise a unique
structure that combines the benefits of low on-resistance with fast switching
speed. This makes them ideal for high efficiency, low voltage, power
management applications.
FEATURES
•
Low on-resistance
• Fast switching speed
• Low threshold
•
Low gate drive
• SOT23-6 package
APPLICATIONS
• DC - DC Converters
• Power Management Functions
•
Disconnect switches
• Motor control
ORDERING INFORMATION
DEVICE REEL SIZE
(inches) TAPE WIDTH (mm) QUANTITY
PER REEL
ZXM62N02E6TA 7 8mm embossed 3000 units
ZXM62N02E6TC 13 8mm embossed 10000 units
DEVICE MARKING
•
2N02
20V N-CHANNEL ENHANCEMENT MODE MOSFET
SOT23-6
ZXM62N02E6
1
ISSUE
1 - JUNE 2004
