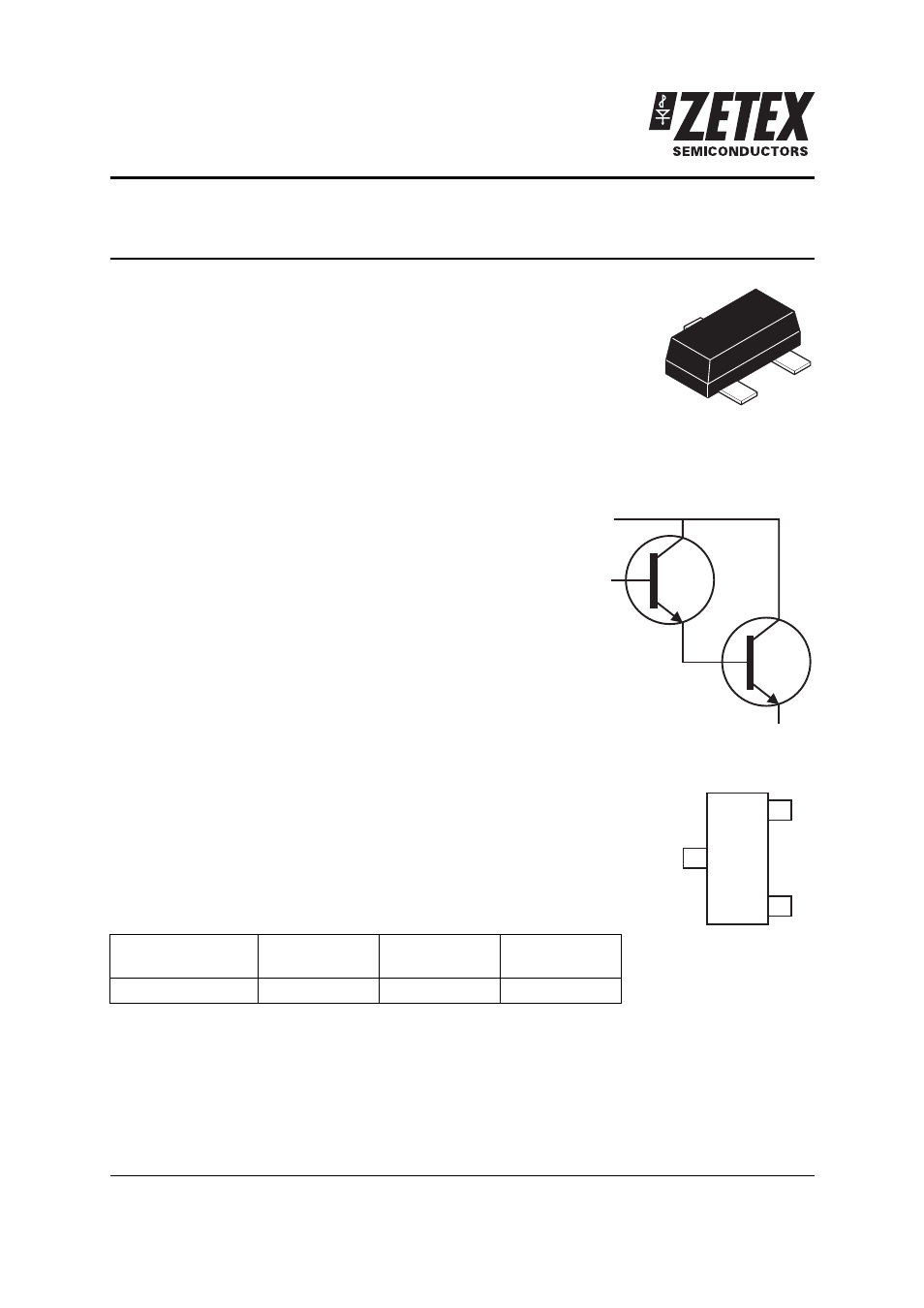

ZXTN04120HFF
120V, SOT23F, NPN medium power Darlington transistor
Summary
BV
CEO
> 120V
I
C(cont)
= 1A
V
CE(sat)
< 1.5V @ 1A
P
D
= 1.5W
Complementary part number ZXTP05120HFF
Description
This high performance NPN Darlington transistor is housed in
the small outline SOT23 flat package for applications where
space is at a premium.
Features
•
Darlington transistor
•
120 volt
•
1 amp continuous rating
•
Small outline surface mount SOT23 flat package
Applications
•
Lamp, relay and solenoid drive
•
Lighting
Ordering information
Device marking
1F6
Device
Reel size
(inches)
Tape width
(mm)
Quantity
per reel
ZXTN04120HFFTA
7
8
3000
C
E
B
C
E
B
Pinout - top view
