ZXTN4004Z
150V NPN LED DRIVING TRANSISTOR IN SOT89
Features
• BV
CEO
> 150V
•
h
FE
> 100 for I
C
= 150mA, V
CE
= 0.25V
•
Maximum continuous current I
C
= 1A
•
Lead Free, RoHS Compliant (Note 1)
•
Halogen and Antimony Free "Green" Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Applications
•
LED TV backlight
Mechanical Data
• Case:
SOT89
•
Case material: molded Plastic. “Green” molding Compound.
•
UL Flammability Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish
•
Weight: 0.052 grams (Approximate)
Ordering Information
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXTN4004ZTA 1R8
7
12
1000
units
Notes:
1. No purposefully added lead.
2. “Green” devices, Halogen and Antimony Free, Diodes Inc’s “Green” Policy can be found on our website at
Marking Information
1R8 = Product type Marking Code

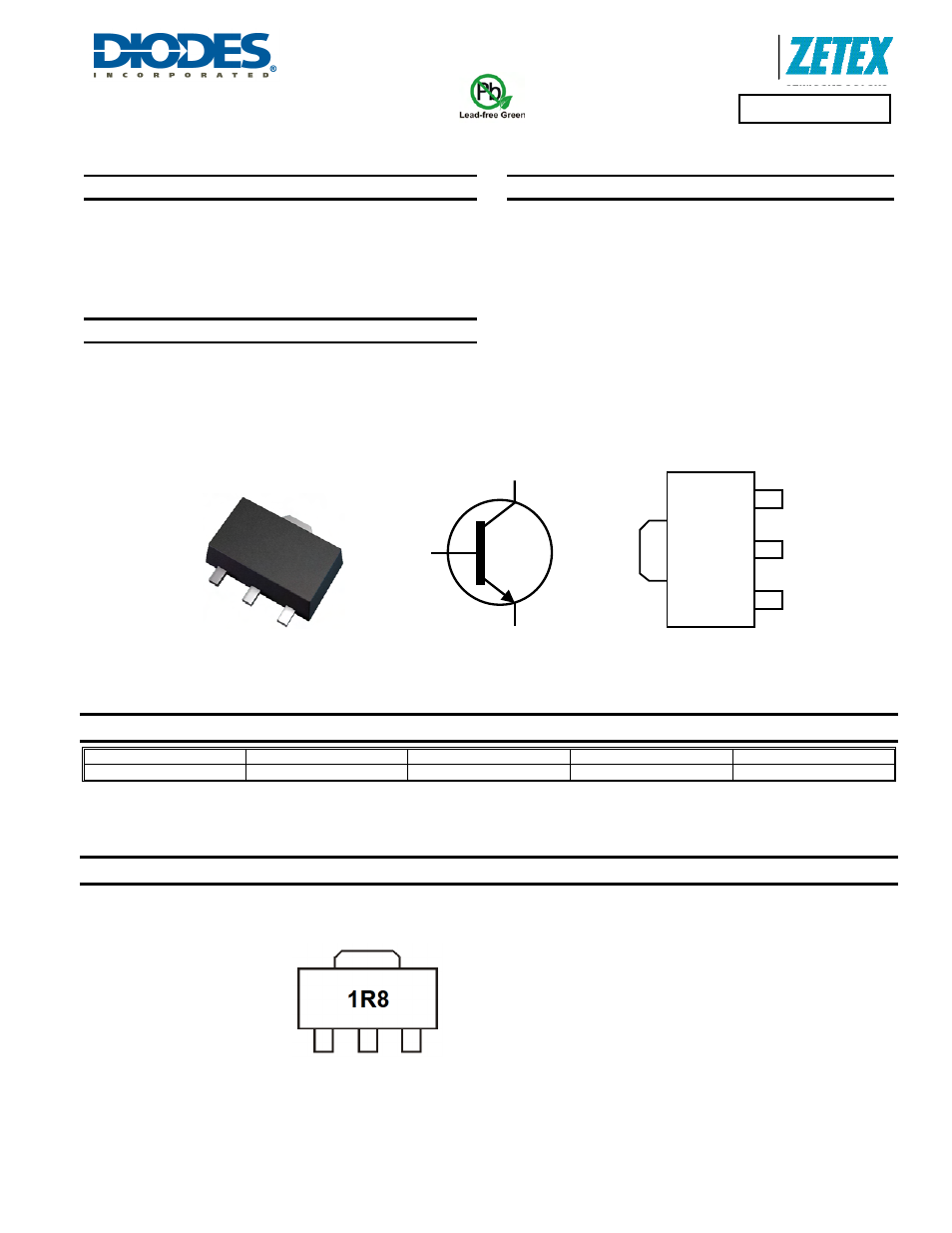

Top View
Device Symbol
Top View
Pin-Out
SOT89
C
E
C
B
C
E
B
