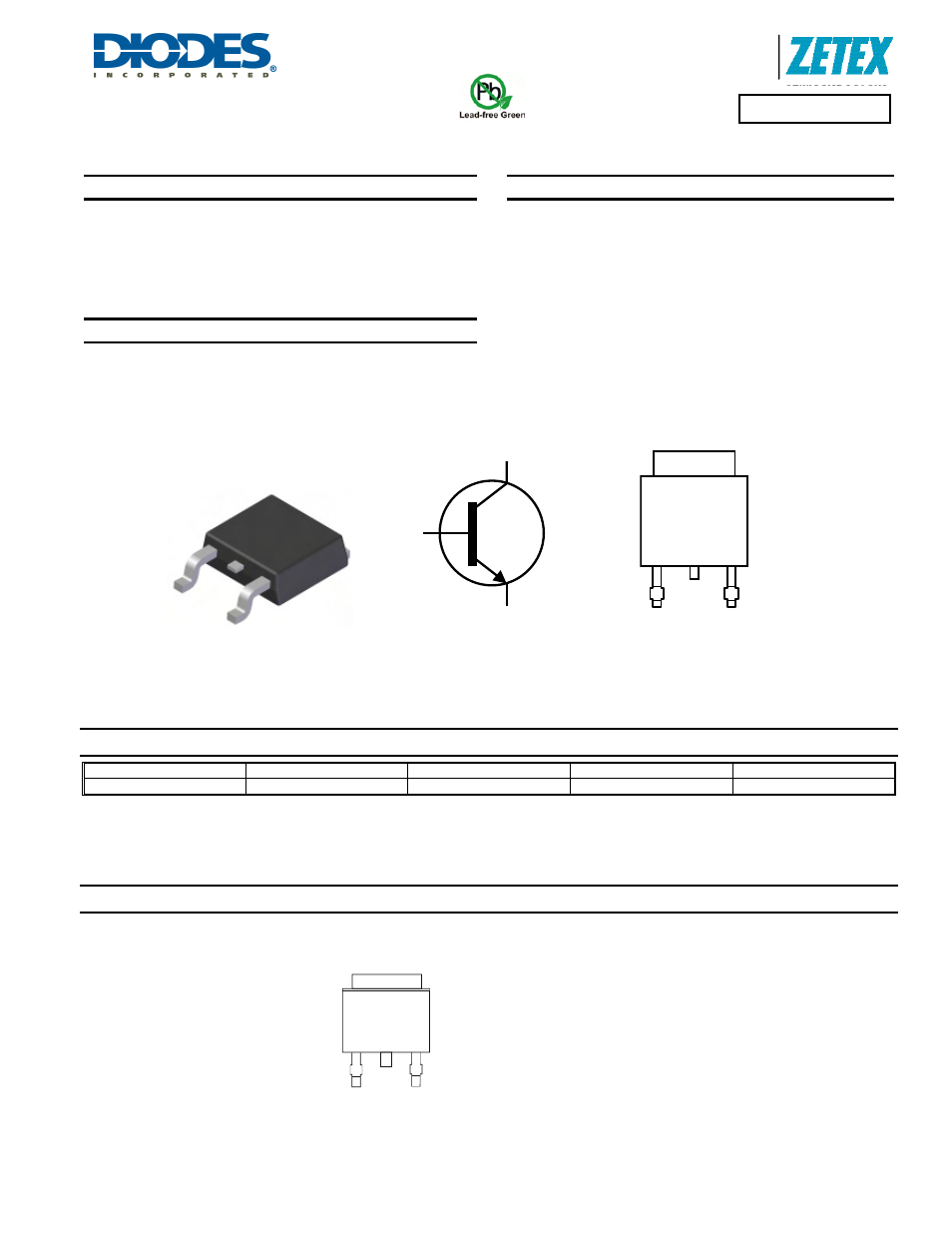

ZXTN4004K
Document Number: DS35458 Rev: 1 - 2
1 of 5
December 2011
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTN4004K
150V NPN LED DRIVING TRANSISTOR IN TO252
Features
• BV
CEO
> 150V
•
h
FE
> 100 for I
C
= 150mA, V
CE
= 0.25V
•
I
C (cont)
= 1A
•
Lead Free, RoHS Compliant (Note 1)
•
Halogen and Antimony Free "Green" Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Applications
•
LED TV backlight
Mechanical Data
• Case:
TO252
•
Case material: molded Plastic. “Green” molding Compound.
•
UL Flammability Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish
•
Weight: 0.34 grams (Approximate)
Ordering Information
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXTN4004KTC ZXTN4004
13
16
2,500
Notes:
1. No purposefully added lead.
2. “Green” devices, Halogen and Antimony Free, Diodes Inc’s “Green” Policy can be found on our website at
Marking Information
Top View
Device symbol
Top View
Pin Out
TO252
ZXTN4004 = Product Marking Code
YYWW = Date Code Marking
YY = Last Digit of Year (ex: 10 = 2010)
WW = Week Code (01 – 53)
C
E
B
ZXTN
4004
YYWW
B
E
C
C
