Diodes ZTX855 - Manual

ZTX855
Document Number DS33136 Rev. 4 - 2
1 of 7
www.diodes.com
May 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZTX855
150V NPN MEDIUM POWER TRANSISTOR IN E-LINE
Features
•
BV
CEO
> 150V
• I
C
= 4A High Continuous Collector Current
• I
CM
= 10A Peak Pulse Current
• T
J
up to 200°C for High Temperature Operation
•
Low Saturation Voltage < 100mV @ 1A
•
P
D
= 1.2W Power dissipation
• Complementary NPN Type: ZTX955
• Lead-Free Finish; RoHS compliant (Note 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case: E-Line (TO-92 Compatible)
• Case Material: molded plastic, “Green” Molding Compound
•
UL Flammability Classification Rating 94V-0
• Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
•
Weight: 0.159 grams (approximate)
Ordering Information
(Note 4)
Product Marking Package Leads Quantity
ZTX855STZ ZTX855 E-Line Joggled 2,000 taped per Ammo Box
ZTX855 ZTX855 E-Line Straight 4,000 loose in a Box
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

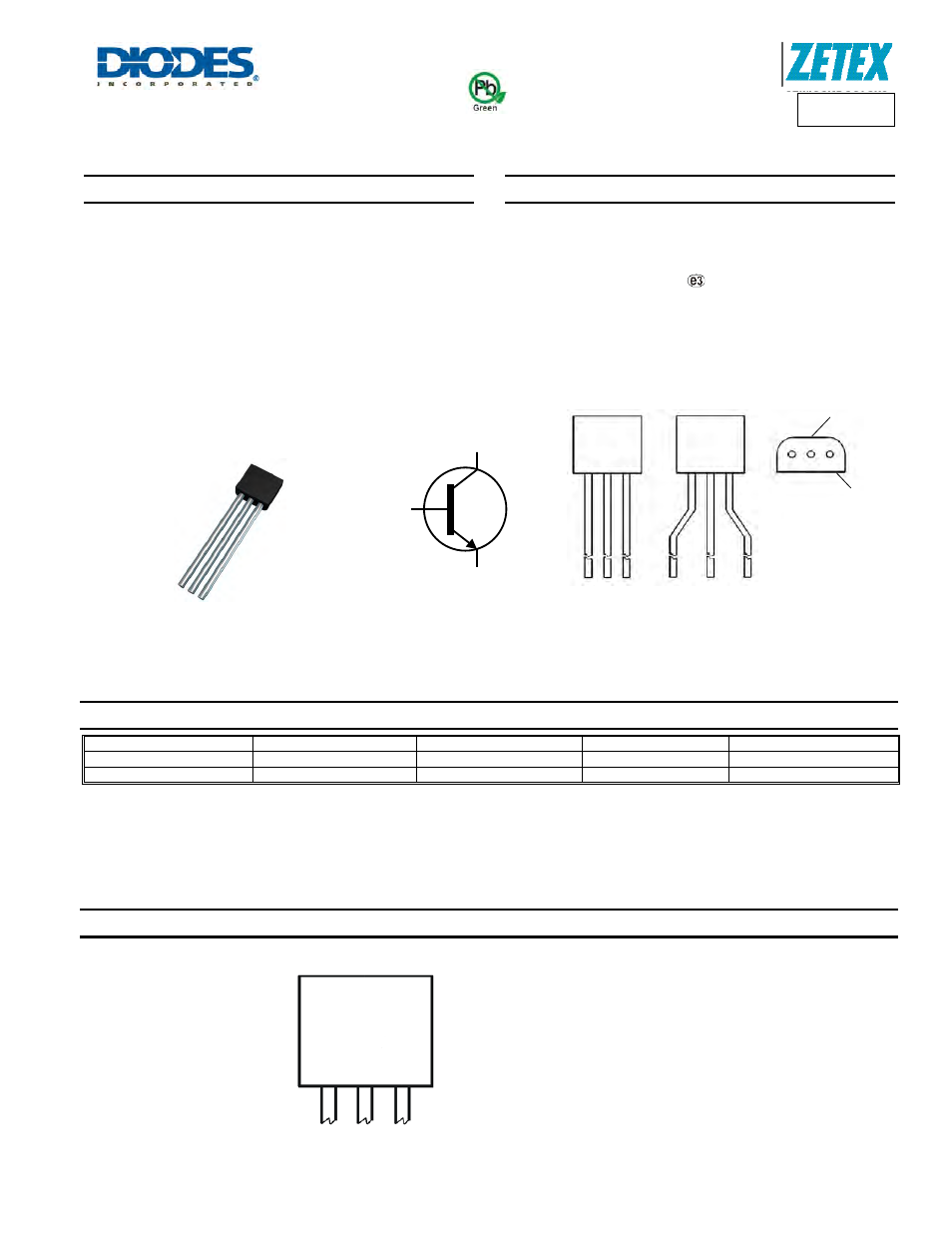

Marking Information
ZTX855 = Product type Marking Code
Flat Face View
Device Symbol Pin-Out Configuration
E-Line
(TO-92 Compatible)
ZTX
855
Rounded Face View
Rounded Face View
Ejection Mark
on Flat Face
Bottom View
B C E B C E
B C E
Part Mark on
Rounded Face
C
E
B
