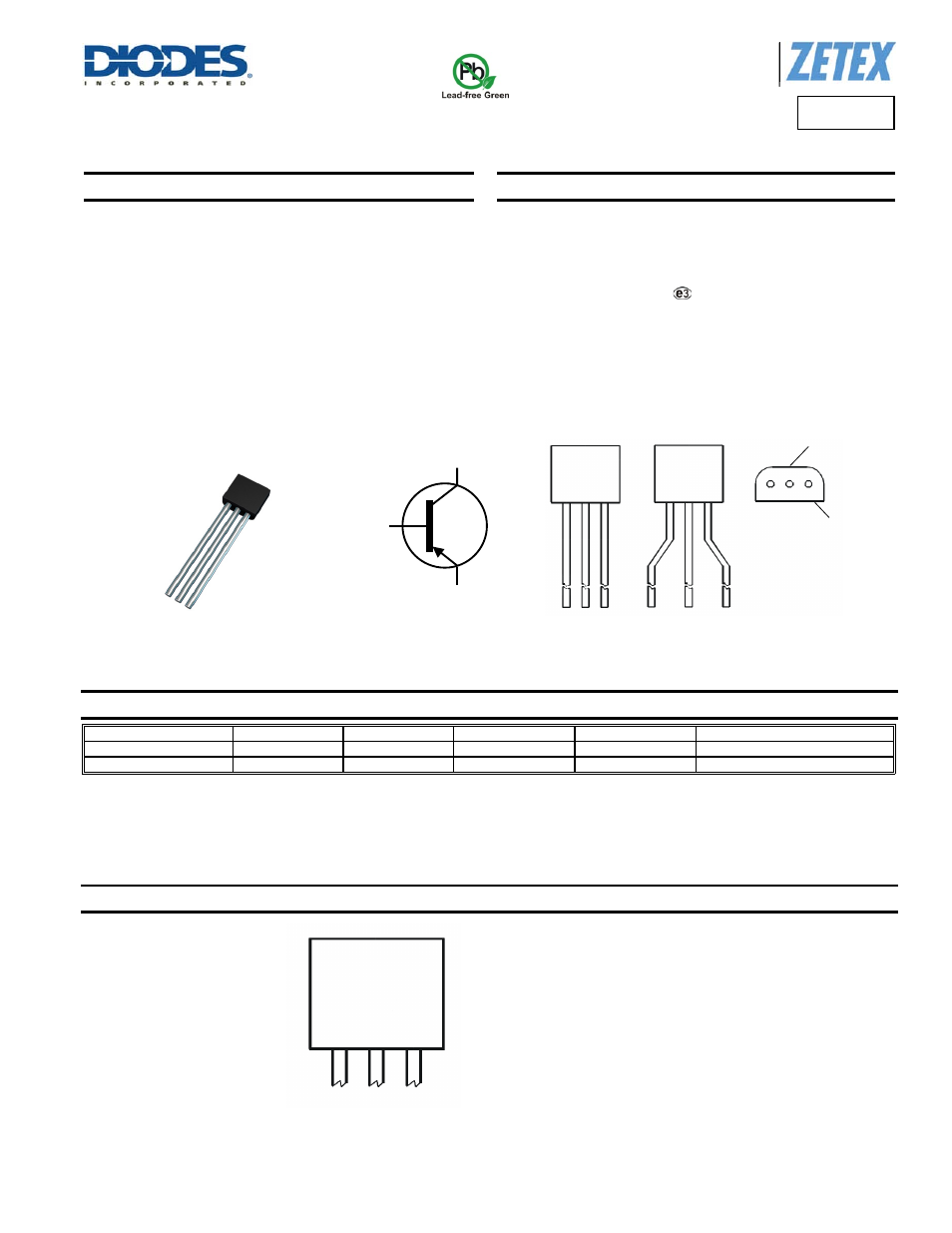

ZTX758
Document number: DS33299 Rev. 2 - 2
1 of 7
August 2013
© Diodes Incorporated
ZTX758
A Product Line of
Diodes Incorporated
400V PNP MEDIUM POWER HIGH VOLTAGE TRANSISTOR IN E-LINE
Features
BV
CEO
> -400V
I
C
= -0.5A High Continuous Collector Current
I
CM
= -1A Peak Pulse Current
T
J
up to +200°C for High Temperature Operation
Low Saturation Voltage < -0.25V @ -50mA
P
D
= 1W Power dissipation
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: E-Line (TO-92 Compatible)
Case Material: molded plastic, “Green” Molding Compound
UL Flammability Classification Rating 94V-0
Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.159 grams (approximate)
Ordering Information
(Notes 4)
Part Number
Compliance
Marking
Case
Leads
Quantity
ZTX758
AEC-Q101
ZTX758
E-Line
Straight
4,000 loose in a Box
ZTX758STZ
AEC-Q101
ZTX758
E-Line
Joggled
2,000 taped per Ammo Box
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Flat Face View
Device Symbol
Pin-Out Configuration
ZTX758 = Product Type Marking Code
E-Line
(TO-92 Compatible)
ZTX
758
Rounded Face View
Rounded Face View
Ejection Mark
on Flat Face
Bottom View
B
C
E
B
C
E
B
C
E
Part Mark on
Rounded Face
C
E
B
