ZXT1053AK
75V NPN LOW SATURATION MEDIUM POWER TRANSISTOR
Features
BV
CEO
> 75V
I
C
= 5A high Continuous Collector Current
Up to 10A Peak Current
R
SAT
= 70mΩ for a low equivalent On-Resistance
Low Saturation Voltage
h
FE
specified up to 10A for a high gain hold up
Lead-Free Finish; RoHS compliant (Note 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP capable (Note 4)
Mechanical Data
Case: TO252 (DPAK)
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads; Solderable per MIL-
STD-202, Method 208
Weight: 0.34 grams (approximate)
Application
DC – DC converters
Power
Switches
Motor
Control
Automotive
Circuits
Inverter
Circuits
Ordering Information
(Notes 4 & 5)
Product
Compliance
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXT1053AKTC AEC-Q101
ZXT1053A
13
16
2,500
ZXT1053AKQTC Automotive ZXT1053A
13
16
2,500
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q10x qualified and are PPAP capable. Automotive, AEC-Q10x and standard products are electrically and thermally the
same, except where specified. For more information, please refer to
5. For packaging details, go to our website at

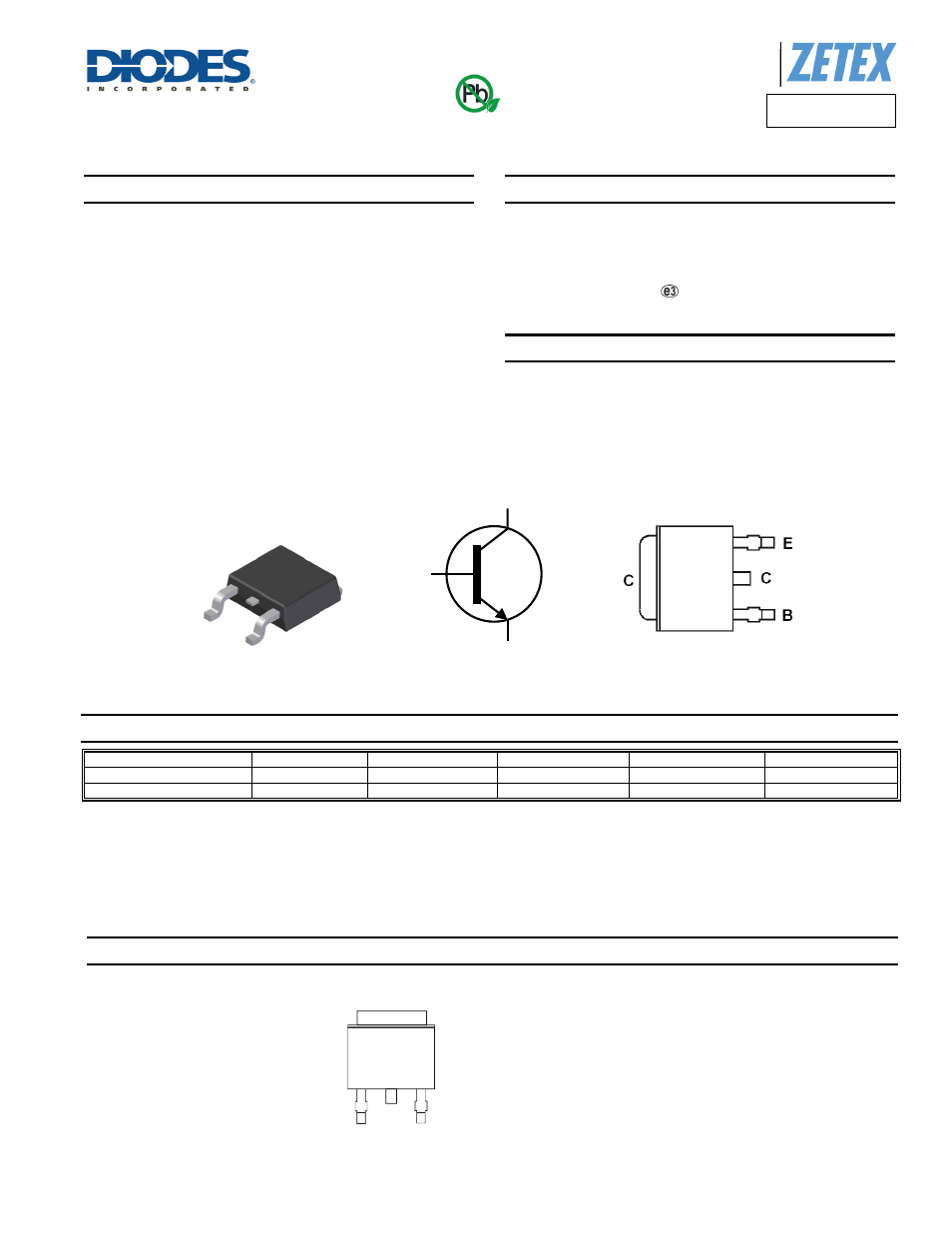

Marking Information
Top View
Device Symbol
Top View
Pin-Out
ZXT1053AK = Product Type Marking Code
YYWW = Date Code Marking
YY = Last Digit of Year (ex: 09 = 2009)
WW = Week Code (01 – 53)
TO252
YYWW
ZXT
1053A
Green
C
E
B
