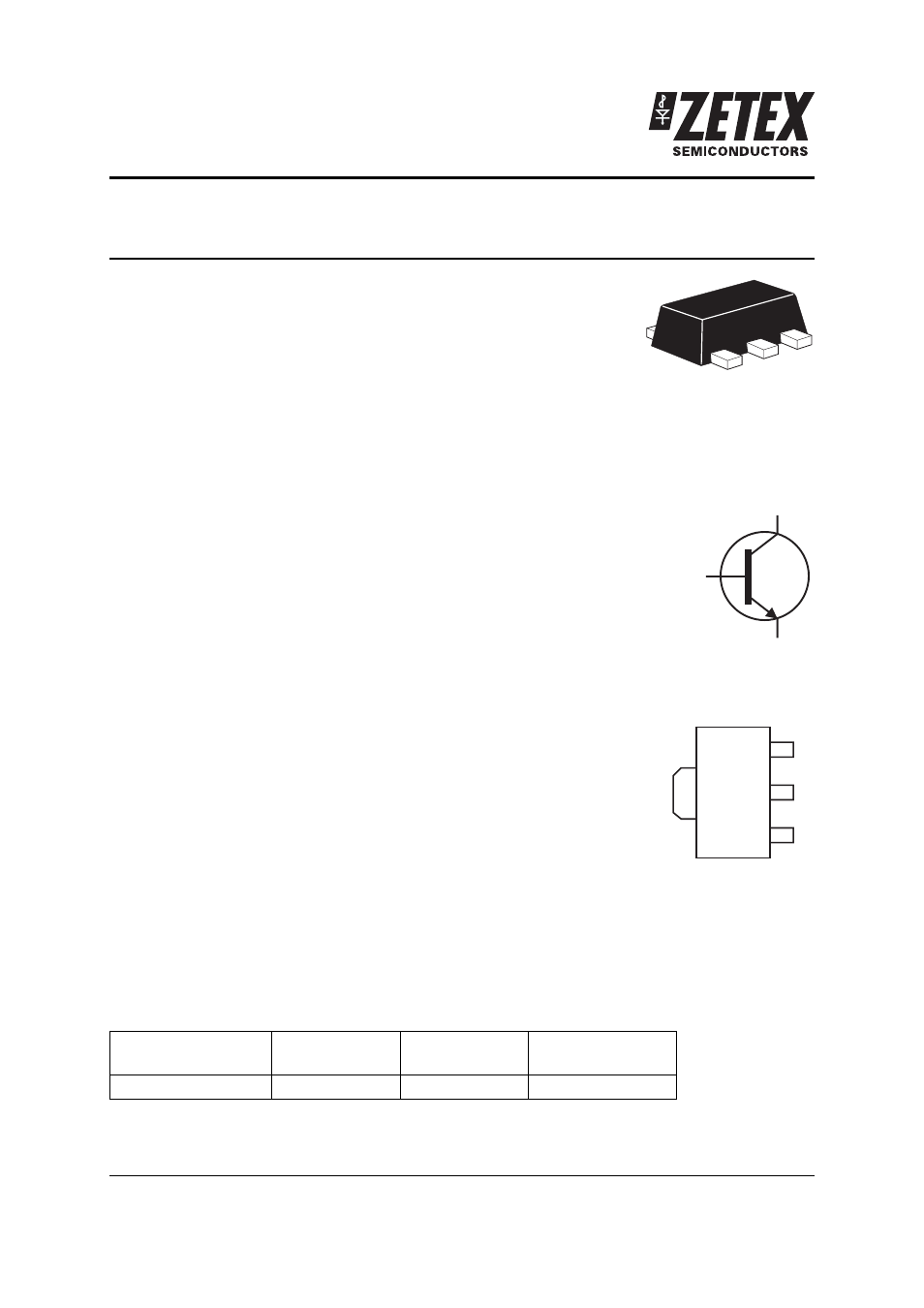

ZXTN25060BZ
60V, SOT89, NPN medium power transistor
Summary
BV
CEX
> 150V
BV
CEO
> 60V
BV
ECO
> 6V
I
C(cont)
= 5A
V
CE(sat)
< 70mV @ 1A
R
CE(sat)
= 48m
⍀
P
D
= 2.4W
Description
Packaged in the SOT89 outline this new low saturation 60V NPN
transistor offers extremely low on state losses making it ideal for use in
DC-DC circuits and various driving and power management functions.
Features
•
Extremely low equivalent on resistance; R
CE(sat)
= 46m
⍀ at 5A
•
5 amps continuous current
•
Up to 10 amps peak current
•
Very low saturation voltages
•
Excellent h
FE
characteristics
•
6V reverse blocking capability
Applications
•
Emergency lighting circuits
•
Motor driving (including DC fans)
•
Solenoid, relay and actuator drivers
•
DC-DC modules
•
Backlight inverters
•
Power switches
•
MOSFET gate drivers
Ordering information
Device marking
1C7
Device
Reel Size
(inches)
Tape width
(mm)
Quantity per reel
ZXTN25060BZTA
7
12
1000
C
E
B
C
E
Pinout - top view
C
B
