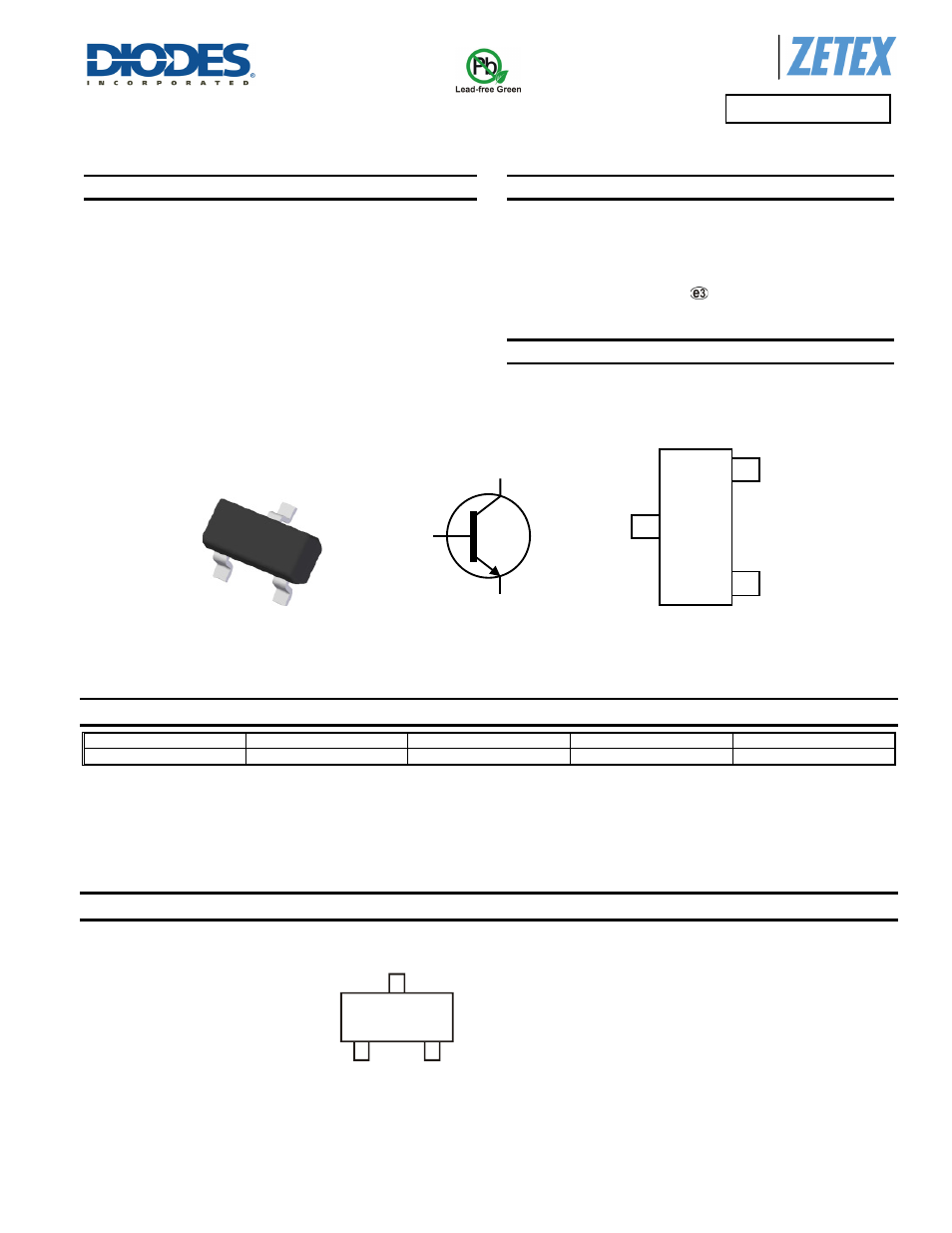

ZXTN25100BFH
100V NPN LOW SATURATION TRANSISTOR IN SOT23
Features
• BV
CEO
> 100V
• BV
CEX
> 170V forward blocking voltage
• BV
ECO
> 6V reverse blocking voltage
•
I
C
= 3A high Continuous Collector Current
•
Low saturation voltage, V
CE(SAT)
< 80mV @1A
•
R
CE(SAT)
= 67mΩ for a low equivalent On-Resistance
•
1.25W Power dissipation
•
h
FE
specified up to 3A for high current gain hold up
•
Complementary PNP Type: ZXTP25100BFH
•
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT23
•
Case Material: molded plastic, “Green” molding compound
•
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
•
Weight 0.008 grams (approximate)
Applications
•
Lamp relay and solenoid drivers
•
General switching in automotive and industrial applications
•
Motor drive and control
Ordering Information
(Note 4)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXTN25100BFHTA 021
7
8
3,000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
021 = Product Type Marking Code
SOT23
Top View
Pin-Out
Top View
Device Symbol
C
E
B
C
E
B
021
