Diodes ZXTN25060BFH User Manual
Summary, Description, Features

© Zetex Semiconductors plc 2006

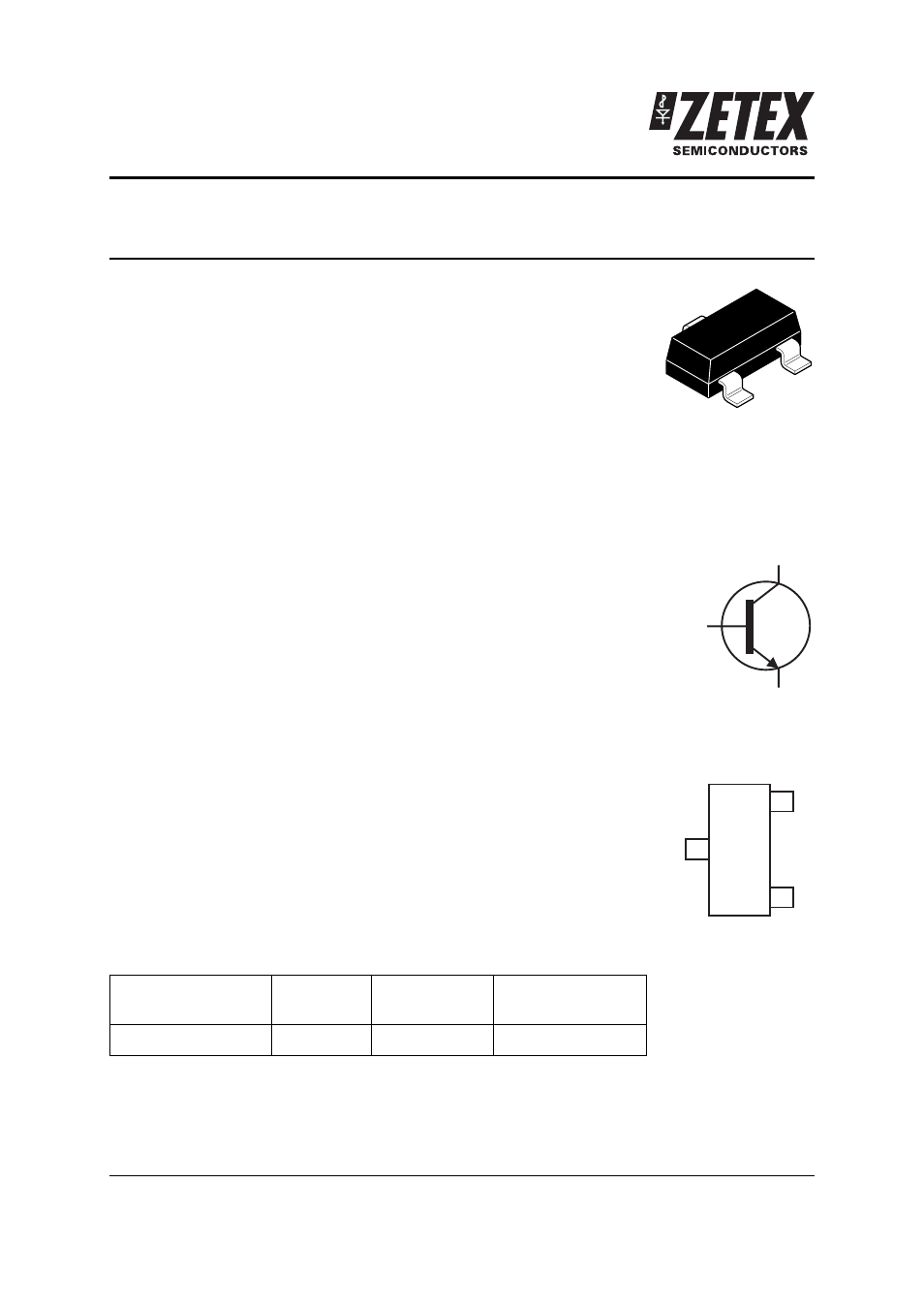

ZXTN25060BFH
60V, SOT23, NPN medium power transistor
Summary
BV
CEX
> 150V
BV
CEO
> 60V
BV
ECO
> 6V
I
C(cont)
= 3.5A
V
CE(sat)
< 65 mV @ 1A
R
CE(sat)
= 43 m
⍀
P
D
= 1.25W
Complementary part number ZXTP25060BFH
Description
Advanced process capability and package design have been used to
maximize the power handling and performance of this small outline
transistor. The compact size and ratings of this device make it ideally
suited to applications where space is at a premium.
Features
•
High power dissipation SOT23 package
•
High peak current
•
Low saturation voltage
•
150V forward blocking voltage
Applications
•
Lamp, relay and solenoid drivers
•
General switching in automotive and industrial applications
•
Motor drive and control
Ordering information
Device marking
019
Device
Reel size
(inches)
Tape width
(mm)
Quantity per reel
ZXTN25060BFHTA
7
8
3,000
C
E
B
C
E
Pinout - top view
B
