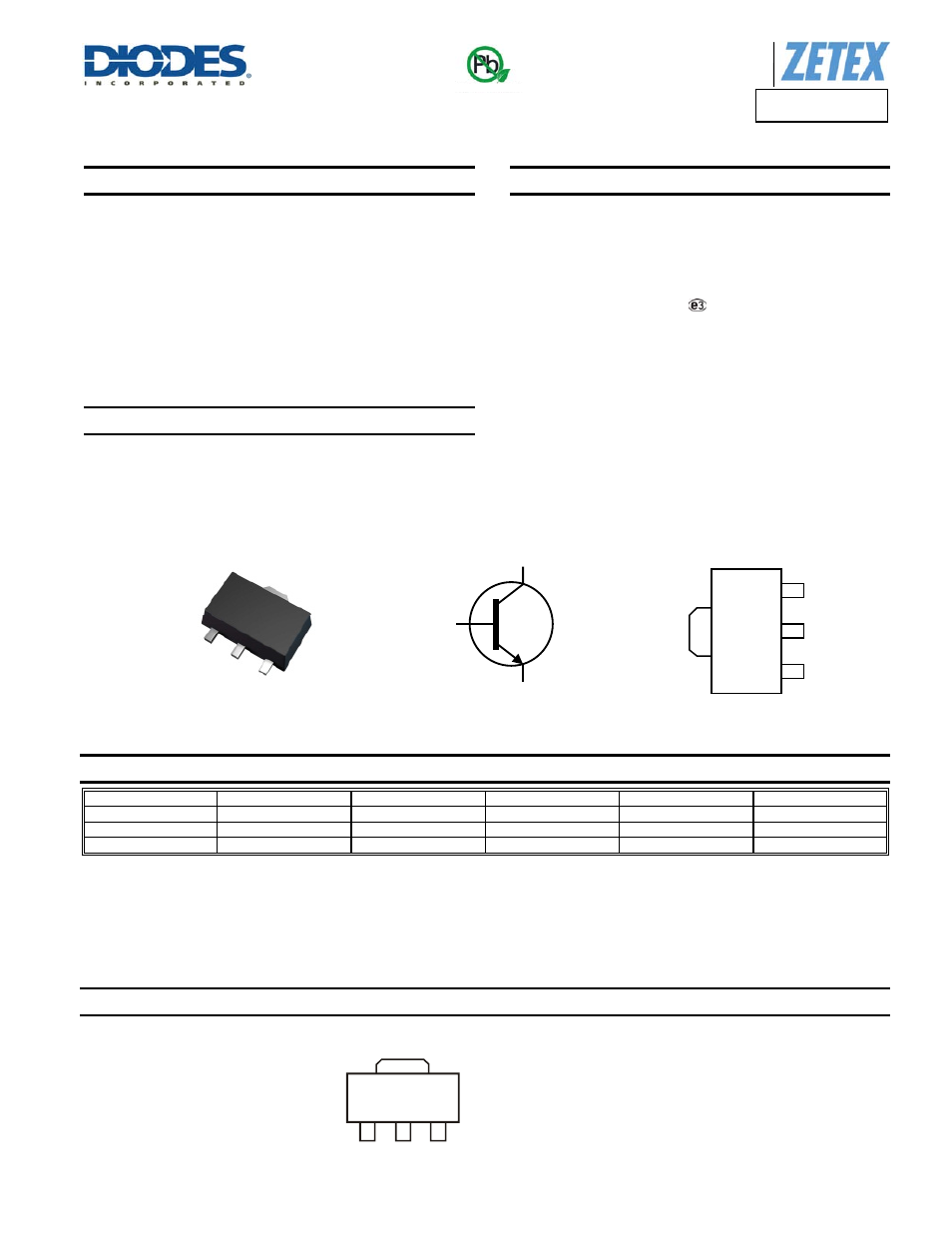

ZXTN2010Z
Da
tasheet Number: DS33661 Rev. 4 - 2
1 of 7
May 2013
© Diodes Incorporated
ZXTN2010Z
A Product Line of
Diodes Incorporated
60V NPN LOW SATURATION MEDIUM POWER TRANSISTOR IN SOT89
Features
BV
CEO
> 60V
I
C
= 5A High Continuous Current
R
SAT
= 30m
Ω for a Low Equivalent On-Resistance
Low Saturation Voltage V
CE(SAT)
< 65mV @ I
C
= 1A
h
FE
Specified Up to 10A for High Current Gain Hold Up
Complementary PNP Type: ZXTP2012Z
Lead-Free Finish; RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Application
Emergency
Lighting
Circuits
Motor Driving (including DC Fans)
Backlight
Inverters
Power
Switches
Gate Driving MOSFETs and IGBTs
Mechanical Data
Case:
SOT89
Case Material: Molded Plastic. “Green” Molding Compound.
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.05 grams (Approximate)
Ordering Information
(Note 5)
Product
Compliance
Marking
Reel Size (inches)
Tape Width (mm)
Quantity per Reel
ZXTN2010ZTA
AEC-Q101 851
7
12
1,000
ZXTN2010Z-13R
AEC-Q101 851
13
12
4,000
ZXTN2010ZQTA
Automotive 851
7
12
1,000
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to
Marking Information
851 = Product Type Marking Code
Green
Top View
Device Symbol
Top View
Pin Out
SOT89
C
E
C
B
C
E
B
851
