1 S E M I C O N D U C T O R S
SUMMARY
BV
CEO
= -60V : R
SAT
= 38m ; I
C
= -3.5A
DESCRIPTION
Packaged in the E-line outline this new low saturation 60V PNP transistor
offers extremely low on state losses making it ideal for use in DC-DC circuits
and various driving and power management functions.
FEATURES
•
3.5 amps continuous current
•
Up to 15 amps peak current
•
Very low saturation voltages
•
Excellent gain up to 10 amps
APPLICATIONS
•
DC - DC converters
•
MOSFET gate drivers
•
Power switches
•
Motor control
DEVICE MARKING
ZXT
P20
12
ZXTP2012A
ISSUE 2 - NOVEMBER 2005
60V PNP LOW SATURATION MEDIUM POWER TRANSISTOR IN E-LINE
DEVICE QUANTITY PER REEL
ZXTP2012ASTOA
ZXTP2012ASTZ
2,000 units / reel
2,000 units / carton
ORDERING INFORMATION
E-line

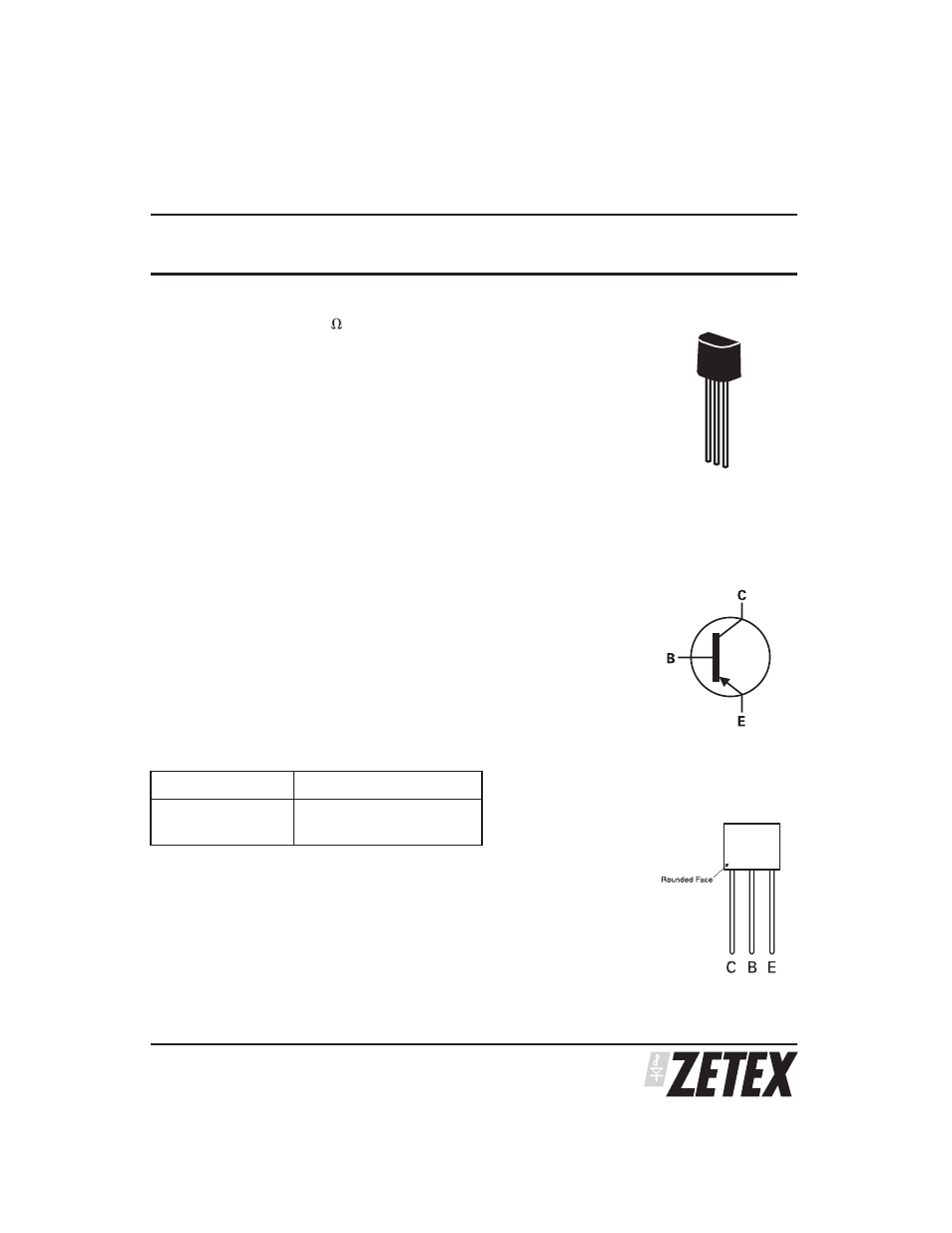

PINOUT
TOP VIEW
