ZXTN619MA
Document Number DS31892 Rev. 5 - 2
1 of 7
January 2011
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTN619MA
50V NPN LOW SATURATION TRANSISTOR
Features and Benefits
• BV
CEO
> 50V
•
I
C
= 4A Continuous Collector Current
•
Low Saturation Voltage (100mV max @ 1A)
•
R
SAT
= 68 m
Ω for a low equivalent On-Resistance
•
h
FE
specified up to 6A for high current gain hold up
•
Low profile 0.6mm high package for thin applications
•
R
θJA
efficient, 60% lower than SOT23
• 4mm
2
footprint, 50% smaller than SOT23
•
Lead-Free, RoHS Compliant (Note 1)
•
Halogen and Antimony Free. "Green" Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
DFN2020B-3
•
Case Material: Molded Plastic. “Green” Molding Compound.
•
Terminals: Pre-Plated NiPdAu leadframe.
•
Nominal Package Height: 0.6mm
•
UL Flammability Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Weight: 0.01 grams (approximate)
Applications
•
MOSFET Gate Driving
• DC–DC
Converters
• Charging
circuits
• Motor
Control
• Power
switches
Ordering Information
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXTN619MATA SC
7
8
3000
Notes:
1. No purposefully added lead.
2. Diodes Inc's "Green" policy can be found on our w
Marking Information
SC = Product Type Marking code

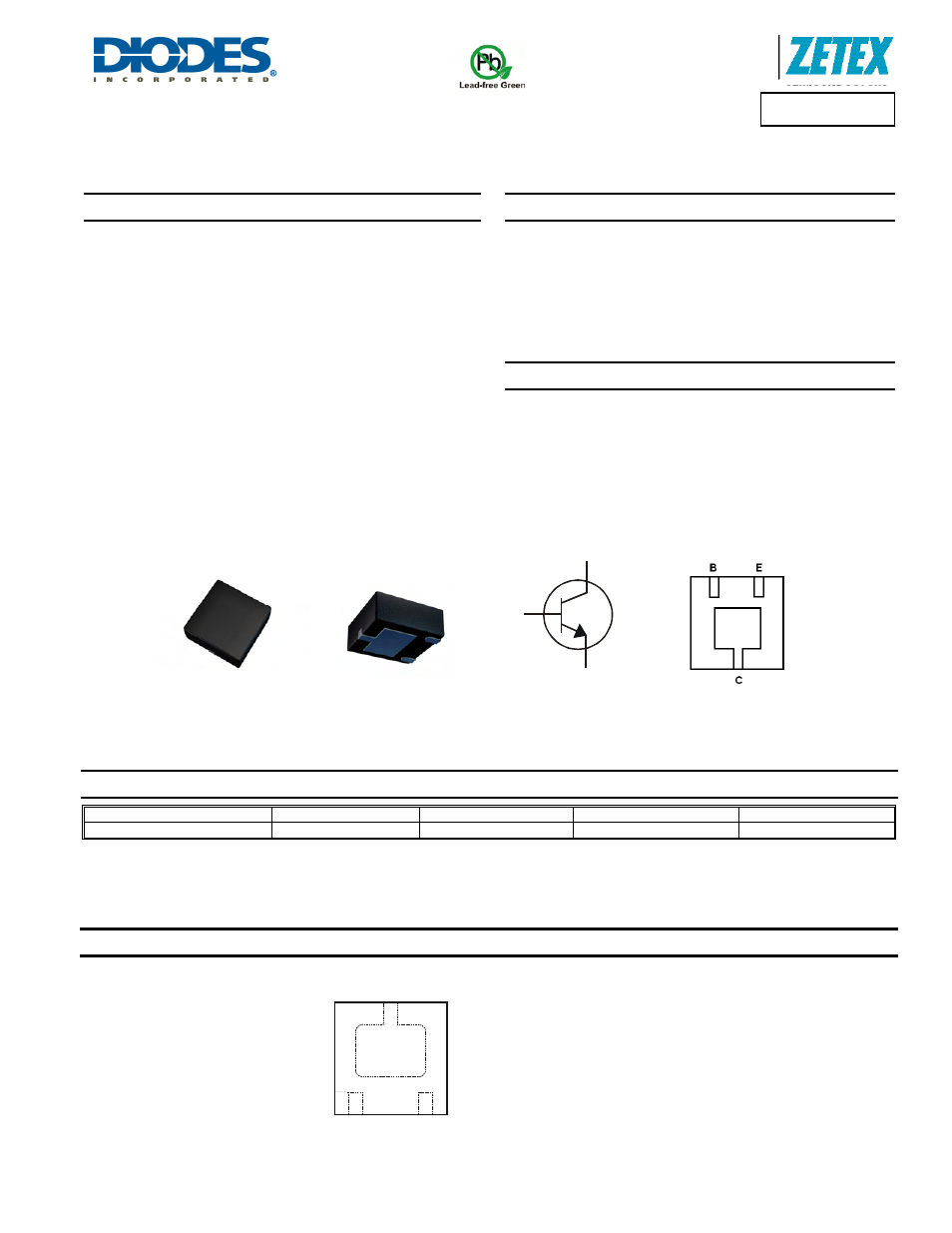

Top View
Top View
DFN2020B-3
Device Symbol
Bottom View
Pin-Out
Bottom View
C
E
B
SC
