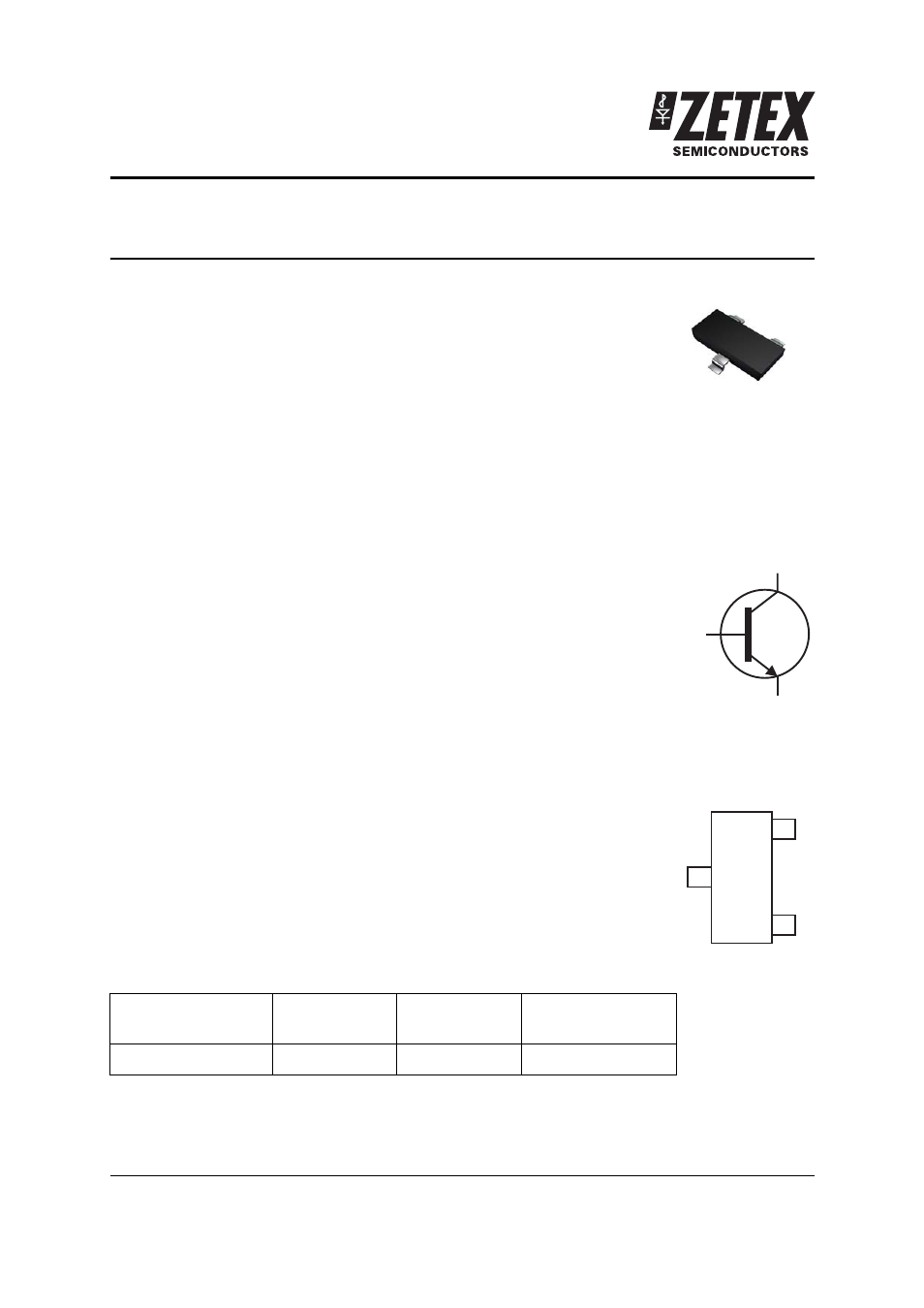

ZXTN25040DFL
40V, SOT23, NPN low power transistor
Summary
BV
CEX
> 130V
BV
CEO
> 40V
BV
ECO
> 6V
I
C(cont)
= 1.5A
V
CE(sat)
< 85mV @ 1A
R
CE(sat)
= 59m
⍀
P
D
= 350mW
Complementary part number ZXTP25040DFL
Description
Advanced process capability has been used to achieve high current gain
hold up making this device ideal for applications requiring high pulse
currents.
Features
•
High peak current
•
Low saturation voltage
•
130V forward blocking voltage
•
6V reverse blocking voltage
Applications
•
MOSFET and IGBT gate driving
•
DC-DC conversion
•
LED driving
•
Interface between low voltage IC's and loads
Ordering information
Device marking
1B7
Device
Reel size
(inches)
Tape width
(mm)
Quantity per reel
ZXTN25040DFLTA
7
8
3000
C
E
B
C
E
B
Pinout - top view
