ZXTN25040DFH
40V NPN MEDIUM POWER PLANAR TRANSISTOR IN SOT23
Features and Benefits
• BV
CEO
> 40V
•
I
C
= 4A Continuous Collector Current
•
Low Saturation Voltage V
CE(sat)
< 55mV @ 1A
•
R
CE(sat)
= 35m
Ω
•
h
FE
characterised up to 10A
• High
h
FE
min 300 @ 1A
•
1.25W power dissipation
•
130V forward blocking voltage
•
6V reverse blocking voltage
•
Complementary part number ZXTP25040DFH
•
“Lead-Free”, RoHS Compliant (Note 1)
•
Halogen and Antimony Free. “Green” Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT23
•
Case material: Molded Plastic. “Green” Molding Compound
(Note 2) UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish; Solderable per MIL-STD-202,
Method 208
•
Weight: 0.008 grams (Approximate)
Applications
•
MOSFET gate drivers
• Power
switches
• Motor
control
• DC
fans
• DC-DC
converters
Ordering Information
(Note 3)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXTN25040DFHTA 1A4
7
8
3,000
Notes:
1. No purposefully added lead.
2. Diodes Inc‘s “Green” Policy can be found on our websit
Marking Information
1A4 = Product Type Marking Code

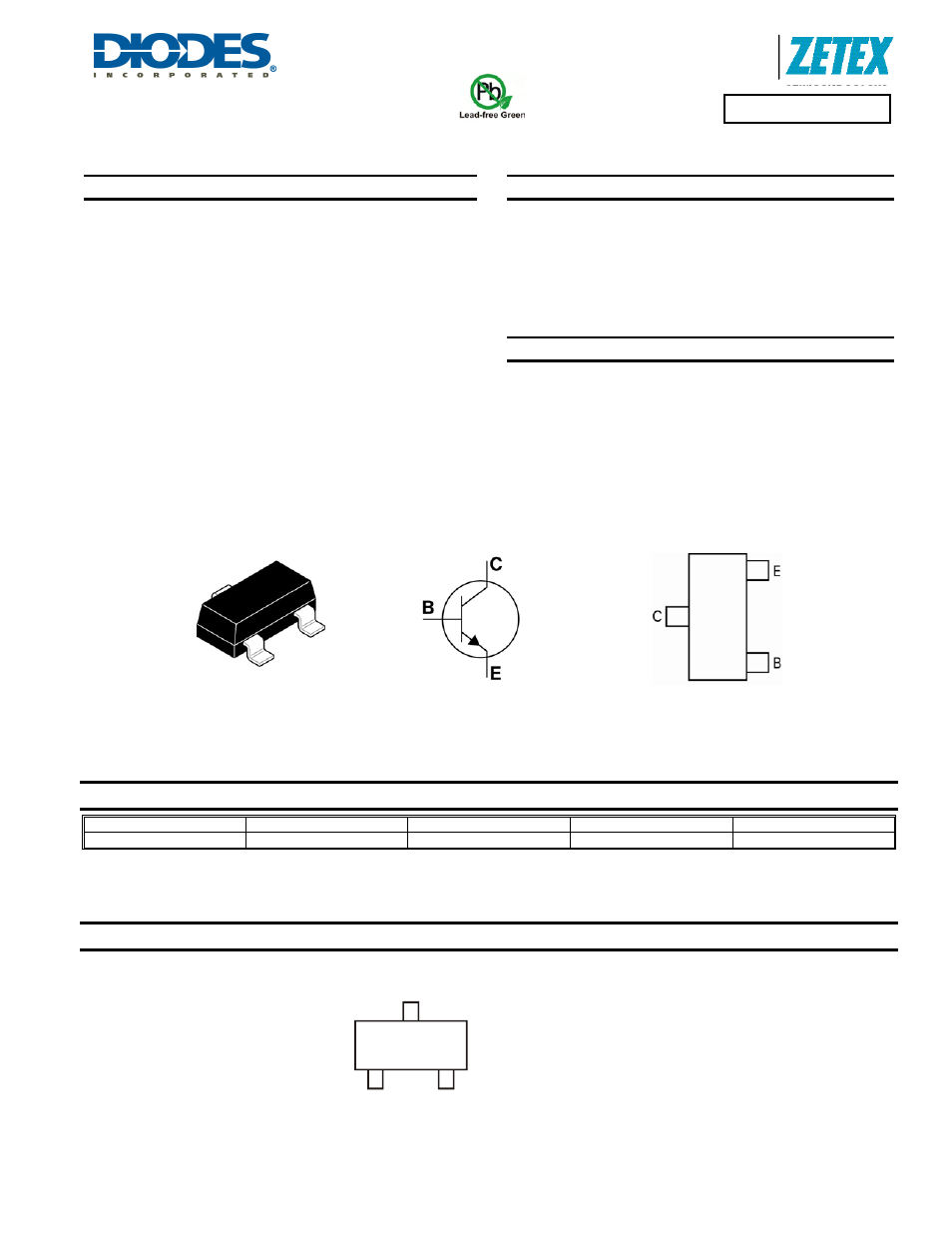

SOT23
Device Symbol
Top View
Pin Configuration
Top View
1A4
