ZXTC6719MC

DUAL 50V NPN & 40V PNP LOW SATURATION TRANSISTOR COMBINATION

Features and Benefits

NPN Transistor

• BV

CEO

> 50V

I

C

= 4A Continuous Collector Current

Low Saturation Voltage (100mV max @ 1A)

R

SAT

= 68m

Ω for a low equivalent On-Resistance

PNP Transistor

• BV

CEO

> -40V

I

C

= -3A Continuous Collector Current

Low Saturation Voltage (-220mV max @ -1A)

R

SAT

= 104m

Ω for a low equivalent On-Resistance

h

FE

characterized up to 6A for high current gain hold up

Low profile 0.8mm high package for thin applications

R

θJA

efficient, 40% lower than SOT26

• 6mm

2

footprint, 50% smaller than TSOP6 and SOT26

Lead-Free, RoHS Compliant (Note 1)

Halogen and Antimony Free. “Green” Device (Note 2)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

• Case:

DFN3020B-8

Case material: Molded Plastic. “Green” Molding Compound.

Terminals: Pre-Plated NiPdAu leadframe.

Nominal package height: 0.8mm

UL Flammability Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Weight: 0.013 grams (approximate)

Applications

DC – DC Converters

• Charging

circuits

• Power

switches

• Motor

control

CCFL Backlighting circuits

• Portable

applications



















Ordering Information

(Note 3)

Product

Marking

Reel size (inches)

Tape width (mm)

Quantity per reel

ZXTC6719MCTA DC3

7

8

3000

Notes:

1. No purposefully added lead.
2. Diodes Inc’s “Green” Policy can be found on our website at http://www.diodes.com
3. For Packaging Details, go to our website at http://www.diodes.com.




Marking Information












DC3 = Product type Marking Code
Dot denotes Pin 1

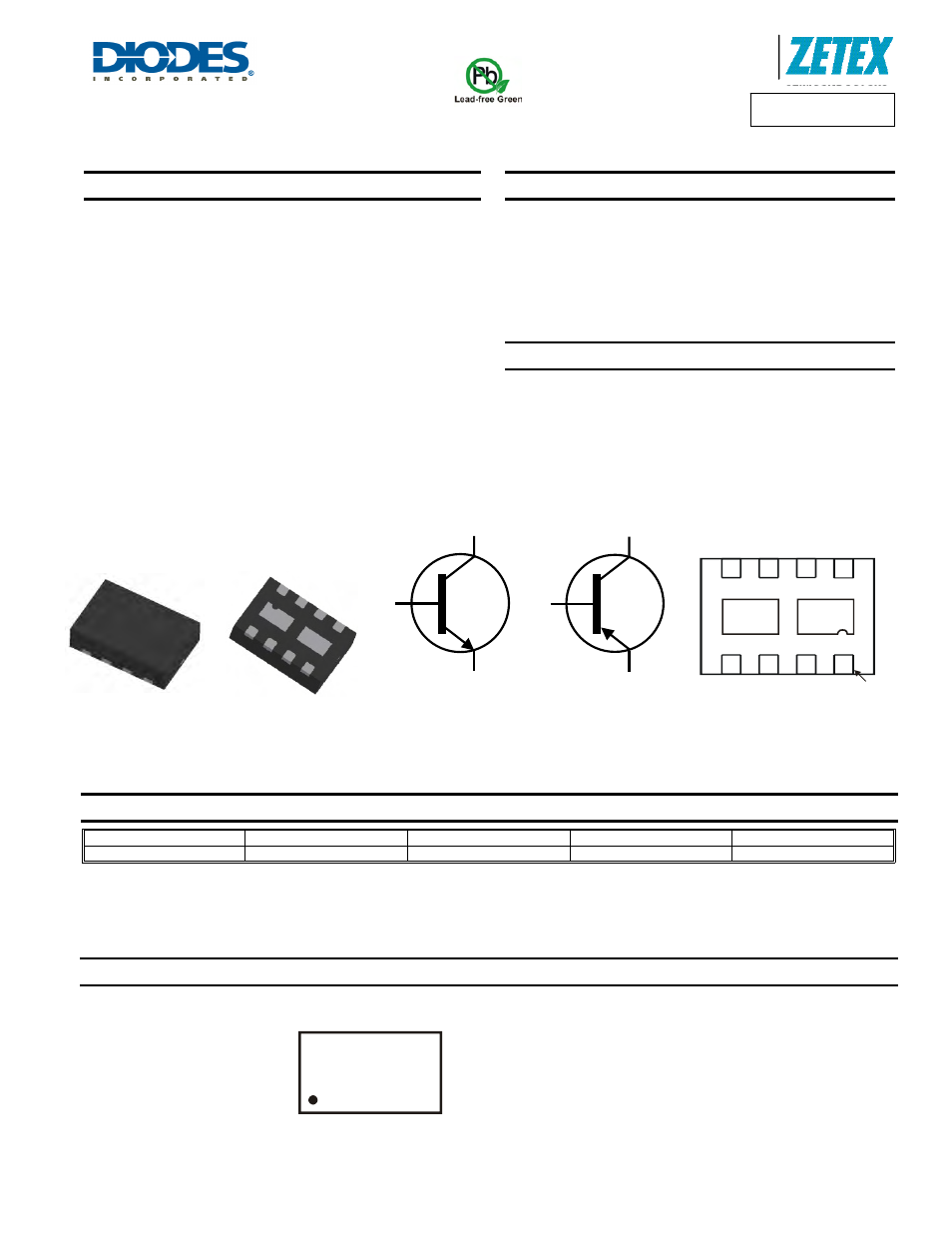

Equivalent Circuit

Top View

Bottom View

DFN3020B-8

NPN Transistor

PNP Transistor

C2

E2

B2

C1

E1

B1

C2

C2

C1

C1

E2

B2

E1

B1

C1

C2

Pin 1

Bottom View

Pin Out

DC3
