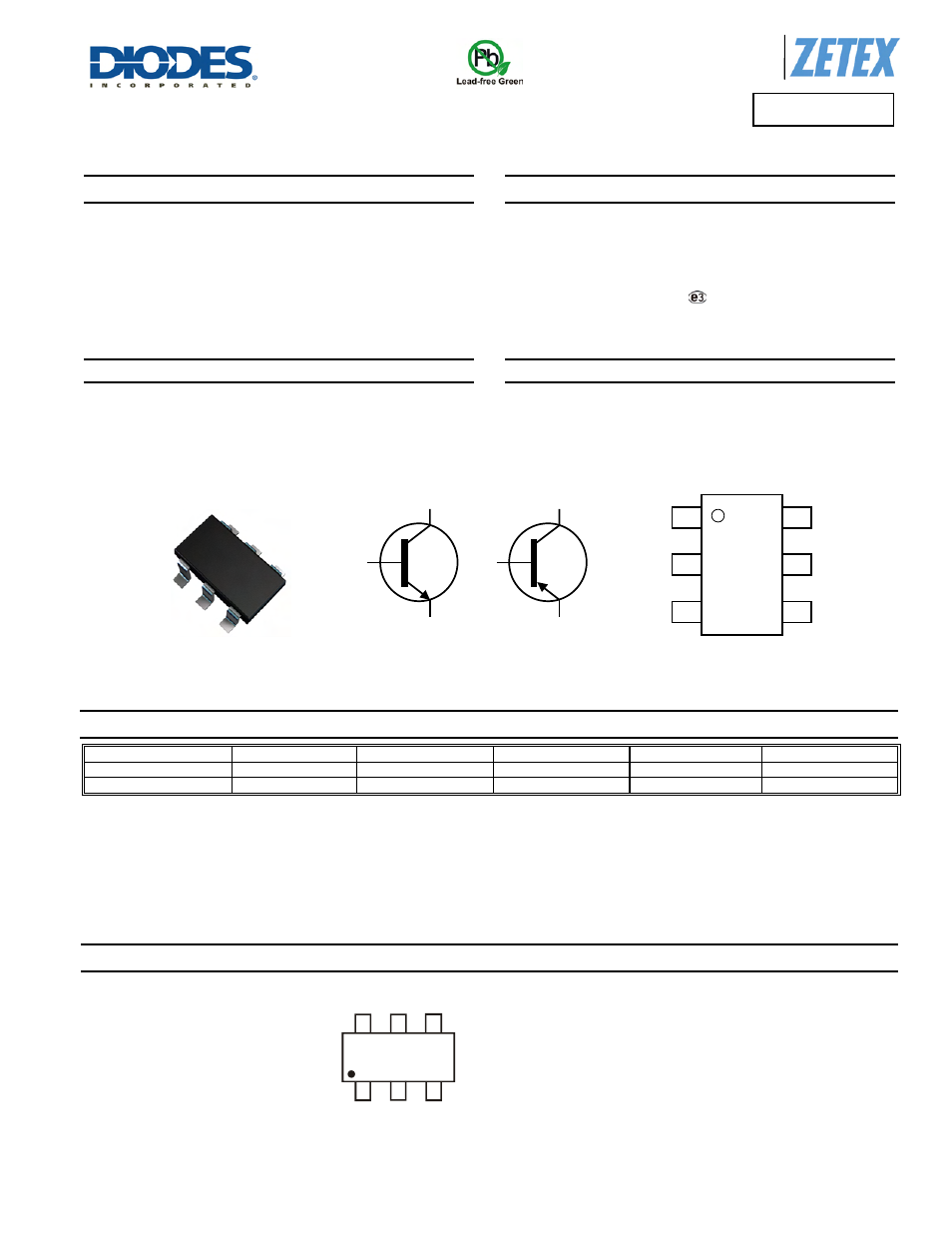

Diodes ZXTC2045E6 User Manual
Features, Mechanical data, Ordering information
ZXTC2045E6
Document Number: DS33645 Rev: 2 - 2
1 of 6
November 2012
© Diodes Incorporated
ZXTC2045E6
ADVAN
CE I
N
F
O
RM
ATI
O
N
A Product Line of
Diodes Incorporated
30V COMPLEMENTARY MEDIUM POWER TRANSISTOR IN SOT26
Features
•
NPN + PNP combination
• BV
CEO
> 30 (-30)V
• BV
CEV
> 40 (-40)V
•
I
CM
= 5 (-5)A Peak Pulse Current
•
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
•
PPAP capable (Note 4)
Description
Advanced process capability has been used to achieve this high
performance device. Combining NPN and PNP transistors in the
SOT26 package provides a compact solution for the intended
applications.
Mechanical Data
• Case:
SOT26
•
Case Material: molded plastic, “Green” molding compound
•
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
•
Weight: 0.015 grams (approximate)
Applications
•
MOSFET and IGBT gate driving
• Motor
drive
Ordering Information
(Notes 4 & 5)
Product
Compliance
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXTC2045E6TA
AEC-Q101 2045
7
8
3,000
ZXTC2045E6QTA
Automotive 2045
7
8
3,000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen and Antimony free, "Green" and Lead-Free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified.
5. For packaging details, go to our website at
Marking Information
2045 = Product Type Marking Code
Top View
Device Symbol
SOT26
Top View
Pin-Out
C1
E1
B1
C2
E2
B2
Q1
Q2
C1
B1
C2
E1
B2
E2
2045
