ZXT690BK
45V NPN HIGH GAIN MEDIUM POWER TRANSISTOR
Features
• BV
CEO
> 45V
•
I
C
= 3A high Continuous Collector Current
•
I
CM
= 6A Peak Pulse Current
•
High gain device >400 @1A
•
R
CE(sat)
= 77mΩ for low equivalent On-Resistance
•
h
FE
specified up to 6A for a high gain hold up
•
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
•
PPAP capable (Note 4)
Mechanical Data
•
Case: TO252 (DPAK)
•
Case Material: Molded Plastic, "Green" Molding Compound.
•
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish - Matte Tin Plated Leads; Solderable per MIL-
STD-202, Method 208
•
Weight: 0.34 grams (approximate)
Applications
•
DC - DC Converters
• Power
Switches
•
IGBT & MOSFET Gate Drivers
• Motor
Control
• Automotive
Circuits
• Siren
Drivers
Ordering Information
(Note 5)
Product
Compliance
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXT690BKTC AEC-Q101 ZXT690B
13
16
2,500
ZXT690BKQTC Automotive ZXT690B
13
16
2,500
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to
5. For packaging details, go to our website at

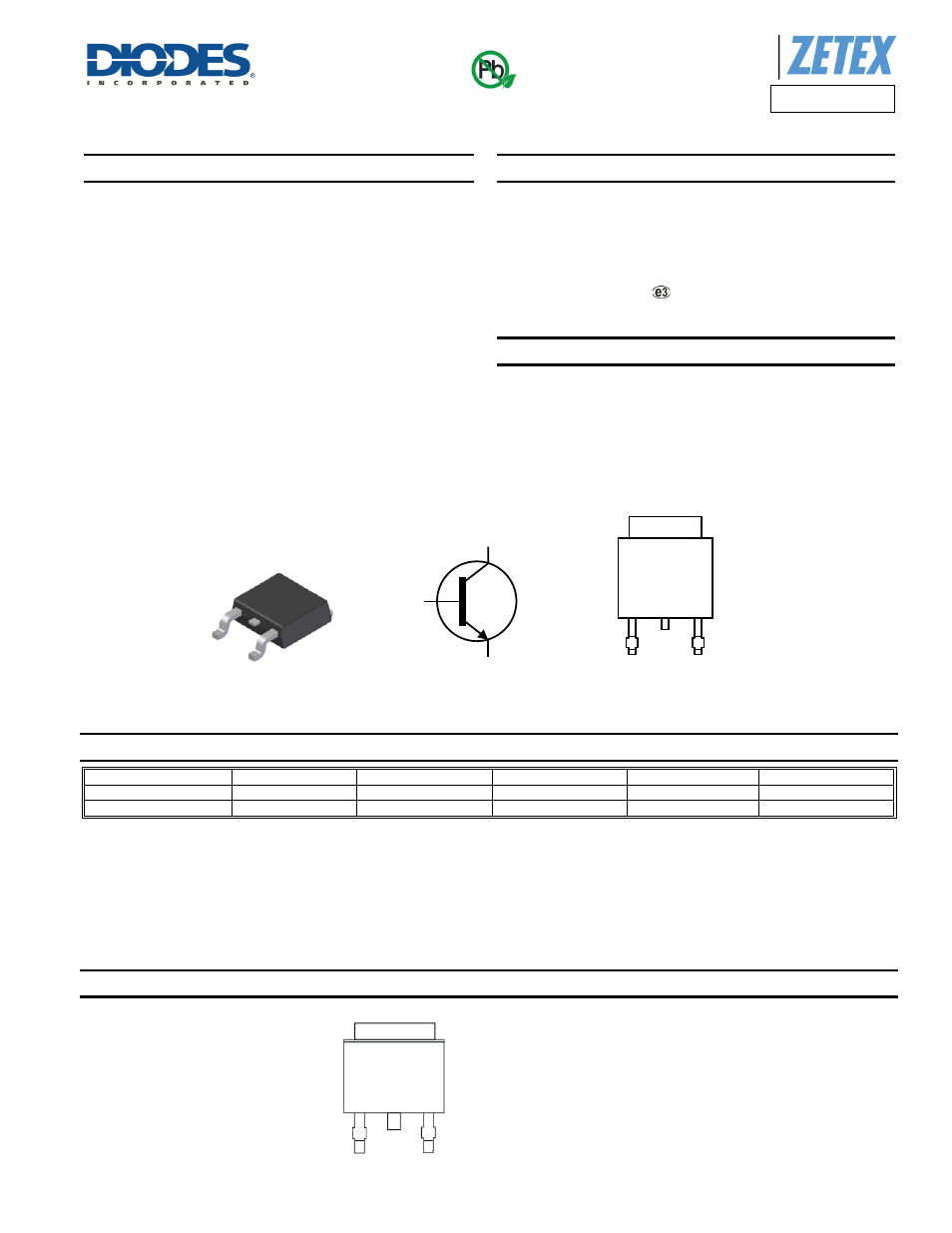

Marking Information
Top View
Package Pin
Configuration
Equivalent Circuit
C
E
B
B
E
C
C
ZXT
690B
TO252
Green
ZXT
690B
YYWW
ZXT690B = Product Type Marking Code
YYWW = Date Code Marking
YY = Last Digit of Year (ex: 13 = 2013)
WW = Week Code (01 – 53)
