Diodes ZXT13P40DE6 User Manual
Features, Mechanical data, Applications
ZXT13P40DE6
Document Number: DS33639 Rev: 4 - 2
1 of 7
May 2014
© Diodes Incorporated
ADVAN
CE I
N
F
O
RM
ATI
O
N
ZXT13P40DE6
A Product Line of
Diodes Incorporated
40V PNP LOW SATURATION SWITCHING TRANSISTOR IN SOT26
Features
• BV
CEO
> -40V
•
I
C
= -3A Max Continuous Collector Current
•
I
CM
= -10A Peak Pulse Current
•
R
CE(SAT)
= 58mΩ for a low equivalent On-Resistance
•
Low Saturation Voltage (-200mV max @ 1A)
•
h
FE
characterized up to -5A for high current gain hold up
•
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
•
PPAP capable (Note 4)
Mechanical Data
• Case:
SOT26
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-
STD-202, Method 208
•
Weight: 0.015 grams (approximate)
Applications
•
DC - DC Converters
•
Power Management Functions
• Power
Switches
• Motor
Control
Ordering Information
(Notes 4 & 5)
Product
Compliance
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXT13P40DE6TA
AEC-Q101 P40D
7
8 3,000
ZXT13P40DE6QTA Automotive
P40D
7
8
3,000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to
5. For packaging details, go to our website at
Marking Information
P40D = Product Type Marking Code

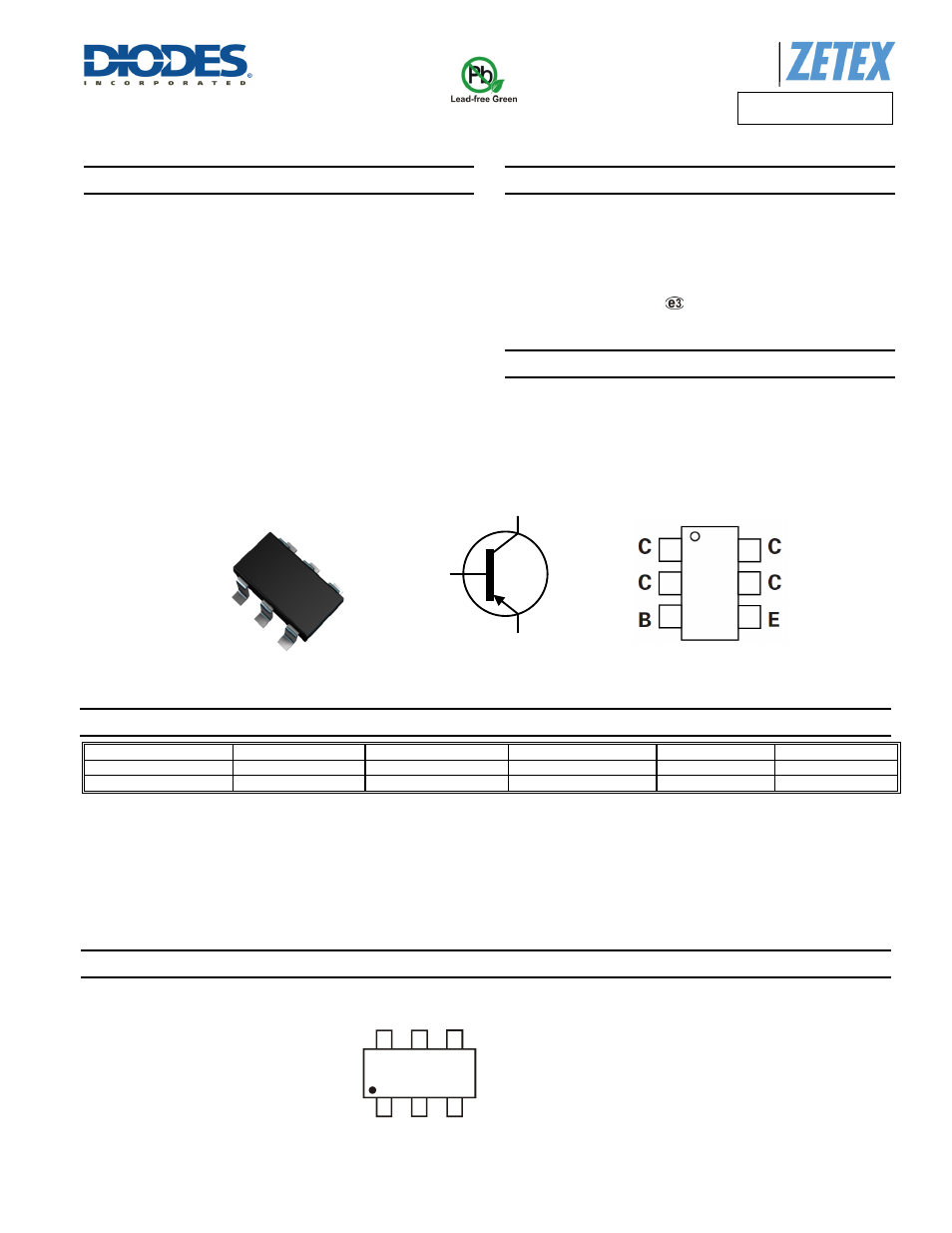

Top View
Device Symbol
SOT26
Pin-Out Top
P40D
C
E
B
