ZXT13N50DE6
A Product Line of
Diodes Incorporated
50V NPN LOW SATURATION SWITCHING TRANSISTOR
Features
BV
CEO
> 50V
I
C
= 4A Continuous Collector Current
I
CM
= 10A Peak Pulse Current
R
CE(SAT)
= 36mΩ for a Low Equivalent On-Resistance
Low Saturation Voltage (100mV max @ 1A)
h
FE
Characterized up to 10A
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)

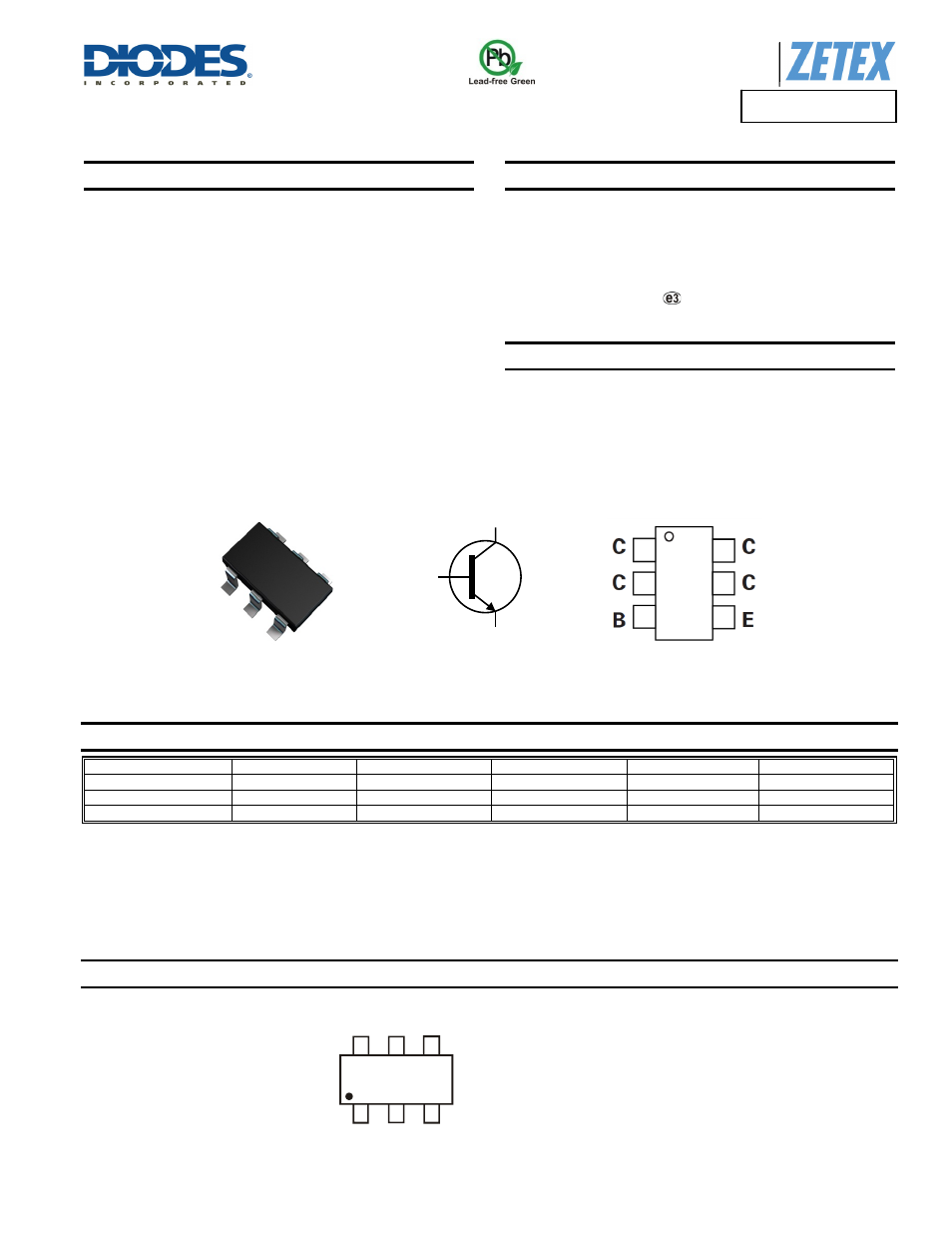

Mechanical Data
Case:
SOT26
Case Material: Molded Plastic, “Green” Molding Compound
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-
STD-202, Method 208
Weight: 0.015 grams (approximate)
Applications
DC–DC
Converters
Power Management Functions
Power
Switches
Motor
Control
Ordering Information
(Notes 4 & 5)
Product
Compliance
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXT13N50DE6TA
AEC-Q101 N50D
7
8
3,000
ZXT13N50DE6TC AEC-Q101
N50D
13
8
10,000
ZXT13N50DE6QTA
Automotive N50D
7
8
3,000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to
Marking Information
N50D = Product Type Marking Code
Top View
Device Symbol
SOT26
Top View
Pin-Out
N50D
C
E
B
